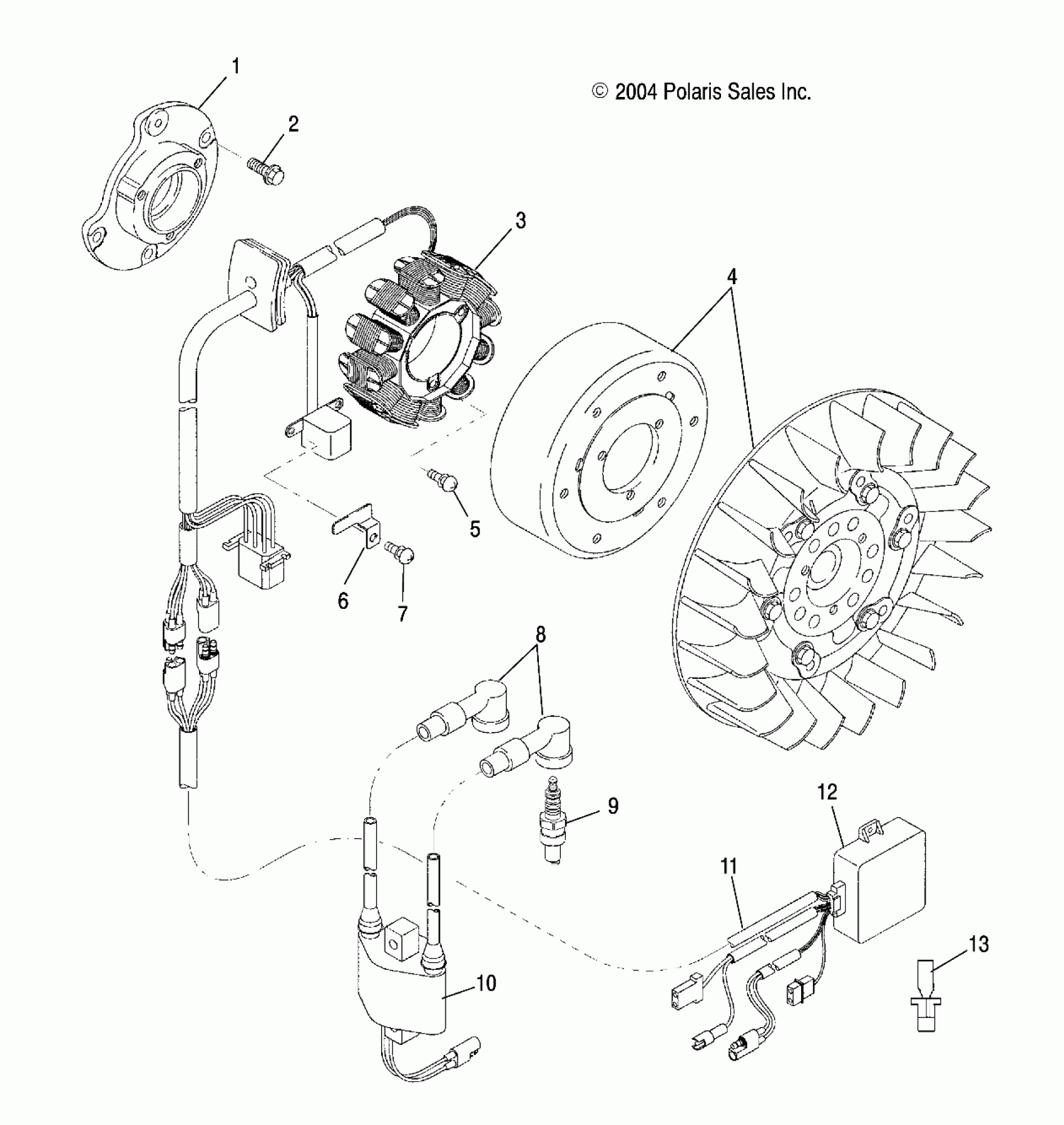

Polaris 340 CLASSIC - S05ND3AS MAGNETO - S05ND3AS (4992629262C09) Diagram

#

Description
Price

1

Plate, Magneto

3089477

$181.59

2

BOLT, FLANGE

3089476

Unavailable

3

Asm., Stator

3089472

Unavailable

4

Asm., Flywheel

3089475

$464.99

5

ASM., SCREW AND WASHER

3085697

$2.39

6

Clamp

3089479

$2.24

7

ASM., SCREW AND WASHER

3085698

$2.39

8

Cap, Spark Plug

4020129

$9.70

9

Plug, Spark, NGK BR8ES

3070156

$3.99

10

Asm., Ignition Coil [Incl. 8]

3089478

Unavailable

10

Asm., Unit, Ignition Coil

3087216

Unavailable

11

Unit, Harness

3087219

$246.89

12

Asm., CDI System [Incl. 11]

3089473

$514.27

13

Jumper, Stubber

2461060

$8.99
