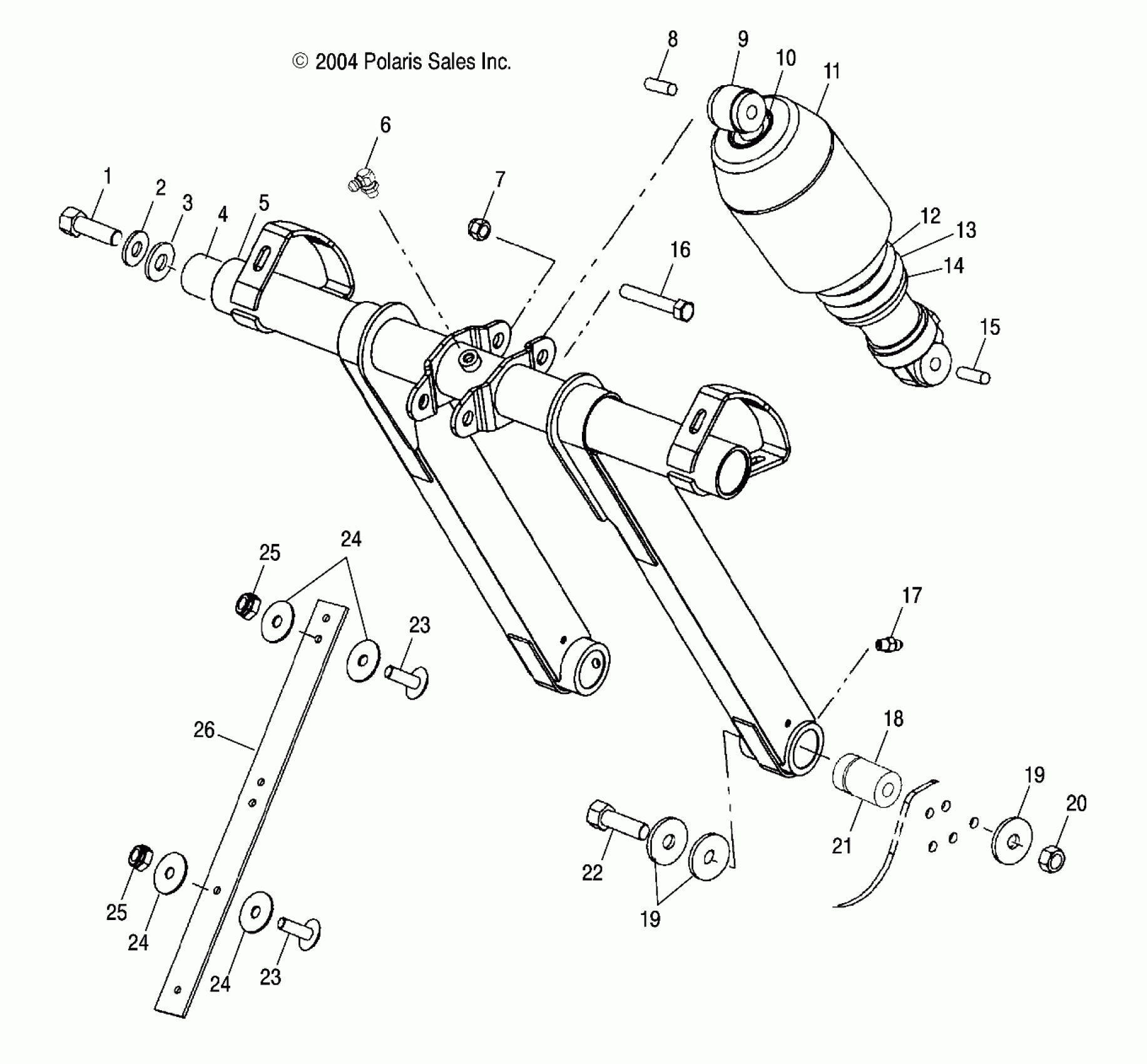

Polaris 340 CLASSIC - S05ND3AS FRONT TORQUE ARM - S05ND3AS (4992629262B09) Diagram

#

Description
Price

1

Screw

7517435

$14.99

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

Shaft

5132067

$59.52

5

Arm, Torque, Front, Black

1541779-067

Unavailable

6

Fitting, 90 Degree

7080510

$5.59

7

Nut, Nylok

7542439

$1.49

8

SLEEVE

5333905

$15.99

9

Shock, Front Track

7041939

Unavailable

10

Retainer, Slotted Spring

5630580

Unavailable

11

SHIELD, SPRING

5430671

$24.27

12

Spring, Compression

7041253-067

$95.22

13

RETAINER, SPRING

5245067

$23.99

14

RETAINER, SPRING

5210953

$6.39

15

SLEEVE

5333906

$15.99

16

Screw

7515415

$1.49

17

FITTING-LUBRICATION 1/4-28

7080424

$4.79

18

Shaft

5133308

$11.90

19

WASHER

7556156

$4.79

19

WASHER

7556156

$4.79

20

Nut, Nylok

7547066

$1.59

21

O-Ring

5412022

Unavailable

22

Screw

7512597

$4.99

23

SCREW

7517313

$4.79

23

SCREW

7517313

$4.79

24

Washer, Flat

7556175

$5.99

24

Washer, Flat

7556175

$5.99

24

Washer, Flat

7556175

$5.99

25

NUT, NYLOK

7542344

$3.99

25

NUT, NYLOK

7542344

$3.99

26

Strap, Limiter

5412140

$36.41
