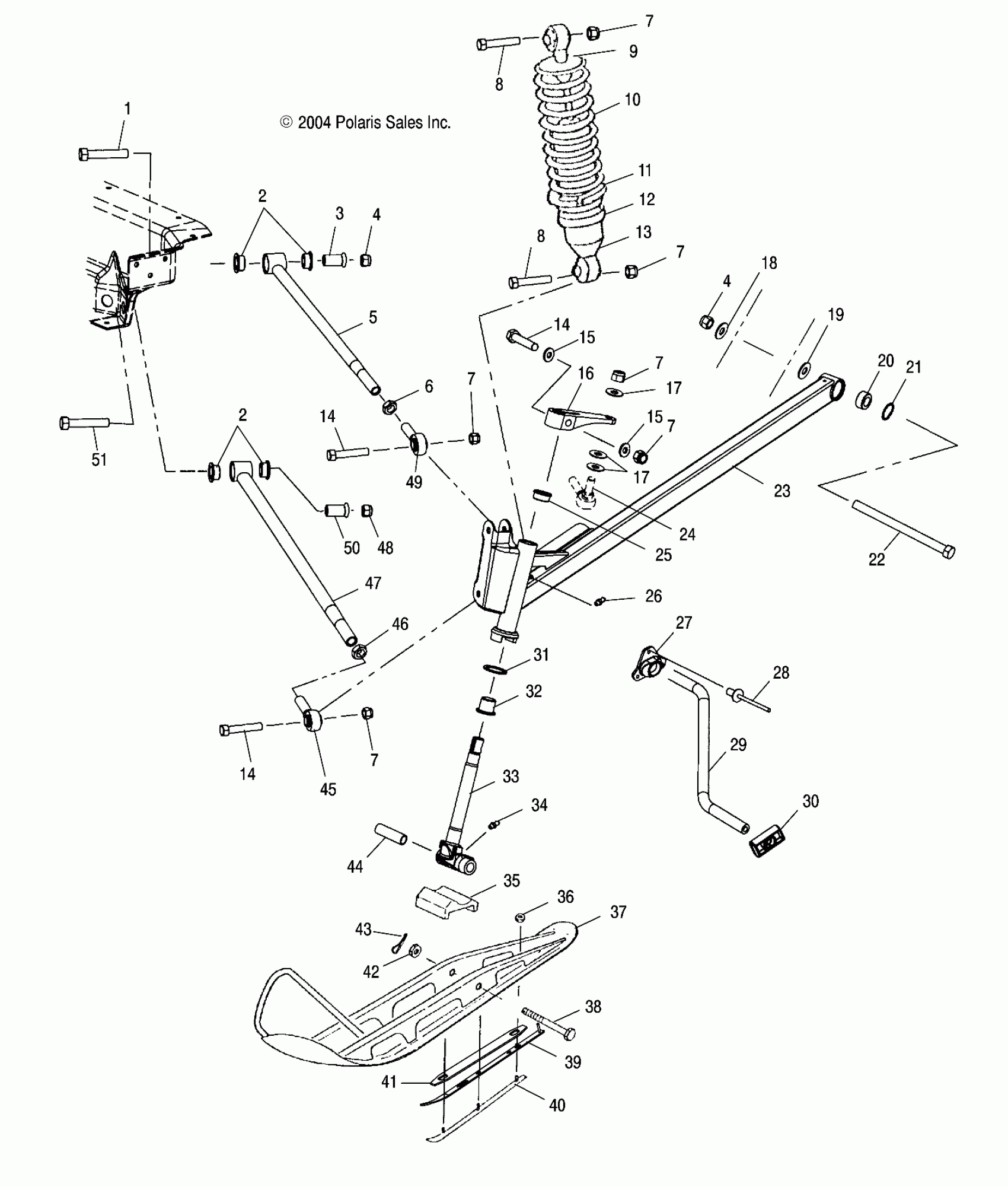

Polaris 340 CLASSIC - S05ND3AS FRONT SUSPENSION and SKI - S05ND3AS (4992629262A13) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

Bushing, Pivot, Inner

5434036

$14.99

2

Bushing, Pivot, Inner

5434036

$14.99

3

Bushing, Shoulder

5132779

$11.99

4

Nut, Nylok

7547066

$1.59

4

Nut, Nylok

7547066

$1.59

5

Rod, Radius, Upper

1820679-385

Unavailable

6

Nut, Jam

7542520

$2.39

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515433

$1.59

8

Screw

7515433

$1.59

9

Retainer, Spring, Slotted

5630580

Unavailable

10

Spring, Compression

7041551-067

$74.99

11

Ring, Spring Preload

5431734

$52.60

12

Retainer, Threaded

1500063

$44.51

13

Shock

7041932

Unavailable

14

SCREW

7517583

$4.35

14

SCREW

7517583

$4.35

14

SCREW

7517583

$4.35

15

WSHR-.813X.406X.105-Y

7555832

$2.39

15

WSHR-.813X.406X.105-Y

7555832

$2.39

16

Arm, Steering

5132728

$79.99

17

Washer, Flat

7555797

$3.99

17

Washer, Flat

7555797

$3.99

18

WASHER, FLAT

7555820

$3.99

19

Cup, Trailing Arm Mount

5132364

$20.22

20

Bearing, Spherical

7061042

$31.99

21

Ring, Retaining

7710437

$3.19

22

Screw

7512099

$19.99

23

Asm., Trailing Arm, Cloud Silver, LH [Incl. 20,21]

1821165-385

Unavailable

23

Asm., Trailing Arm, Cloud Silver, RH [Incl. 20,21]

1821166-385

Unavailable

24

ROD END [SEE STEERING PG B2, REF 1]

-------

Unavailable

25

Bushing

3573909

$2.39

26

Fitting, Lubrication

7080433

$1.49

27

Bushing, Torsion Bar

5433234

$23.99

28

Rivet

7621452

$1.49

29

Bar, Torsion

5244415-067

Unavailable

30

Slide, Torsion Bar

5434369

Unavailable

31

Bushing

7556509

$1.59

32

BUSHING, FLANGED

3574208

$3.19

33

Shaft, Spindle

6230225-067

$219.99

34

Fitting, Lubrication

7080306

$3.19

35

Stop, Rubber

5411083

$12.94

36

NUT-5/16-18 NYLOK-Y

7542324

$1.49

37

Ski

1820430-067

Unavailable

38

Screw

7515462

$8.79

39

Plate, Skag

1011829-067

$54.99

39

Kit, Carbide, 3 Inch, Easy Steer [Incl. Skag and Plate]

2870976

Unavailable

40

Skag

1820318-067

$49.99

41

Shim, Skag Plate

5245145-067

Unavailable

42

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

43

Pin, Cotter

7661209

Unavailable

44

Bushing

5010158

$19.99

45

Rod End

7061060

$48.56

46

Nut

7542711

$2.39

47

Rod, Radius, Lower

1820677-385

$104.99

48

Nut, Nylok

7547065

$3.99

49

Rod End

7061061

$48.56

50

Bushing, Shoulder

5132780

$7.99

51

Bolt

7512684

Unavailable
