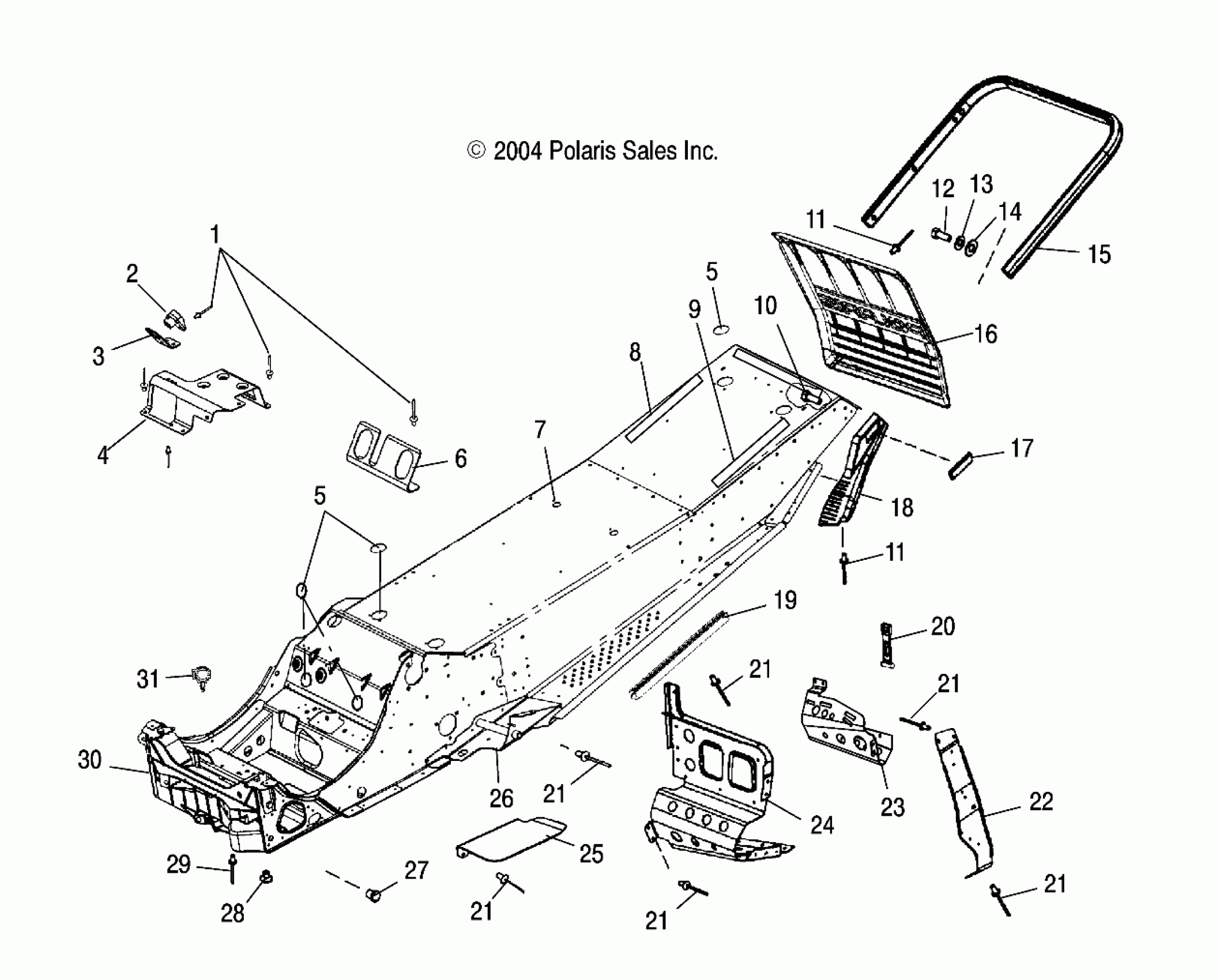

Polaris 340 CLASSIC - S05ND3AS CHASSIS - S05ND3AS (4992629262A03) Diagram

#

Description
Price

-

Asm., Chassis

1014086-067

Unavailable

1

Rivet

7621432

$1.49

2

Guide Rope

5431385

$10.51

3

Brkt Rope Guide

5222687-067

$59.99

4

Brkt Oil Tank Hose Support

5246330

$13.19

5

Caplug

7080934

$1.83

5

Caplug

7080934

$1.83

6

Brkt Airbox Edge

5246177

$18.23

7

Caplug

7080592

Unavailable

8

Gasket Seat Base

5812290

$1.49

9

Gasket Seat Base

5812360

$1.83

10

Screw

7517441

$2.39

11

RIVET

7621472

$1.49

11

RIVET

7621472

$1.49

12

SCREW

7512232

$1.49

13

WASHER, SPRING LOCK

7552801

$1.59

14

Washer, Flat

7558301

$1.49

15

Bumper, Rear

2632165-309

Unavailable

16

Flap, Snow

5433961-1038

Unavailable

17

Reflector, Red

2670133

$5.75

18

Asm., Snow Skirt/Reflector, LH

2632443-070

$64.75

18

Asm., Snow Skirt/Reflector, RH

2632444-070

$55.99

19

Brace, Tunnel Roll

5245118-067

$22.23

20

STRAP-AIRBOX TOP

5433150

$24.27

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

22

Support, Footrest, LH

5246310-067

$19.68

22

Support, Footrest, RH

5246311-067

Unavailable

23

Mount, Console, Toe Clip, LH

5245457-067

Unavailable

23

Mount, Console, Toe Clip, RH

5245458-067

Unavailable

24

Footrest, LH

5245288-067

Unavailable

24

Footrest, RH

5247205-067

Unavailable

25

Guard, Belt

5246066

Unavailable

26

Kit, Trailing Arm Mount, LH

2202059

$213.00

26

Kit, Trailing Arm Mount, RH

2202598

$124.99

27

PLUG, HOLE

7080416

$5.65

28

Plug Hole

7081076

$3.22

29

Rivet

7661130

$1.49

30

Bulkhead Front

5132292

$115.99

31

CLIP, ROSEBUD

4020139

$4.79
