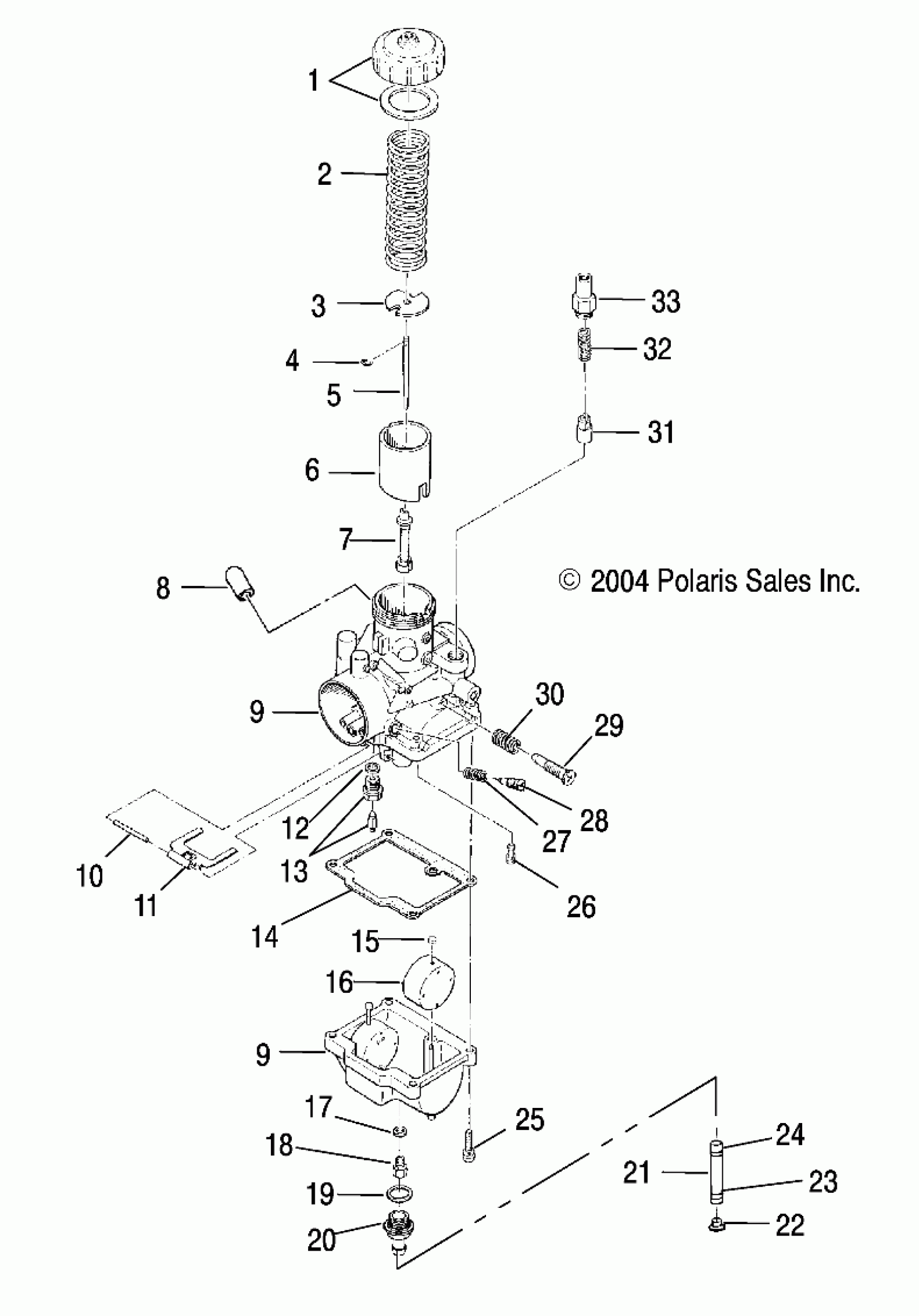

Polaris 340 CLASSIC - S05ND3AS CARBURETOR - S05ND3AS (4992629262C10) Diagram

#

Description
Price

1

Asm., Mixing Chamber Top [Incl. Gasket]

3131516

$18.23

2

Spring, Throttle

3130354

$28.32

3

Plate, Throttle

3130002

$20.22

4

E-RING

3130508

$6.46

5

Needle, Jet [5DP13]

3131466

Unavailable

6

Valve, Throttle, 2.5

3130468

$36.41

7

Needle Jet, 0-6, 169

3130469

$32.37

8

CAP

3130479

$14.56

9

Asm., Carburetor [Incl. 1-20,25-33]

3131465

Unavailable

9

Asm., Carburetor [Incl. 1-20,25-33]

3131465

Unavailable

10

PIN, FLOAT

3130361

$8.89

11

Arm, Float

3130018

$24.27

12

Packing, Needle Valve

3130017

$4.03

13

Valve, Needle, 1.5

3131146

$48.56

14

Gasket, Float Chamber

3130020

$16.17

15

Cap

3130237

$4.03

16

Asm., Float

3130021

$40.46

17

WASHER

3130014

$1.59

18

Main Jet, #170

3130117

$24.99

19

O-RING

3130239

Unavailable

20

NIPPLE

3130573

$32.37

21

Line, Fuel

8450045-153

$99.99

22

Plug, Trap

5431893

$12.94

23

Clamp, Hose

7080544

Unavailable

24

Clamp, Hose

7080534

$1.59

25

Asm., Screw and Washer

3130025

$3.19

26

Pilot Jet, #35

3130066

$8.89

27

Spring, Air Adjuster

3130012

$8.89

28

Screw, Air

3130011

$19.99

29

Screw, Throttle Stop

3130324

$19.84

30

SPRING, THROTTLE ADJUSTER

3130010

$8.89

31

Asm., Plunger

3130328

$32.37

32

Spring, Plunger

3130006

$8.89

33

Cap, Plunger

3130359

$14.56
