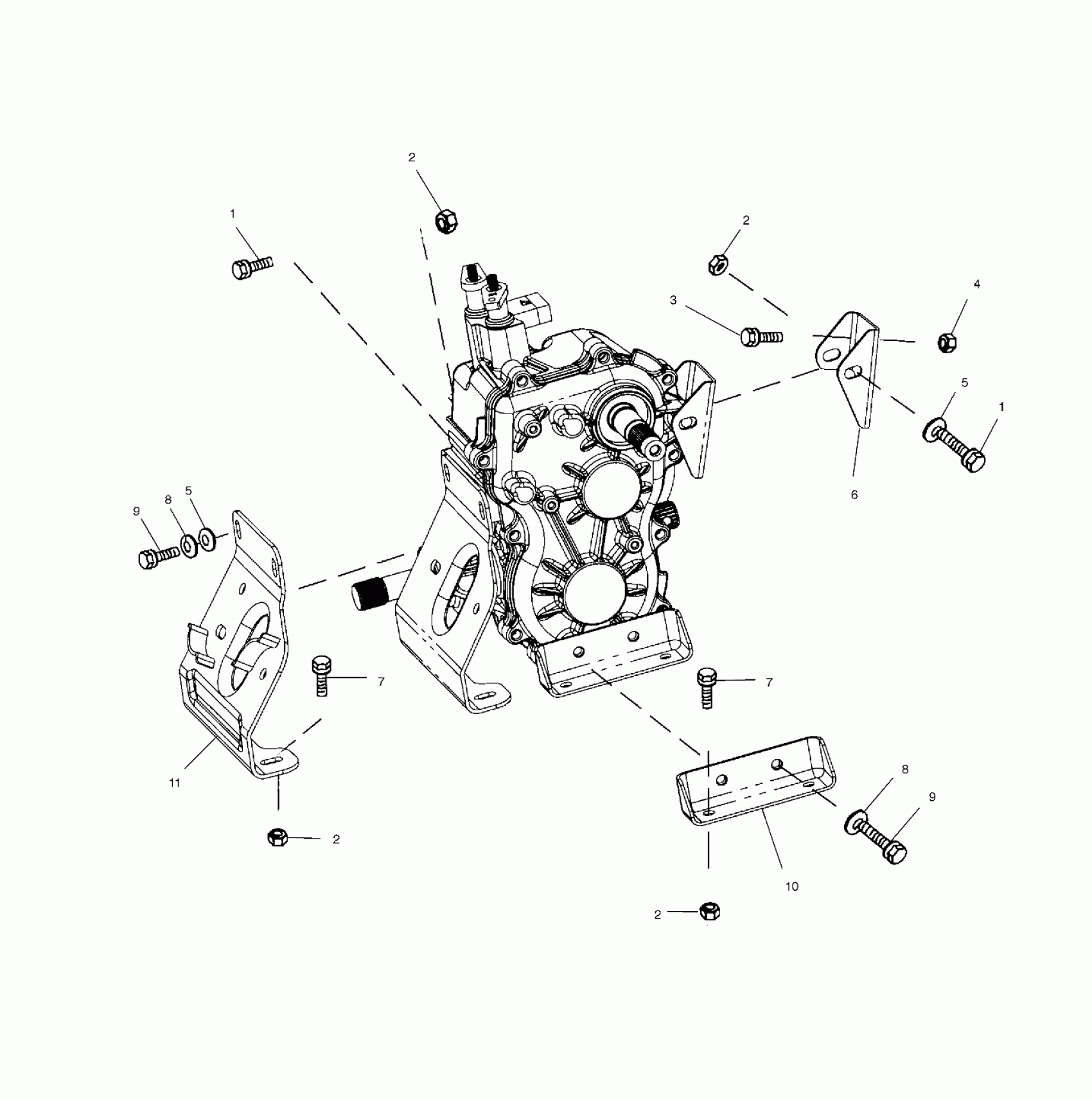

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB TRANSMISSION MOUNTING - A02CD32AA/AB/AC/FB (4970147014D05) Diagram

#

Description
Price

-

Asm., Main Gearcase [See Main Gearcase Pg. C14 for Details]

----

Unavailable

1

SCREW

7515417

$4.76

1

SCREW

7515417

$4.76

2

NUT, FLANGE LOCK

7547108

$4.76

2

NUT, FLANGE LOCK

7547108

$4.76

2

NUT, FLANGE LOCK

7547108

$4.76

2

NUT, FLANGE LOCK

7547108

$4.76

3

SCREW

7515398

$2.38

4

Nut, Flange

7542321

$1.19

5

Washer, Flat

7555976

$3.97

5

Washer, Flat

7555976

$3.97

6

Mount, Rear Transmission

5242819-067

Unavailable

7

Screw

7517289

$3.29

7

Screw

7517289

$3.29

8

Washer, Spring Lock

7552603

$0.79

8

Washer, Spring Lock

7552603

$0.79

9

Bolt

7515522

$3.97

9

Bolt

7515522

$3.97

10

Mount, Transmission

5242820-067

$7.38

11

Mount, Engine,Rear [See Engine Mounting Pg. B4, Ref. 15]

----

Unavailable
