Description

Price

1

O-Ring

5412022

Unavailable

2

Hub, Wheel, 4WD

5131935

Unavailable

3

Stud

7515523

$3.19

4

Disc, Brake

5244882

$94.99

5

Washer, Spring Lock

7552603

$1.49

5

Screw

7515481

$2.63

5

ASM., BRAKE CALIPER [SEE REAR BRAKE PG. A10 FOR DETAILS]

-------

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

7

WASHER

7555721

$1.49

7

WASHER

7555721

$1.49

8

Nut, FLEXLOC

7542703

Unavailable

9

Cap, Pivot, Swing Arm

5411532

Unavailable

9

Cap, Pivot, Swing Arm

5411532

Unavailable

10

Nut, Jam

5131863

Unavailable

11

Pivot, Threaded

5131864

Unavailable

12

Seal, Pivot, Swing Arm

3610072

Unavailable

12

Seal, Pivot, Swing Arm

3610072

Unavailable

13

Bearing, Tapered Roller Cone

3554506

$31.99

13

Bearing, Tapered Roller Cone

3554506

$31.99

14

Bearing, Tapered Roller Cup

3554507

$31.99

14

Bearing, Tapered Roller Cup

3554507

$31.99

15

Seal, Pivot, Swing Arm

5411602

Unavailable

15

Seal, Pivot, Swing Arm

5411602

Unavailable

16

Asm., Swing Arm [Incl. 14,15]

1541577

$243.16

17

Fitting, Lubrication

7080433

$1.49

17

Coupling, Prop Shaft, Greased

5132201

$59.99

18

O-RING

5411092

$1.60

18

O-RING

5411092

$1.60

19

Asm., Prop Shaft, Rear

1380137

$204.99

20

Pivot, Swing Arm

5132683

Unavailable

21

Washer, Split Lock

7553201

$3.99

21

Washer, Split Lock

7553201

$3.99

22

Bolt

7517585

$4.79

23

Axle, Rear

5132699

Unavailable

24

Screw

7517612

Unavailable

25

O-Ring

5411531

Unavailable

26

Asm., Gearcase, Rear [See Rear Housing Pg. C12 for Details]

-------

Unavailable

27

Asm., Skid Plate, Rear

1012881

$58.39

27

Plate, Skid, Rear Housing

5242851-067

$19.83

27

Pad, Rubber

5811716

Unavailable

28

Collar, Rear Axle

5132698

Unavailable

29

O-Ring

5411707

Unavailable

30

Decal, Hitch

7078261

Unavailable

31

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

32

Clamp, Brake Line, Rear

5245050

$1.75

33

Screw

7512017

$4.79

34

Tube, Axle, LH

1013264-067

Unavailable

35

Bearing Hubstrut

3514342

Unavailable

36

RING, RETAINING

7710507

$2.39

37

BOLT

7512325

$2.39

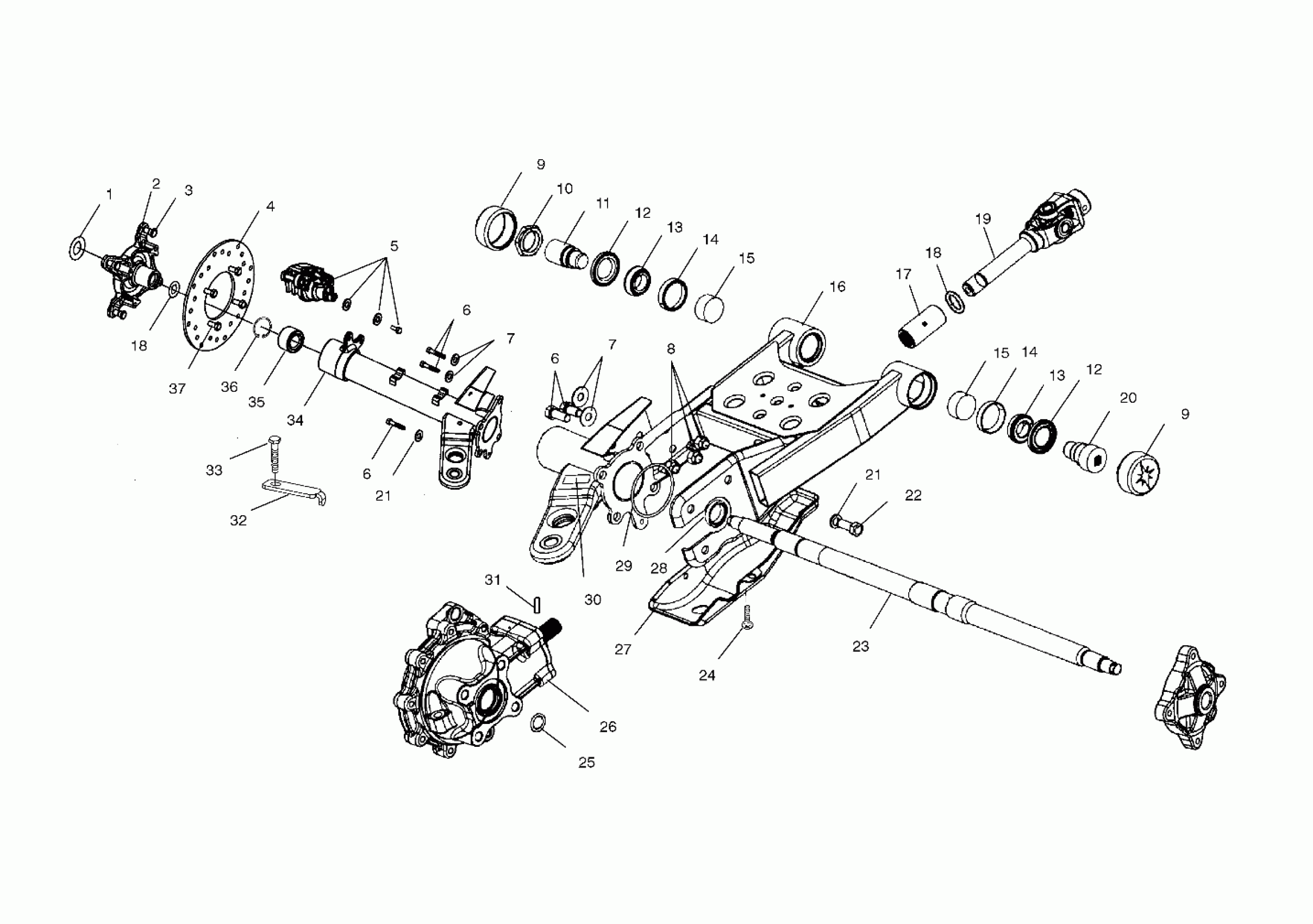

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB SWING ARM/REAR GEARCASE MOUNTING - A02CD32AA/AB/AC/FB (4970147014D03) Diagram

O-Ring

Hub, Wheel, 4WD

Stud

Disc, Brake

Washer, Spring Lock

Screw

ASM., BRAKE CALIPER [SEE REAR BRAKE PG. A10 FOR DETAILS]

Bolt

Bolt

Bolt

WASHER

WASHER

Nut, FLEXLOC

Cap, Pivot, Swing Arm

Cap, Pivot, Swing Arm

Nut, Jam

Pivot, Threaded

Seal, Pivot, Swing Arm

Seal, Pivot, Swing Arm

Bearing, Tapered Roller Cone

Bearing, Tapered Roller Cone

Bearing, Tapered Roller Cup

Bearing, Tapered Roller Cup

Seal, Pivot, Swing Arm

Seal, Pivot, Swing Arm

Asm., Swing Arm [Incl. 14,15]

Fitting, Lubrication

Coupling, Prop Shaft, Greased

O-RING

O-RING

Asm., Prop Shaft, Rear

Pivot, Swing Arm

Washer, Split Lock

Washer, Split Lock

Bolt

Axle, Rear

Screw

O-Ring

Asm., Gearcase, Rear [See Rear Housing Pg. C12 for Details]

Asm., Skid Plate, Rear

Plate, Skid, Rear Housing

Pad, Rubber

Collar, Rear Axle

O-Ring

Decal, Hitch

PIN-SPRING,5/16 X 1 5/8-Y

Clamp, Brake Line, Rear

Screw

Tube, Axle, LH

Bearing Hubstrut

RING, RETAINING

BOLT
