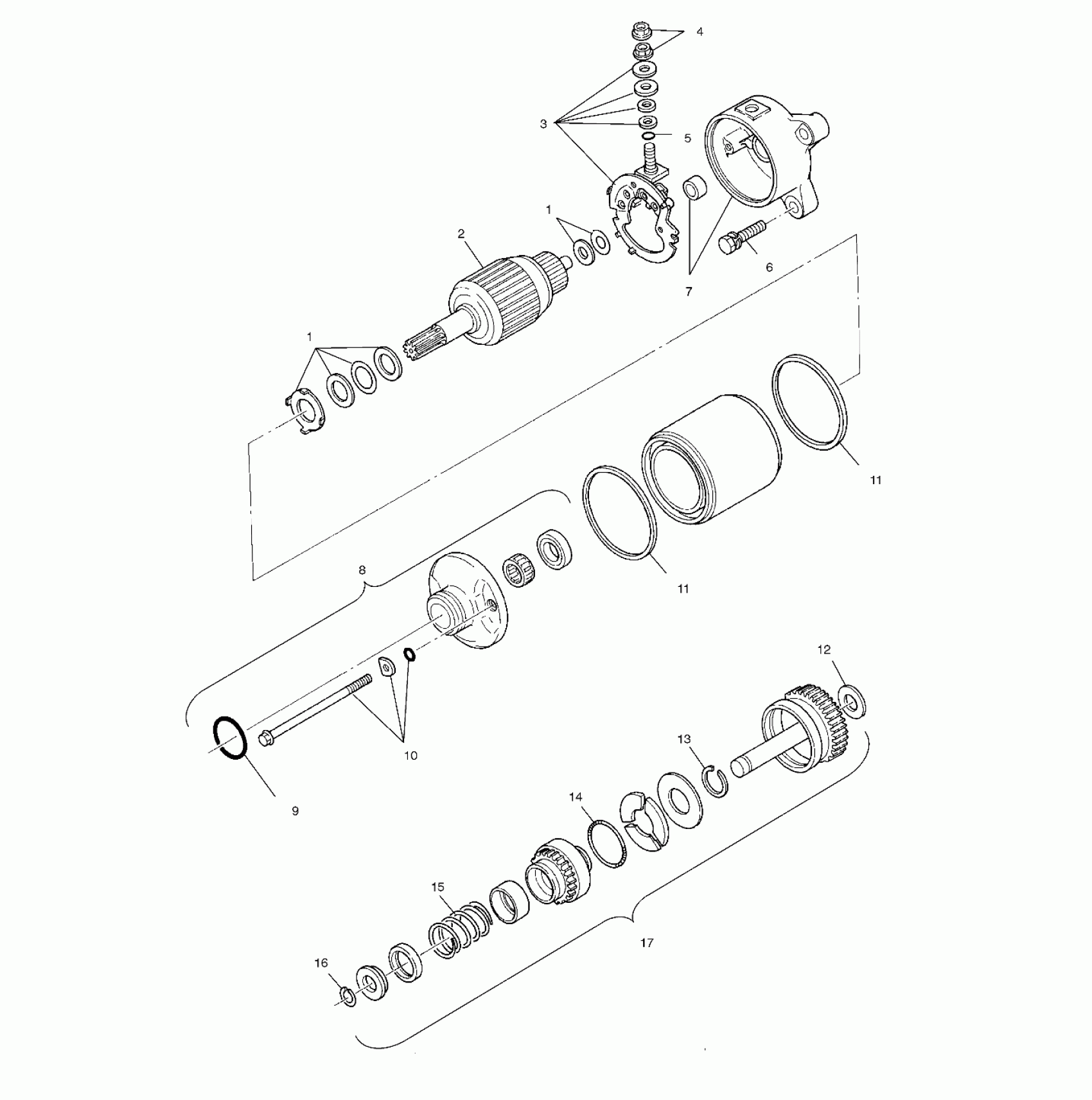

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB STARTING MOTOR - A02CD32AA/AB/AC/FB (4970147014E01) Diagram

#

Description
Price

-

Motor, Starting [Incl. 1-5,7-11]

3084981

$427.49

1

Washer Set

3084982

Unavailable

1

Washer Set

3084982

Unavailable

2

Armature

3085353

Unavailable

3

Brush, Carbon

3084406

$125.46

4

NUT, FLANGE

3083649

$3.97

5

O-RING

3084408

Unavailable

6

Bolt and Washer

3082038

$3.97

7

Bracket, Rear

3085034

$93.08

8

Asm., Front Bracket [Incl. 9]

3085033

$145.70

9

O-Ring

3240114

$6.99

10

Asm., Set Bolt [Incl. 5]

3084983

$23.81

11

RING, RUBBER

3084405

Unavailable

11

RING, RUBBER

3084405

Unavailable

12

Washer, Gear Shaft

3083737

$3.17

13

CLIP

3084412

$9.52

14

SPRING, WEIGHT

3084411

$15.56

15

SPRING, RETURN

3084410

Unavailable

16

CLIP

3084409

$7.14

17

Asm., Gear Shaft [Incl. 12-16]

3087030

$271.10
