Description

Price

-

Asm., Gearcase, Rear [Incl. 1-9, 13-25]

1341342

Unavailable

1

Screw

3233585

Unavailable

2

Screw

3233252

$5.27

2

Screw

3233252

$5.27

3

Seal

3233256

Unavailable

3

Seal

3233256

Unavailable

4

Cover, Gearcase, Output

3233753

$229.37

5

Pipe, Knock

3233529

$7.99

6

O-Ring

3233587

$32.37

7

SHIM

3233581

Unavailable

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

9

Gear, Bevel, 31T, Rear

3233740

Unavailable

10

Clip

7670102

$2.39

11

Line, Vent

8450003-1525

Unavailable

12

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

13

TUBE, VENT

3233524

$7.19

14

Gearcase, Rear Housing

3233739

Unavailable

15

Plug

3233711

Unavailable

15

Plug

3233711

Unavailable

16

Washer

3233324

$8.99

16

Washer

3233324

$8.99

17

Bushing

3233577

$19.99

18

Shaft, Pinion, 10T, Bevel, Rear

3233768

Unavailable

19

BEARING, BALL

3233714

$31.99

20

O-Ring

3233588

$10.55

21

Seal, Oil

3233319

$27.99

22

Gearcase, Cover, Input

3233573

Unavailable

23

RING, RETAINING

3233699

$7.19

24

THRUST BUTTON

3233582

$7.91

25

SHIM

3233583

Unavailable

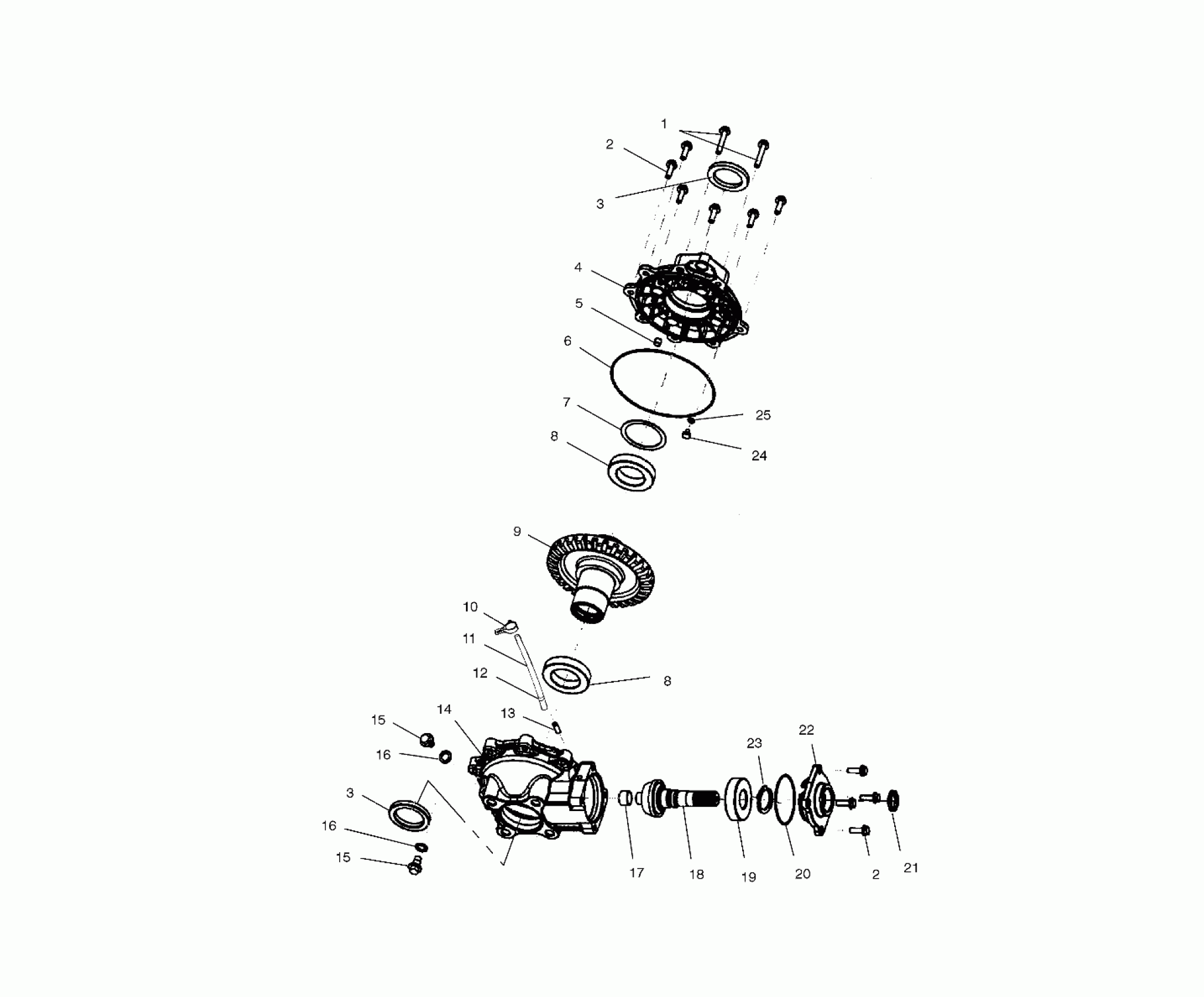

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB REAR HOUSING - A02CD32AA/AB/AC/FB (4970147014C12) Diagram

Asm., Gearcase, Rear [Incl. 1-9, 13-25]

Screw

Screw

Screw

Seal

Seal

Cover, Gearcase, Output

Pipe, Knock

O-Ring

SHIM

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

Gear, Bevel, 31T, Rear

Clip

Line, Vent

CLAMP-HOSE, (LARGE GREEN)

TUBE, VENT

Gearcase, Rear Housing

Plug

Plug

Washer

Washer

Bushing

Shaft, Pinion, 10T, Bevel, Rear

BEARING, BALL

O-Ring

Seal, Oil

Gearcase, Cover, Input

RING, RETAINING

THRUST BUTTON

SHIM
