Description

Price

1

Rivet [AA][AB] [AA][AB](AC)

7661645

Unavailable

2

Bolt

7511930

$2.38

3

WASHER

7555792

$4.76

3

WASHER

7555792

$4.76

4

Foil, Rear Cab, Rear

5811107

Unavailable

5

Cab, Rear, Blue (AC)

5432117-341

Unavailable

5

Cab, Rear, Gunmetal [AA][FB]

5432117-317

Unavailable

5

Cab, Rear, Camo [AB]

5433282-283A

Unavailable

6

Nut, Nylok

7541925

$0.79

6

Nut, Nylok

7541925

$0.79

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.94

9

SCREW

7512242

$2.38

10

Washer, Flat

7555859

$1.19

11

Screw

7512085

Unavailable

12

Box, Tool

5431786

$53.17

13

RIVET

7621403

$1.19

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

LATCH, SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

Covering, Seat, Black (AA)(AB)(FB)

2682958-070

$149.75

17

Seat, Black (AA)(AB)(FB)

2682441-070

$445.22

17

Foil, Seat Base, Large

5811104

Unavailable

17

Foil, Seat Base, Small

5811105

$9.84

17

Seat (AC)

2683104

$445.22

17

Cover, Seat (AC)

2683105

$149.75

18

BUMPER-RUBBER

5412067

$3.97

19

Screw

7517375

$1.19

20

Cover, Tool Box

5431787

Unavailable

21

Cap, Drain

5410896

$5.65

22

Asm., Front Gearcase [See Front Housing Pg. C11 for Details]

----

Unavailable

23

Washer, Spring Lock

7552603

$0.79

24

Screw

7512492

$1.19

25

Guard, Rock

5433435

Unavailable

26

WASHER-SKID PLATE

7556065

$4.76

27

SCREW

7517386

$1.19

28

Washer, Flat

7558301

$1.19

29

SCREW

7512232

$1.19

29

SCREW

7512232

$1.19

30

Nut, Nylok

7542122

$1.19

31

Mount, Rubber

5411548

$28.32

32

Screw

7517264

$3.97

33

Frame, Main [FB]

1013597-067

Unavailable

33

Frame, Main [AA][AB](AC)

1013670-067

Unavailable

34

Footwell, LH, Nylon, Black

5432221-070

$230.70

34

Footwell, RH, Nylon, Black

5433219-070

$230.70

35

Foil, Foam, Rear Fender

5811111

Unavailable

36

Foil, Rear Cab, Front

5811106

Unavailable

37

Decal, 4 Stroke Carb/Filter

7170007

Unavailable

38

Foil, Foam

5811087

Unavailable

39

NUT, U-TYPE SPEED

7670057

$1.19

40

Guard, Mud, Rear, LH [AA][AB] [AA][AB](AC)

5431796-070

Unavailable

40

Guard, Mud, Rear, RH [AA][AB] [AA][AB](AC)

5431797-070

Unavailable

40

Kit, Mud Skirt, Full Set [FB]

2873213

Unavailable

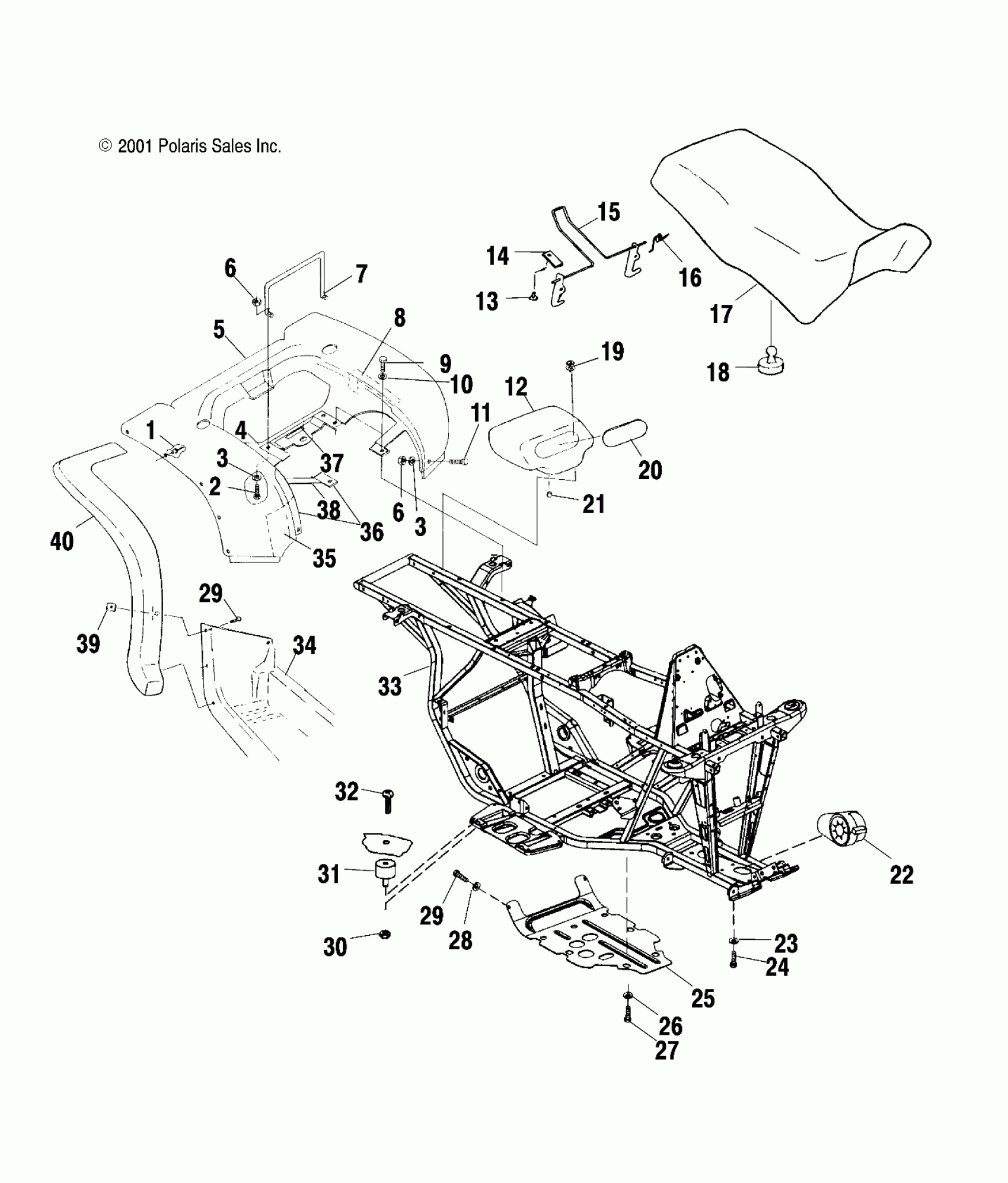

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB REAR CAB and SEAT - A02CD32AA/AB/AC/FB (4970147014A03) Diagram

Rivet [AA][AB] [AA][AB](AC)

Bolt

WASHER

WASHER

Foil, Rear Cab, Rear

Cab, Rear, Blue (AC)

Cab, Rear, Gunmetal [AA][FB]

Cab, Rear, Camo [AB]

Nut, Nylok

Nut, Nylok

Retainer, Seat Latch

Foil, Tape, Rear Cab

SCREW

Washer, Flat

Screw

Box, Tool

RIVET

BRACKET, LEVER RETAINER

LATCH, SEAT

SPRING, LATCH

Covering, Seat, Black (AA)(AB)(FB)

Seat, Black (AA)(AB)(FB)

Foil, Seat Base, Large

Foil, Seat Base, Small

Seat (AC)

Cover, Seat (AC)

BUMPER-RUBBER

Screw

Cover, Tool Box

Cap, Drain

Asm., Front Gearcase [See Front Housing Pg. C11 for Details]

Washer, Spring Lock

Screw

Guard, Rock

WASHER-SKID PLATE

SCREW

Washer, Flat

SCREW

SCREW

Nut, Nylok

Mount, Rubber

Screw

Frame, Main [FB]

Frame, Main [AA][AB](AC)

Footwell, LH, Nylon, Black

Footwell, RH, Nylon, Black

Foil, Foam, Rear Fender

Foil, Rear Cab, Front

Decal, 4 Stroke Carb/Filter

Foil, Foam

NUT, U-TYPE SPEED

Guard, Mud, Rear, LH [AA][AB] [AA][AB](AC)

Guard, Mud, Rear, RH [AA][AB] [AA][AB](AC)

Kit, Mud Skirt, Full Set [FB]
