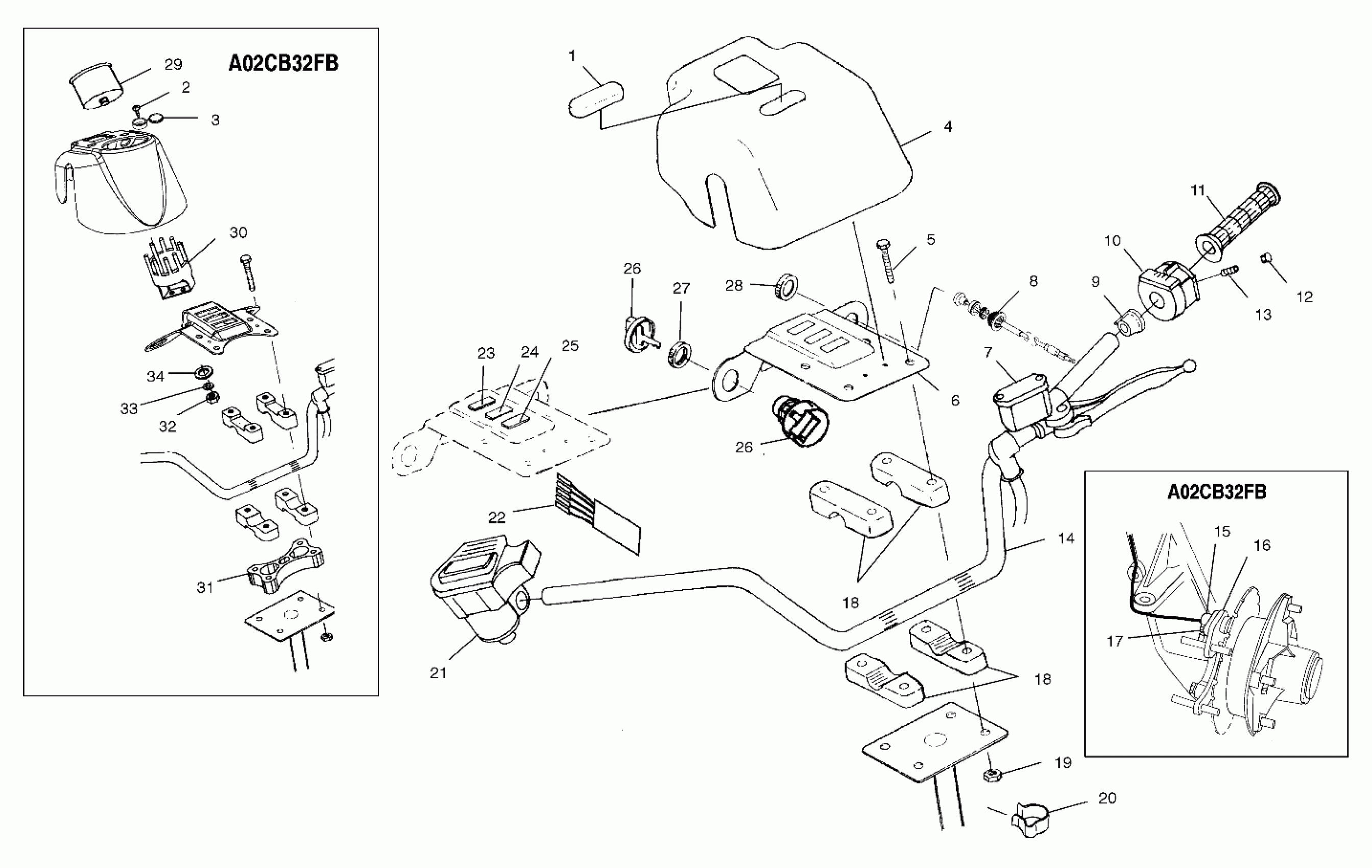

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB HANDLEBAR - A02CD32AA/AB/AC/FB (4970147014C03) Diagram

#

Description
Price

1

Cover, Logo [AA][AB] [AA][AB]

5432247-070

Unavailable

2

Screw (FB)

7512024

$4.76

3

Cover, Screw (FB)

5432420

Unavailable

4

Panel, Instrument [FB] [FB]

5433843-070

$53.17

4

Panel, Instrument [AA][AB] [AA][AB]

5433842-070

Unavailable

5

Screw [AA][AB] [AA][AB]

7517216

Unavailable

5

Screw [FB] [FB]

7517224

Unavailable

6

Bracket, Instrument Panel [FB] [FB](If built after 5/08/00)

5244341-067

$5.71

6

Bracket, Instrument Panel [FB] [FB](If built before 5/08/00)

5241698-067

$6.59

6

Bracket, Instrument Panel [AA][AB] [AA][AB]

5244292-067

Unavailable

7

ASM., MASTER CYLINDER [SEE CONTROL - MASTER CYL./BRAKE LINE PG. A8 FOR DETAILS]

----

Unavailable

8

Cable, Choke

7081008

$80.94

9

Spacer, Switch, LH

5433903

Unavailable

10

Switch, Handlebar, Hi/Lo/Rev. Override

4010422

$151.99

11

Grip, Handlebar

5433834-070

$28.32

12

PLUG, HOLE

5432952

$6.46

13

Screw

7517625

$4.76

14

Tube, Handlebar [AA][AB] [AA][AB]

5224715-067

Unavailable

14

Tube, Handlebar [FB] [FB]

5245182-067

$40.48

15

Cap, Hall Sensor [FB] [FB]

5132382

$24.27

16

Sensor, Hall Effect [FB] [FB]

4010298

$117.37

17

Screw [FB] [FB]

7517658

$5.56

18

Block, Handlebar

5630629

$11.51

18

Block, Handlebar

5630629

$11.51

19

Nut, Nylok

7542122

$1.19

20

Clip, Cable Retaining

7080631

Unavailable

21

Asm., Throttle Control [See Controls - Throttle Asm./Cable Pg. C1, Ref. 5]

----

Unavailable

22

Harness, Control Panel [AA][AB] [AA][AB]

2460715

Unavailable

22

Harness, Control Panel [FB] [FB]

2460841

Unavailable

23

Indicator, Neutral/Reverse

4040054

$32.37

24

Indicator, "Hot Temperature"

4040053

$32.37

25

Plug, Indicator Hole[AA][AB] [AA][AB]

5430967

$6.46

25

Indicator, "P", Park [FB] [FB]

4010313

$15.08

26

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

26

Blank, Key, Series 2200, 2300, 2700, 2800.

4010321

$14.29

26

Switch, Ignition

4010390

$109.27

26

Cover, Key

5431964

$13.75

26

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

26

Blank, Key, Series 2200, 2300, 2700, 2800.

4010321

$14.29

26

Switch, Ignition

4010390

$109.27

26

Cover, Key

5431964

$13.75

27

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

28

Nut, Choke

7080922

$3.17

29

Speedometer [FB] [FB]

3280362

Unavailable

30

Clamp [FB] [FB]

3280201

Unavailable

31

Block, Riser [FB] [FB]

5630633

$18.89

32

Nut [FB] [FB]

7541933

Unavailable

33

Washer, Flat [FB] [FB]

7558212

$0.79

34

Washer, Lock [FB] [FB]

7555868

Unavailable
