Description

Price

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

Seal

3233788

$31.99

2

Seal

3233788

$31.99

2

Seal

3233788

$31.99

3

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

3

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

3

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

3

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

4

SHAFT,FRONT OUTPUT

3233625

$139.99

5

SPROCKET-22T [FB]

3233844

$127.59

5

Sprocket, 12T [AA][AB](AC)

3233093

Unavailable

6

Subasm., Ground Spiral Bevel [Incl. 55]

3234912

$595.54

7

BUSHING-GARLOCK

3233552

$23.99

8

Pipe, Knock

3233529

$7.99

8

Pipe, Knock

3233529

$7.99

8

Pipe, Knock

3233529

$7.99

9

Screw Tapping

3233749

$5.59

9

Screw Tapping

3233749

$5.59

10

Switch, 3 Position (Qty. 2 for FB)

3234019

Unavailable

11

Washer

3233872

$9.59

12

Plug

3233711

Unavailable

13

Bellcrank, HLR

3233153

$27.99

14

NUT, LOCK, HEX FLANGE

3233961

$2.79

15

Switch, 2 Position [AA][AB](AC)

3234001

Unavailable

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

Washer

3233040

$9.59

18

Plug, Vent Cap [AA][AB] [AA][AB](AC)

-------

Unavailable

19

Tube, Vent

3233037

Unavailable

20

Gearcase, RH [AA][AB] [AA][AB](AC)

3233732

$169.98

20

Gearcase, RH [FB]

3233765

$989.99

21

Plate [FB]

3233757

$51.59

22

Screw [Qty. 8 for FB]

3233608

$5.99

22

Screw [Qty. 8 for FB]

3233608

$5.99

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

24

Washer

3233628

Unavailable

25

Engagement Dog, Low [AA][AB](AC)

3233629

$169.98

25

Engagement Dog, Low/Park [FB]

3233758

$115.99

26

RING, RETAINING

3233306

$4.79

26

RING, RETAINING

3233306

$4.79

27

WASHER,THRUST

3233619

$21.99

27

WASHER,THRUST

3233619

$21.99

27

WASHER,THRUST

3233619

$21.99

28

Gear, 35T [AA][AB](AC)

3233631

$133.59

28

Gear, 36T [FB]

3233760

$146.39

29

Ring, Retaining

3233618

$1.75

29

Ring, Retaining

3233618

$1.75

30

Shift, Shaft, H/R

3233627

Unavailable

31

Fork, Shift, H/R

3233602

Unavailable

32

BEARING, NEEDLE

3233103

$31.99

33

Shaft, Reverse [AA][AB](AC)

3233598

Unavailable

33

Shaft, Reverse [FB]

3233761

Unavailable

34

Washer, Thrust

3233012

Unavailable

34

Washer, Thrust

3233012

Unavailable

35

BEARING, NEEDLE

3233014

$43.99

36

Chain, Silent

3233036

Unavailable

37

Gear, 16T, w19T Spline [AA][AB](AC)

3233770

$94.39

37

Gear, 14/19T [FB]

3233755

$135.71

38

Shaft, Input, 31T

3233756

Unavailable

39

Gear, 30T

3233600

$198.32

40

Spacer

3233613

$3.51

41

Gear, 36T [AA][AB](AC)

3233708

Unavailable

41

Gear 34T [FB]

3233762

Unavailable

42

Gearcase, LH [AA][AB] [AA][AB](AC)

3233610

Unavailable

42

Cover, LH [FB]

3233763

Unavailable

43

Pin

3233308

Unavailable

44

Srew, Tapping

3233747

Unavailable

45

Bracket, Interlock

3233309

$20.63

46

Spring

3233032

$12.94

47

Engagement Dog

3234020

Unavailable

48

Ring, Retaining

3233029

$5.59

49

Sprocket, 24T

3233599

Unavailable

50

Gear, 50T [FB]

3233764

Unavailable

50

Gear, 48T [AA][AB](AC)

3233709

$178.57

51

Cover, Bearing

3233609

$19.99

52

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

53

SPACER

3233357

$21.99

54

Bearing, Ball

3233607

$36.41

55

Subasm., Ground Spiral Bevel [Incl. 6]

3234912

$595.54

56

Fork, Shift, Low [AA][AB](AC)

3233605

Unavailable

56

Fork, Shift Low/Park [FB]

3233759

$206.39

57

Shift, Shaft, Low

3233624

$58.73

58

O-Ring

3233548

$27.99

59

Chain, Roller [AA][AB](AC)

3233626

Unavailable

59

Chain [FB]

3233784

$87.99

60

Sprocket 22T/18T Spline [FB]

3233873

$99.99

60

Sprocket, 12T, w/18T Spline [AA][AB](AC)

3233620

Unavailable

61

Shaft, Rear Output

3233622

Unavailable

62

SHIM

3233611

Unavailable

63

THRUST BUTTON

3233582

$7.91

64

SHIM

3233583

$26.39

65

Cover, Output

3233781

$275.22

66

Washer

3234035

Unavailable

67

Plug

3233777

$34.99

68

Asm., Gearcase, Main [AA][AB](AC)

1341365

Unavailable

68

Asm., Gearcase [FB]

1341373

Unavailable

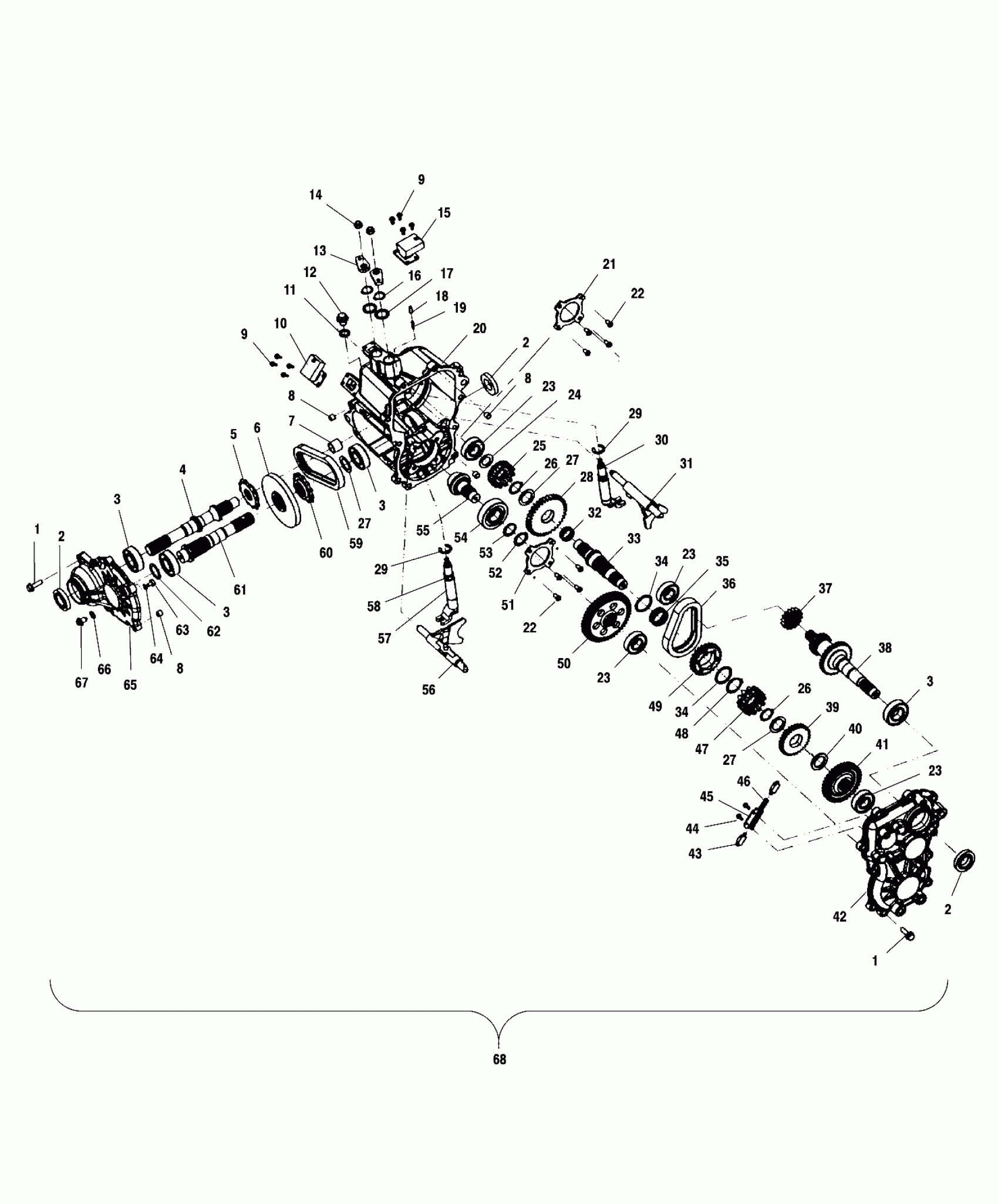

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB GEARCASE - A02CD32AA/AB/AC/FB (4970147014C13) Diagram

Screw

Screw

Seal

Seal

Seal

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

SHAFT,FRONT OUTPUT

SPROCKET-22T [FB]

Sprocket, 12T [AA][AB](AC)

Subasm., Ground Spiral Bevel [Incl. 55]

BUSHING-GARLOCK

Pipe, Knock

Pipe, Knock

Pipe, Knock

Screw Tapping

Screw Tapping

Switch, 3 Position (Qty. 2 for FB)

Washer

Plug

Bellcrank, HLR

NUT, LOCK, HEX FLANGE

Switch, 2 Position [AA][AB](AC)

RING,RETAINING BASIC,EXTERNAL 0.75

Washer

Plug, Vent Cap [AA][AB] [AA][AB](AC)

Tube, Vent

Gearcase, RH [AA][AB] [AA][AB](AC)

Gearcase, RH [FB]

Plate [FB]

Screw [Qty. 8 for FB]

Screw [Qty. 8 for FB]

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

Washer

Engagement Dog, Low [AA][AB](AC)

Engagement Dog, Low/Park [FB]

RING, RETAINING

RING, RETAINING

WASHER,THRUST

WASHER,THRUST

WASHER,THRUST

Gear, 35T [AA][AB](AC)

Gear, 36T [FB]

Ring, Retaining

Ring, Retaining

Shift, Shaft, H/R

Fork, Shift, H/R

BEARING, NEEDLE

Shaft, Reverse [AA][AB](AC)

Shaft, Reverse [FB]

Washer, Thrust

Washer, Thrust

BEARING, NEEDLE

Chain, Silent

Gear, 16T, w19T Spline [AA][AB](AC)

Gear, 14/19T [FB]

Shaft, Input, 31T

Gear, 30T

Spacer

Gear, 36T [AA][AB](AC)

Gear 34T [FB]

Gearcase, LH [AA][AB] [AA][AB](AC)

Cover, LH [FB]

Pin

Srew, Tapping

Bracket, Interlock

Spring

Engagement Dog

Ring, Retaining

Sprocket, 24T

Gear, 50T [FB]

Gear, 48T [AA][AB](AC)

Cover, Bearing

RING,RETAINING BASIC,EXTERNAL 0.984
