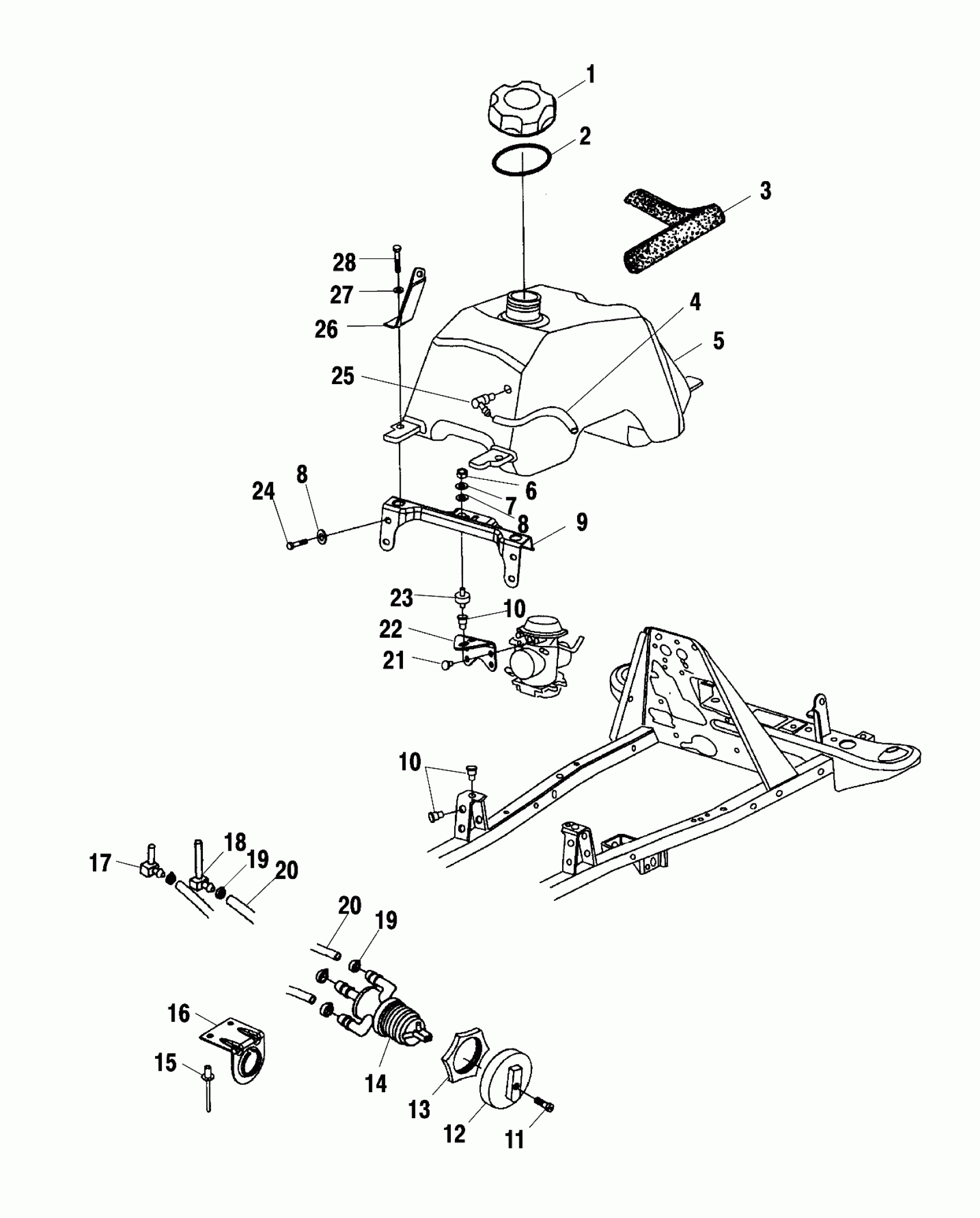

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB FUEL TANK and CARBURETOR MOUNTING - A02CD32AA/AB/AC/FB (4970147014B05) Diagram

#

Description
Price

1

Cap, Gas Tank [Includes Gasket]

5433687

$20.22

2

GASKET

5812123

$5.65

3

Seal, Foam

5811942

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Asm., Fuel Tank [Incl. 18,19,26]

2520183

Unavailable

6

NUT

7542105

$3.99

7

Washer, Split Lock

7552605

$5.27

8

Washer, Flat

7555859

$1.49

8

Washer, Flat

7555859

$1.49

9

Bracket, Carburetor Support

5245671-067

Unavailable

10

Nutsert

7547069

$3.99

10

Nutsert

7547069

$3.99

11

Screw

7517505

$1.59

12

Knob, Fuel Valve

5432559

$10.39

13

Nut, Fuel Valve

5432733

Unavailable

14

Valve, 3-Way

7052161

$39.99

15

RIVET-3/16-.090-.290

7661637

$1.49

16

Bracket, Fuel Valve

5240577-067

Unavailable

17

Fitting, Fuel Outlet, Main

7052146

$27.99

18

Fitting, Fuel Outlet, Reserve

7052149

$23.99

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

Line, Fuel

8450040-600

Unavailable

20

Line, Fuel

8450040-600

Unavailable

21

Screw and Washer

3084205

$3.99

22

Mount, Carburetor

5245674-067

Unavailable

23

MOUNT, CARBURETOR

3110050

$12.99

24

Screw

7512276

$4.79

25

Vent, Tank

5431053

$19.99

26

Bracket, Fuel Cover Mount, Rear, LH

5222154-067

Unavailable

26

Bracket, Fuel Cover Mount, Rear, RH

5222155-067

Unavailable

27

WASHER

7558301

$1.49

28

Screw

7512277

$4.79
