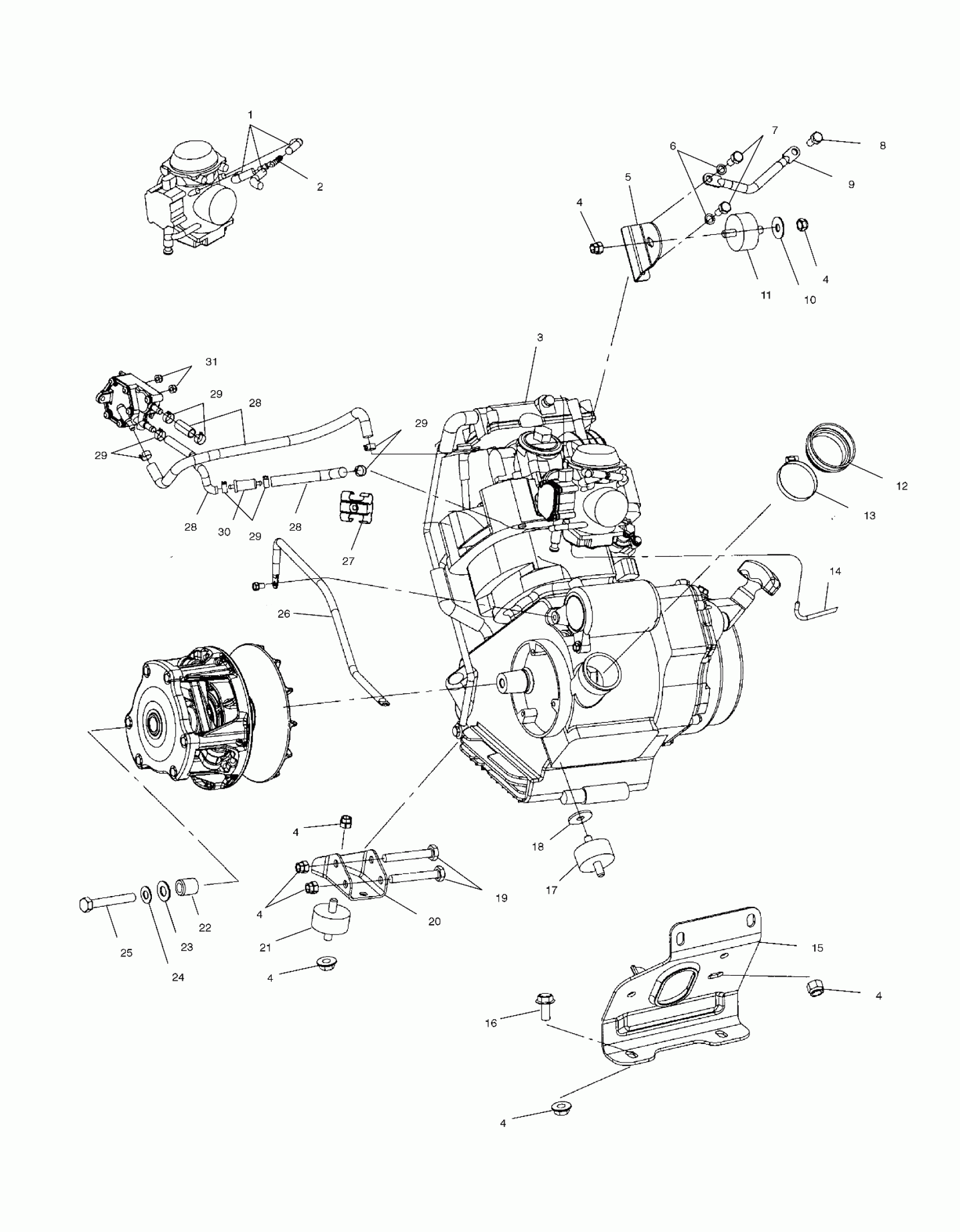

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB ENGINE MOUNTING - A02CD32AA/AB/AC/FB (4970147014B03) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

Asm., Engine

1202136

Unavailable

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

5

Bracket, Motor Mount

5243641-067

$5.71

6

WASHER, SPRING LOCK

7552901

$1.49

7

BOLT

7512315

$4.79

8

SCREW

7512232

$1.49

9

Cable, Ground Engine

4010132

Unavailable

10

WASHER, FLAT

7555823

$3.99

11

Mount, Rubber

5412248

Unavailable

12

Boot, Clutch Intake

5411721

Unavailable

13

Clamp, Narrow Band

7080511

$4.79

14

LINE, FUEL

8360009-600

Unavailable

15

Mount, Engine, Rear

1013133-067

$15.67

16

Screw

7517289

$4.79

17

Mount, Rubber, Rear

3021119

Unavailable

18

Washer

7555815

$3.99

19

SCREW

7515417

$4.79

20

Mount, Lower Front

5243288-067

Unavailable

21

Mount, Rubber, Engine

3021181

Unavailable

22

BUSHING-.437 X.770 X.50

5430261

$7.19

23

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

24

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

25

BOLT

7512566

$30.79

26

Cable, Battery/Engine

4010095

Unavailable

27

T-Clip

7080482

$6.39

28

Line, Fuel

8450040-600

Unavailable

28

Line, Fuel

8450040-600

Unavailable

28

Line, Fuel

8450040-600

Unavailable

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

29

HOSE CLAMP, RED

7080003

$1.49

30

FILTER

2530009

$5.65

31

NUT-M5X.8,HX NYL-Y

7546601

$1.49
