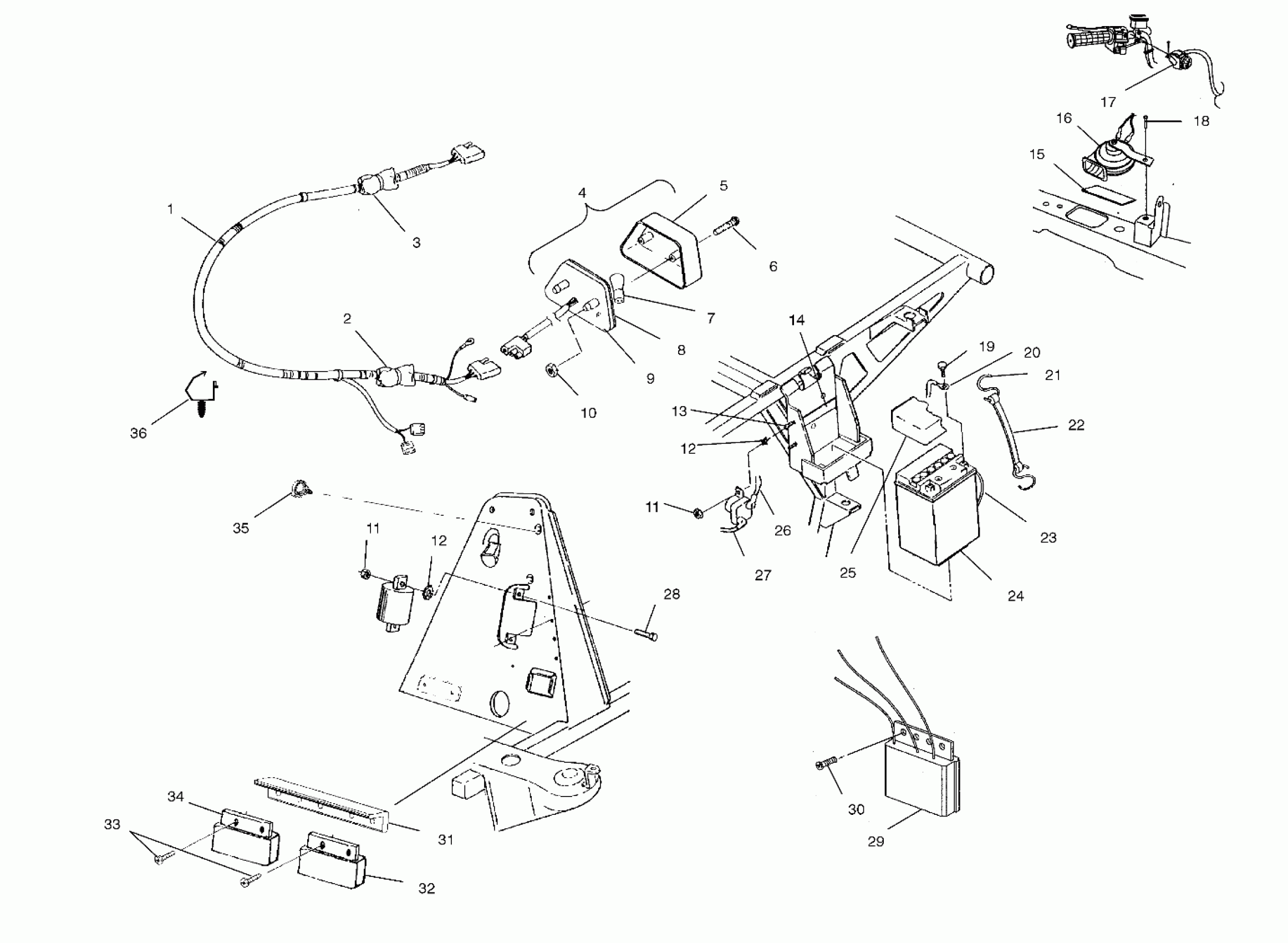

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB ELECTRICAL/TAILLIGHT - A02CD32AA/AB/AC/FB (4970147014C09) Diagram

#

Description
Price

1

Harness, Main [AA][AB]

2460948

Unavailable

1

Harness, Jumper [FB]

2460964

$18.89

2

Kit, Circuit Breaker, 20 AMP

2200593

$63.99

3

Kit, Circuit Breaker, Fan

2201795

$68.79

4

Asm., Taillight w/Brake Light [Incl. 5-10](If built before 2/01/02)

2432034

$55.99

4

Asm., Taillight, 12V [Incl. 5-10](If built after 2/01/02)

2410320

$63.99

5

Lens, Taillight

4032046

$32.37

6

Screw, Taillight

4032029

$4.79

7

Bulb, Taillight

4030043

$6.46

8

Gasket, Taillight

4032045

$4.03

9

Backing, Taillight/Brake Light

4032064

$83.99

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

11

Nut, Nylok

7541925

$1.49

11

Nut, Nylok

7541925

$1.49

12

Washer

7571602

$4.79

12

Washer

7571602

$4.79

13

Screw

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

Pad, Fuel Tank [FB]

5810317

Unavailable

16

Horn [FB]

4010310

Unavailable

17

Switch, Horn [FB]

4010311

$59.99

18

Screw [FB]

7517386

$1.49

19

Kit, Battery Bolt, Short

2200361

$3.99

20

Cable, Battery/Engine

4010095

Unavailable

21

Hook, Battery Strap

7010032

$1.59

22

Strap, Battery Holddown

5410424

Unavailable

23

Tube, Battery Vent

5432077

Unavailable

24

Battery

4140006

$99.99

25

Cover, Battery

5431769

$14.39

26

Cable, Battery/Solenoid

4010094

Unavailable

27

Cable, Solenoid/Starter

4010093

$47.99

28

BOLT

7512007

$3.99

29

Liniter, Speed [FB]

4010354

Unavailable

29

Limiter, RPM LR 83-3 [AA][AB]

4010195

Unavailable

30

SCREW

7512024

$4.79

31

Sink, Heat

5132214

$8.23

32

Switch, Thermister LR-62

4010590

Unavailable

33

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

34

Rectifier, Regulator, LR 35

4060191

Unavailable

35

Clip, Rosebud

4020149

$6.39

36

CLIP, ROUTING

7670109

$2.39
