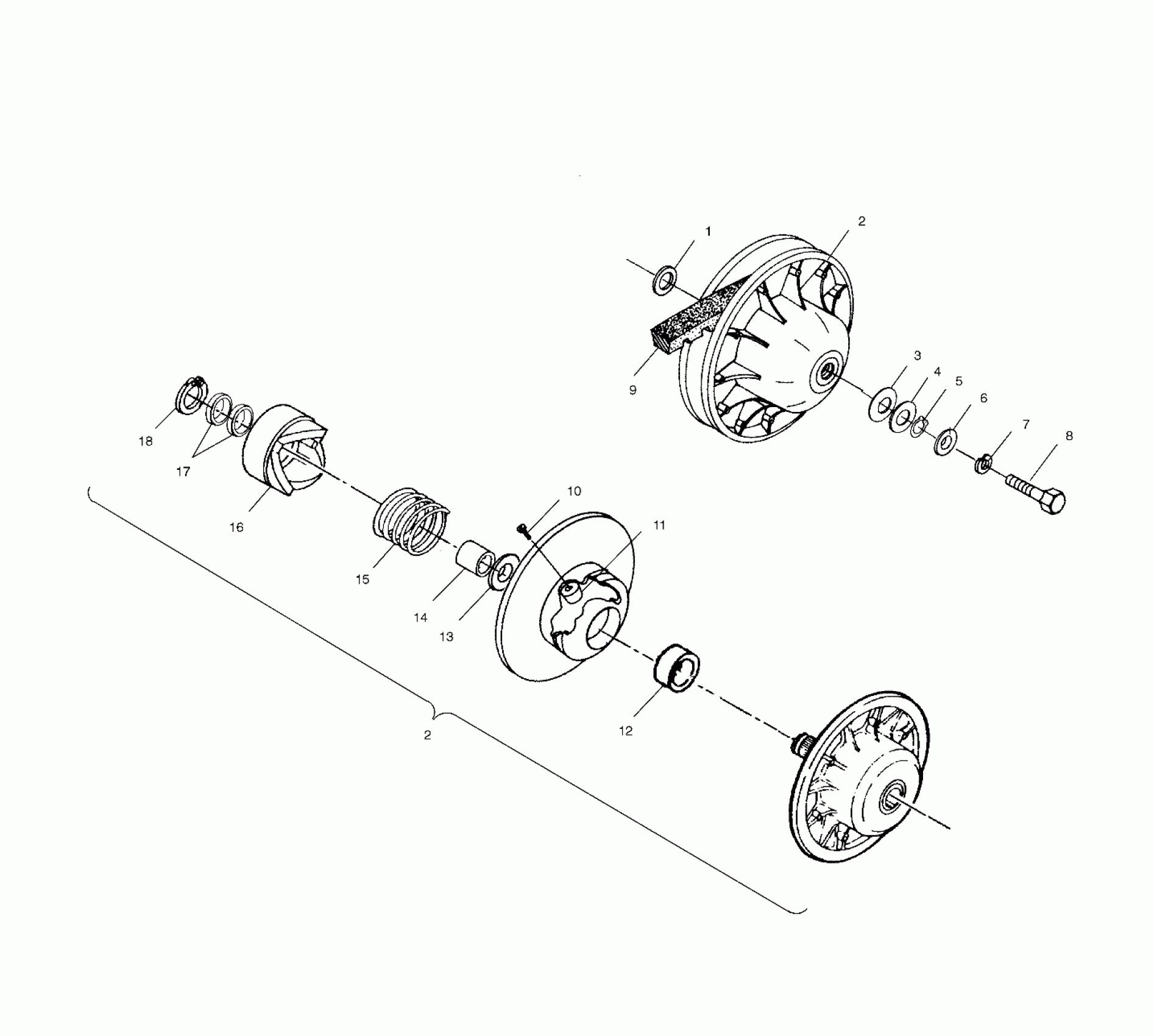

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB DRIVEN CLUTCH - A02CD32FB (4970147014C07) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

Asm., Driven Clutch, Braking [Incl.4-6,12-18]

1321973

Unavailable

2

Asm., Driven Clutch, Braking [Incl.4-6,12-18]

1321973

Unavailable

3

Washer

7556013

Unavailable

4

Bushing

7556010

Unavailable

5

Ring, Retaining

7710461

Unavailable

6

Washer, Domed

5220646

$2.39

7

WASHER, SPRING LOCK

7552901

$1.49

8

BOLT

7515382

$2.39

9

Belt, Drive

3211069

$67.99

10

Screw

7517323

$13.59

11

Roller, Taper

1321977

$31.99

12

Bearing

3585710

$19.99

13

WASHER-2.06X2.62X.105-Y

5211115

$3.99

14

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

15

Spring

7041635

$47.99

16

Ramp, Stationary

5132751

Unavailable

17

Spacer

5210753

$2.39

18

Ring, Retaining

7710448

$3.19
