Description

Price

-

Asm., Drive Clutch, Braking [Incl. All Less Spring and Weight][FB]

1321706

$562.31

-

Asm., Drive Clutch, ATV-06 [Incl. All Less Spring and Weight][AA][AB](AC)

1321976

$697.13

1

Bolt

7518062

$4.79

1

Bolt

7518062

$4.79

2

WASHER,MULTILUBE

5430945

$1.59

2

WASHER,MULTILUBE

5430945

$1.59

3

ASM-ROLLER AND BUSHING

1321457

$40.46

3

ASM-ROLLER AND BUSHING

1321457

$40.46

4

BUTTON, CLUTCH

5431936

Unavailable

4

BUTTON, CLUTCH

5431936

Unavailable

4

BUTTON, CLUTCH

5431936

Unavailable

4

BUTTON, CLUTCH

5431936

Unavailable

5

Spacer [.050][AA][AB](AC)

5210754

Unavailable

5

Spacer [.025][AA][AB](AC)

5242981

Unavailable

5

Spacer [.020][AA][AB](AC)

5210752

Unavailable

5

Spacer [.032][AA][AB](AC)

5210753

Unavailable

6

Weight, Shift, 10 MH [FB]

5630513

$30.88

6

Weight, Shift, 20-40 [AA][AB](AC)

5631356

Unavailable

6

Weight, Shift, 10 MH [FB]

5630513

$30.88

6

Weight, Shift, 20-40 [AA][AB](AC)

5631356

Unavailable

7

BOLT, SHOULDER

7512266

$3.19

7

BOLT, SHOULDER

7512266

$3.19

8

NUT, FLEXLOC

7541906

$3.19

8

NUT, FLEXLOC

7541906

$3.19

9

Bearing [FB]

3585712

$31.99

9

Bearing, Moveable [1/2I][AA][AB](AC)

3576504

$23.99

9

Bearing [FB]

3585712

$31.99

9

Bearing, Moveable [1/2I][AA][AB](AC)

3576504

$23.99

10

PIN-ROLLER

5020422

$2.39

10

PIN-ROLLER

5020422

$2.39

11

Spring, Clutch

7042202

Unavailable

11

Spring, Clutch

7042202

Unavailable

12

COVER, BEARING

3576510

$9.59

12

COVER, BEARING

3576510

$9.59

13

Washer [FB] [FB]

7556008

$10.80

14

Clutch, One Way Drive [FB] [FB]

1520231

$294.99

15

Washer [FB] [FB]

7556009

$6.17

16

Spacer [FB] [FB]

5631119

Unavailable

17

Nut, Jam [FB] [FB]

7547130

Unavailable

18

Washer, Spring Lock [FB]

7552801

$1.59

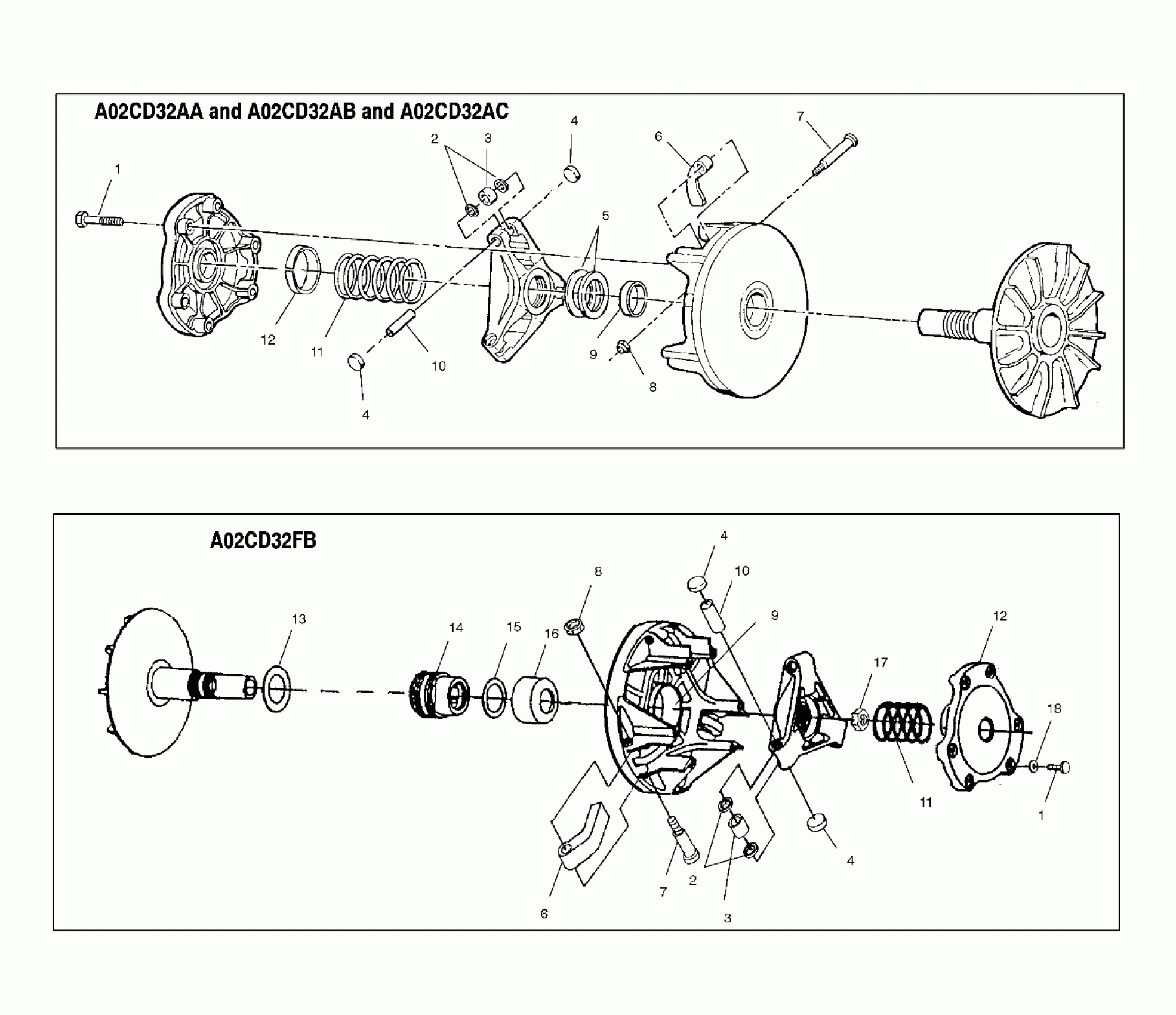

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB DRIVE CLUTCH - A02CD32AA/AB/AC/FB (4970147014C05) Diagram

Asm., Drive Clutch, Braking [Incl. All Less Spring and Weight][FB]

Asm., Drive Clutch, ATV-06 [Incl. All Less Spring and Weight][AA][AB](AC)

Bolt

Bolt

WASHER,MULTILUBE

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

ASM-ROLLER AND BUSHING

BUTTON, CLUTCH

BUTTON, CLUTCH

BUTTON, CLUTCH

BUTTON, CLUTCH

Spacer [.050][AA][AB](AC)

Spacer [.025][AA][AB](AC)

Spacer [.020][AA][AB](AC)

Spacer [.032][AA][AB](AC)

Weight, Shift, 10 MH [FB]

Weight, Shift, 20-40 [AA][AB](AC)

Weight, Shift, 10 MH [FB]

Weight, Shift, 20-40 [AA][AB](AC)

BOLT, SHOULDER

BOLT, SHOULDER

NUT, FLEXLOC

NUT, FLEXLOC

Bearing [FB]

Bearing, Moveable [1/2I][AA][AB](AC)

Bearing [FB]

Bearing, Moveable [1/2I][AA][AB](AC)

PIN-ROLLER

PIN-ROLLER

Spring, Clutch

Spring, Clutch

COVER, BEARING

COVER, BEARING

Washer [FB] [FB]

Clutch, One Way Drive [FB] [FB]

Washer [FB] [FB]

Spacer [FB] [FB]

Nut, Jam [FB] [FB]

Washer, Spring Lock [FB]
