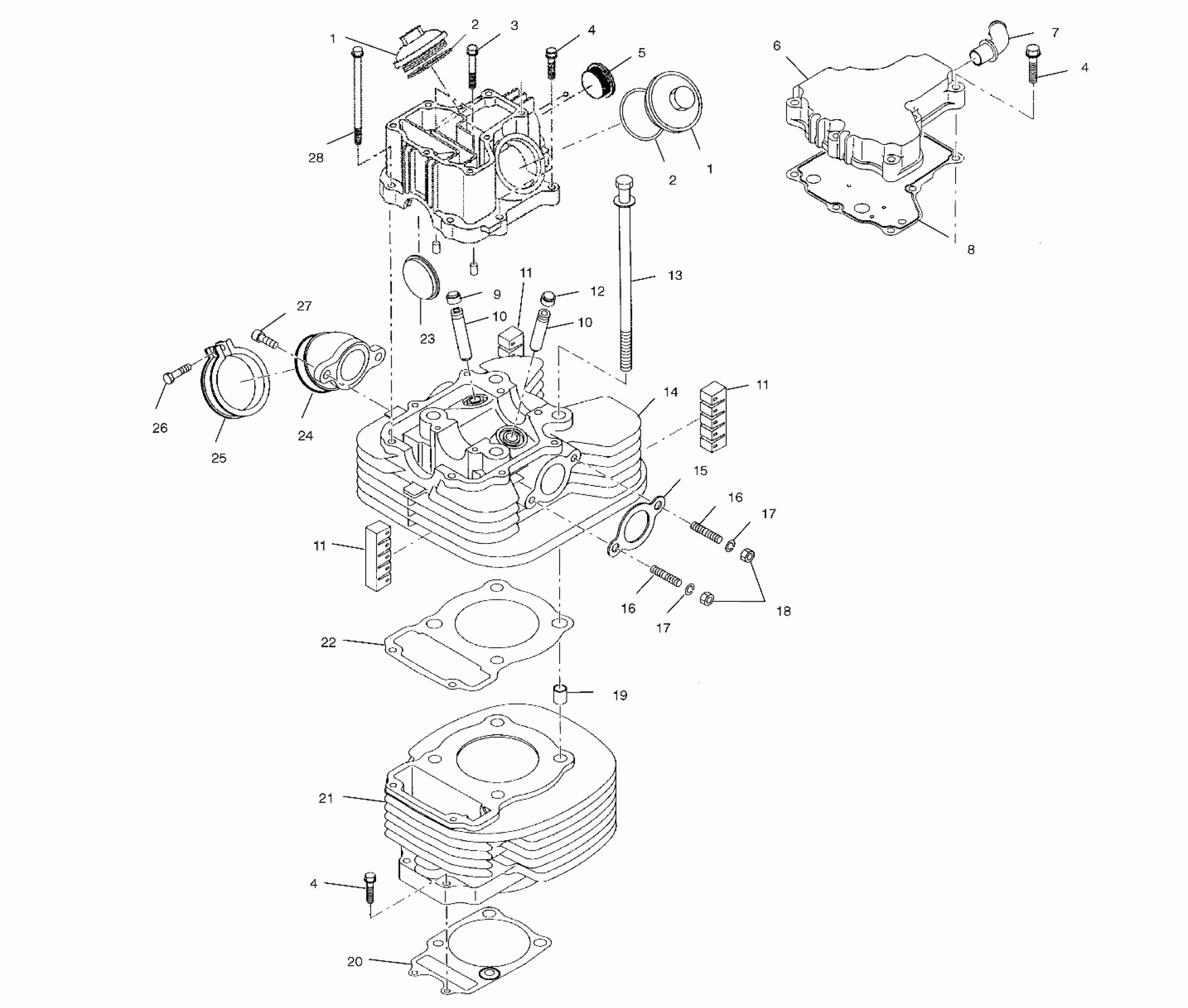

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB CYLINDER - A02CD32AA/AB/AC/FB (4970147014D07) Diagram

#

Description
Price

1

Cover, Valve

3086413

Unavailable

1

Cover, Valve

3086413

Unavailable

2

O-Ring

3086414

Unavailable

2

O-Ring

3086414

Unavailable

3

Bolt, Flange

3086412

$3.97

4

BOLT, FLANGE

3084874

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

5

Plug, Cylinder Block

3086417

Unavailable

6

Cover, Breather

3087033

Unavailable

7

Pipe

3085850

$52.60

8

Gasket

3087034

$28.32

9

Seal, Intake Valve

3084858

$13.75

10

GUIDE, VALVE

3084994

Unavailable

10

GUIDE, VALVE

3084994

Unavailable

11

Fin Damper A

3084798

$36.41

11

Fin Damper A

3084798

$36.41

11

Fin Damper A

3084798

$36.41

12

SEAL, EXHAUST VALVE

3084859

$24.27

13

Bolt and Washer

3086418

$12.99

14

Asm., Cylinder Head [Incl. 3,4,10-12,14,16]

3087118

$704.99

15

Gasket, Exhaust

3086421

Unavailable

16

Stud

3085326

Unavailable

16

Stud

3085326

Unavailable

17

Washer

3080530

$3.17

17

Washer

3080530

$3.17

18

Nut

3080285

Unavailable

19

Pin, Straight

3084838

Unavailable

20

Gasket, Cylinder

3086407

$32.37

21

Cylinder

3086883

Unavailable

22

Gasket, Head

3086415

Unavailable

23

Gasket, Cam

3086416

Unavailable

24

Adapter

3087050

$72.84

25

Asm., Adapter Band [Incl. 26]

3083166

$19.84

26

SCREW

3081497

$2.38

27

Bolt

3086786

$3.97

28

Bolt, Flange

3086419

Unavailable
