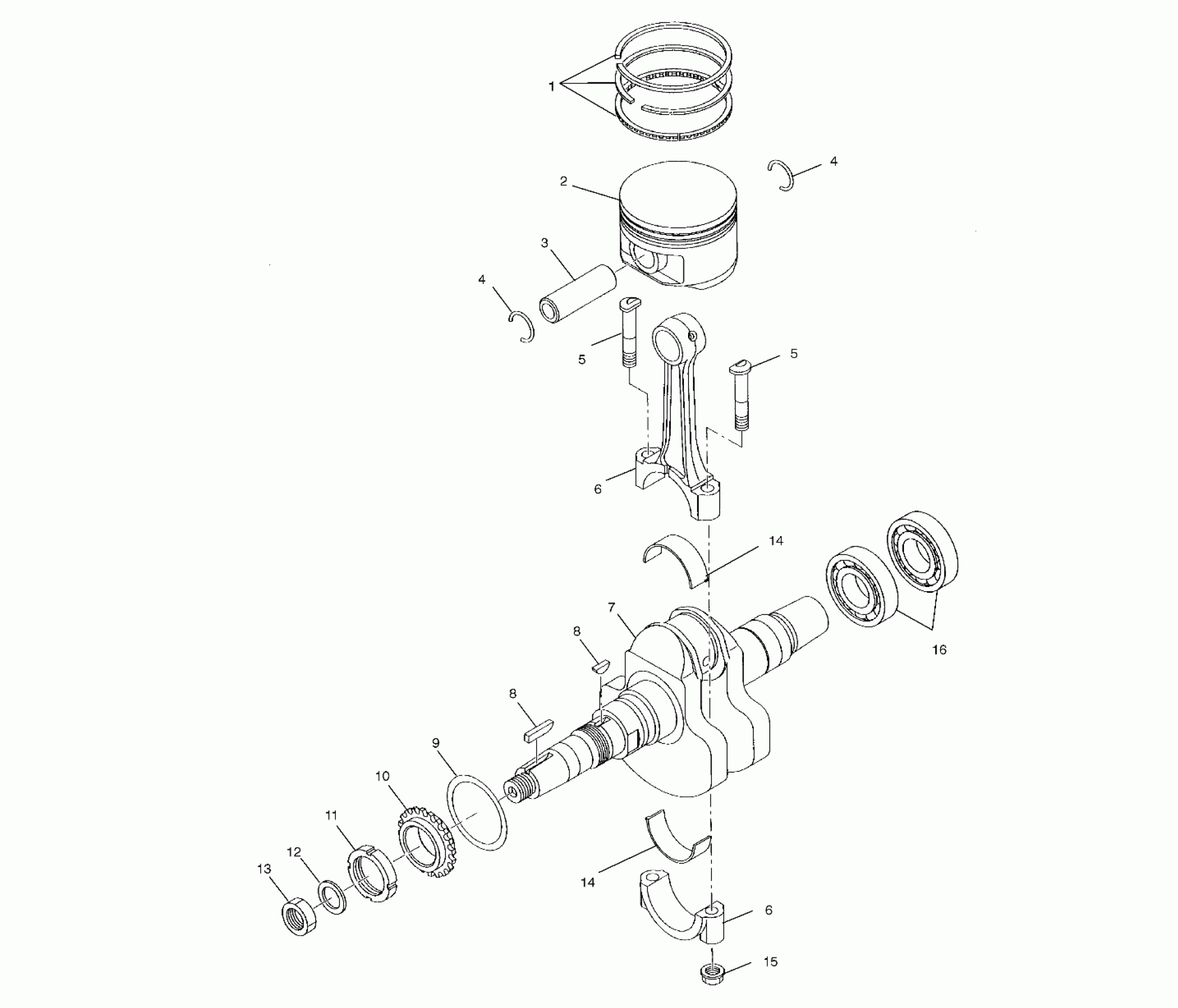

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB CRANKSHAFT and PISTON - A02CD32AA/AB/AC/FB (4970147014D08) Diagram

#

Description
Price

1

Piston Ring Set [STD]

3085774

Unavailable

1

Piston Ring Set [0.25 O/S]

3085775

Unavailable

1

Piston Ring Set [0.50 O/S]

3085776

Unavailable

2

Piston Set [STD][Incl. 4]

3086800

Unavailable

2

Piston Set [0.25 O/S][Incl. 4]

3086801

$100.79

2

Piston Set [0.50 O/S][Incl. 4]

3086802

$120.94

3

Pin, Piston

3086846

Unavailable

4

Clip

3084167

$6.39

4

Clip

3084167

$6.39

5

Bolt

3086425

Unavailable

5

Bolt

3086425

Unavailable

6

Asm., Connecting Rod [Incl. 5,15]

3086424

Unavailable

6

Asm., Connecting Rod [Incl. 5,15]

3086424

Unavailable

7

Crankshaft, Complete [Incl. 16]

3087119

Unavailable

8

KEY, WOODRUFF

3240168

$19.99

8

KEY, WOODRUFF

3240168

$19.99

9

Spacer

3086434

Unavailable

9

Spacer

3086437

Unavailable

9

Spacer

3086436

$8.79

9

Spacer

3086435

Unavailable

10

Sprocket 1

3086492

$27.99

11

Nut

3085528

$35.99

12

WASHER

3086767

Unavailable

13

NUT, LOCK

3083905

Unavailable

14

Bearing [STD]

3086427

Unavailable

14

Bearing [0.05 U/S][If built after 3/1/99]

3086798

Unavailable

14

Bearing [0.25 U/S][If built after 3/1/99]

3086799

$15.99

14

Bearing [STD]

3086427

Unavailable

14

Bearing [0.05 U/S][If built after 3/1/99]

3086798

Unavailable

14

Bearing [0.25 U/S][If built after 3/1/99]

3086799

$15.99

15

Nut

3086426

$4.79

16

BEARING, BALL

3085815

$43.99
