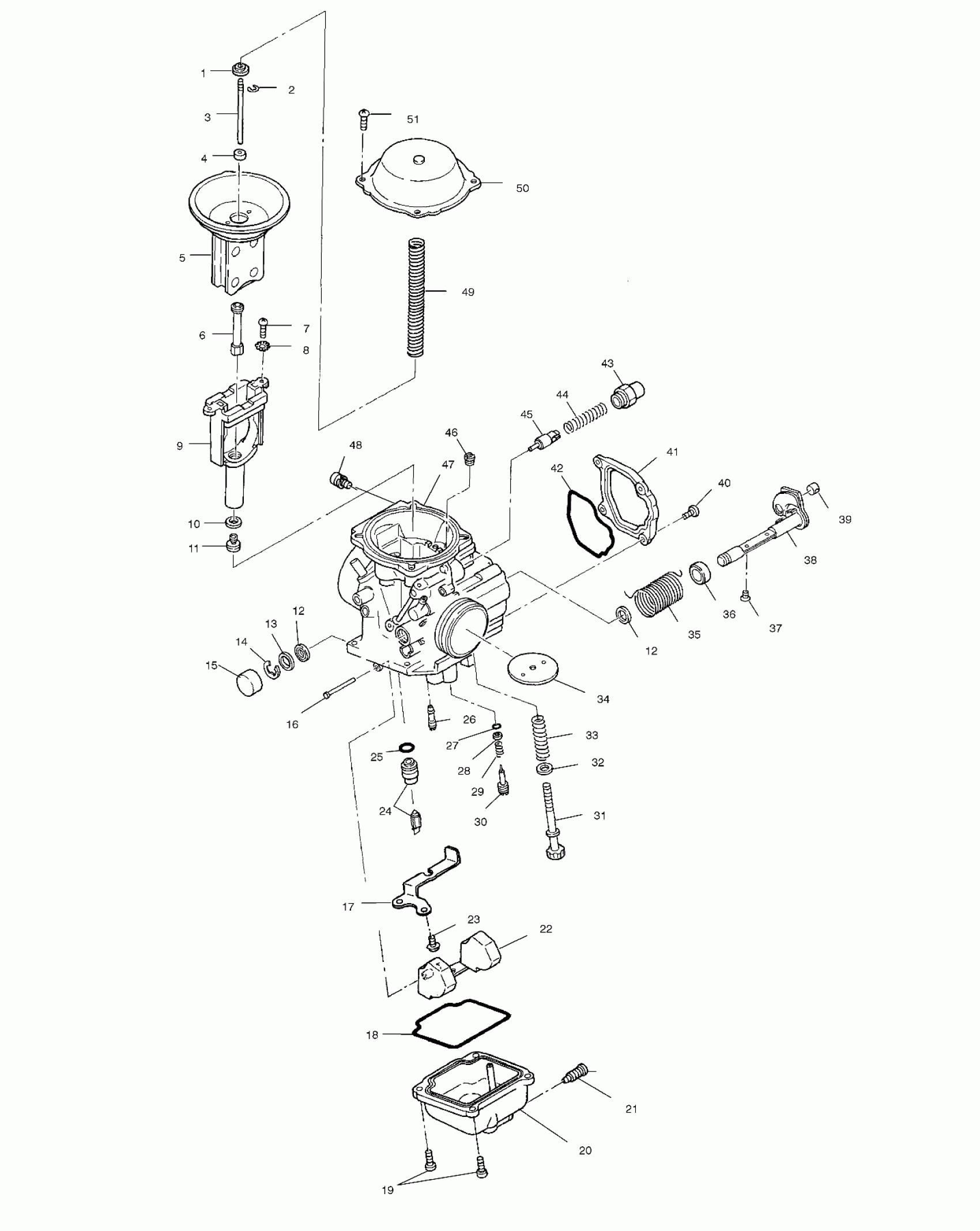

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB CARBURETOR - A02CD32AA/AB/AC/FB (4970147014D11) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

E-RING

3130508

$6.46

3

Needle, Jet

3130730

Unavailable

4

RING

3130752

$5.65

5

Diaphragm

3130732

$156.74

6

Jet, Needle

3131302

Unavailable

7

SCREW

3130541

$11.11

8

WASHER, SPRING

3130540

$4.76

9

Asm., Jet Block

3131128

Unavailable

10

WASHER

3130014

$1.59

11

Jet, Main [#142]

3131303

$8.89

12

SEAL

3130515

$12.13

12

SEAL

3130515

$12.13

13

PACKING

----

Unavailable

14

E-RING

3130518

$1.60

15

CAP

3130519

$10.51

16

PIN, FLOAT

3130361

$9.70

17

PLATE

3130594

$32.37

18

O-RING

3130532

$32.37

19

SCREW

3130520

$1.59

20

Asm., Float Body

3130590

$119.98

21

SCREW

3130521

$10.32

22

ASM., FLOAT

3130529

$99.74

23

SCREW

3130591

$3.97

24

Valve, Needle

3131360

$61.74

25

O-RING

3130533

$5.65

26

Jet, Pilot [#50]

3131327

$28.32

27

O-Ring

3130522

$5.65

28

Washer

3130523

$2.38

29

Spring

3130525

$5.65

30

Adjuster

3131131

$12.99

31

Screw, Adjust

3130546

$13.75

32

Ring

3130545

$12.13

33

Spring

3130544

$10.51

34

Valve, Throttle [120]

3131126

Unavailable

35

SPRING

3130589

$28.32

36

Ring

3130514

$7.27

37

SCREW

3130501

$3.97

38

Asm., Throttle Shaft

3130513

$79.37

39

GUIDE, CABLE

3130543

$32.37

40

SCREW

3130535

$7.14

41

COVER

3130511

$54.99

42

O-Ring

3130512

Unavailable

43

Holder, Guide

3130199

$28.32

44

SPRING

3130538

$5.65

45

Asm., Plunger

3130593

$40.46

46

Jet, Air [#175]

3131133

Unavailable

47

Asm., Carburetor [Incl. 1-38,43-51]

3131383

Unavailable

48

Screw and Washer

3084205

$3.97

49

Spring

3131129

$32.37

50

Asm., Cover

3131127

Unavailable

51

SCREW-MIKUNI C2=0408

3130592

$1.59
