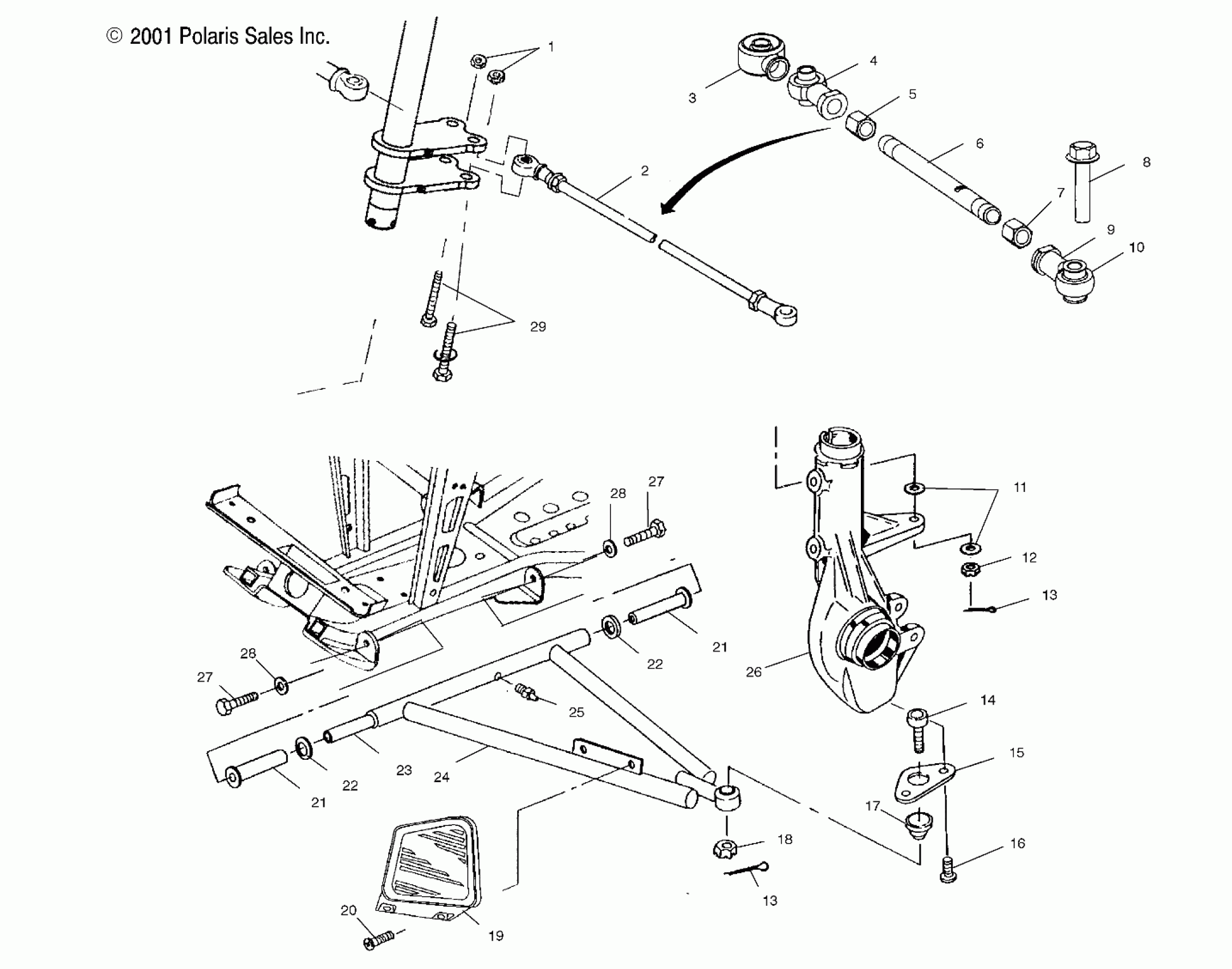

Polaris 325 MAGNUM 4X4 HDS - A02CD32FB A-ARM/STRUT MOUNTING - A02CD32AA/AB/AC/FB (4970147014C04) Diagram

#

Description
Price

1

Nut, FLEXLOC

7542403

Unavailable

2

Asm., Tie Rod [Incl. 3-9]

1820805

$133.56

3

Boot, Seal, Rod End

5411291

$11.32

4

Rod End

7061034

$60.70

5

Nut

7542711

$2.38

6

Tie Rod

5020926

$44.51

7

Nut, Jam, LH

7547028

$2.38

8

Bolt

7517674

$5.56

9

Rod End, LH

7061054

$56.65

10

Boot, Seal, Rod End

5411920

$11.32

11

Washer, Flat

7556099

$1.59

12

Nut

7546904

$4.76

13

Pin, Cotter

7661203

$1.19

13

Pin, Cotter

7661203

$1.19

14

Joint, Ball

7080927

$28.32

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

Shield, CV Joint, RH [AA][AB]

5431149-070

$24.27

19

Shield, CV Joint, RH [FB]

5433928-070

$24.27

19

Shield, CV Joint, LH [AA][AB]

5431150-070

$24.27

19

Shield, CV Joint, LH [FB]

5433927-070

$24.27

20

Screw [FB uses Qty. 6]

7512084

$1.19

21

Bushing, A-Arm, Long

5433066

$5.56

21

Bushing, A-Arm, Long

5433066

$5.56

22

Bushing

5020677

$10.32

22

Bushing

5020677

$10.32

23

Shaft, A-Arm

5020681

$33.24

24

Kit, A-Frame, LH

2201609

$161.49

24

Kit, A-Frame, RH

2201610

Unavailable

25

Fitting, Lubrication

7080433

$1.19

26

Asm., Heavy Hubstrut [See Front Strut Pg. B11, Ref. 15]

----

Unavailable

27

Screw

7512492

$1.19

27

Screw

7512492

$1.19

28

Washer, Spring Lock

7552603

$0.79

28

Washer, Spring Lock

7552603

$0.79

29

Screw

7515415

$1.19
