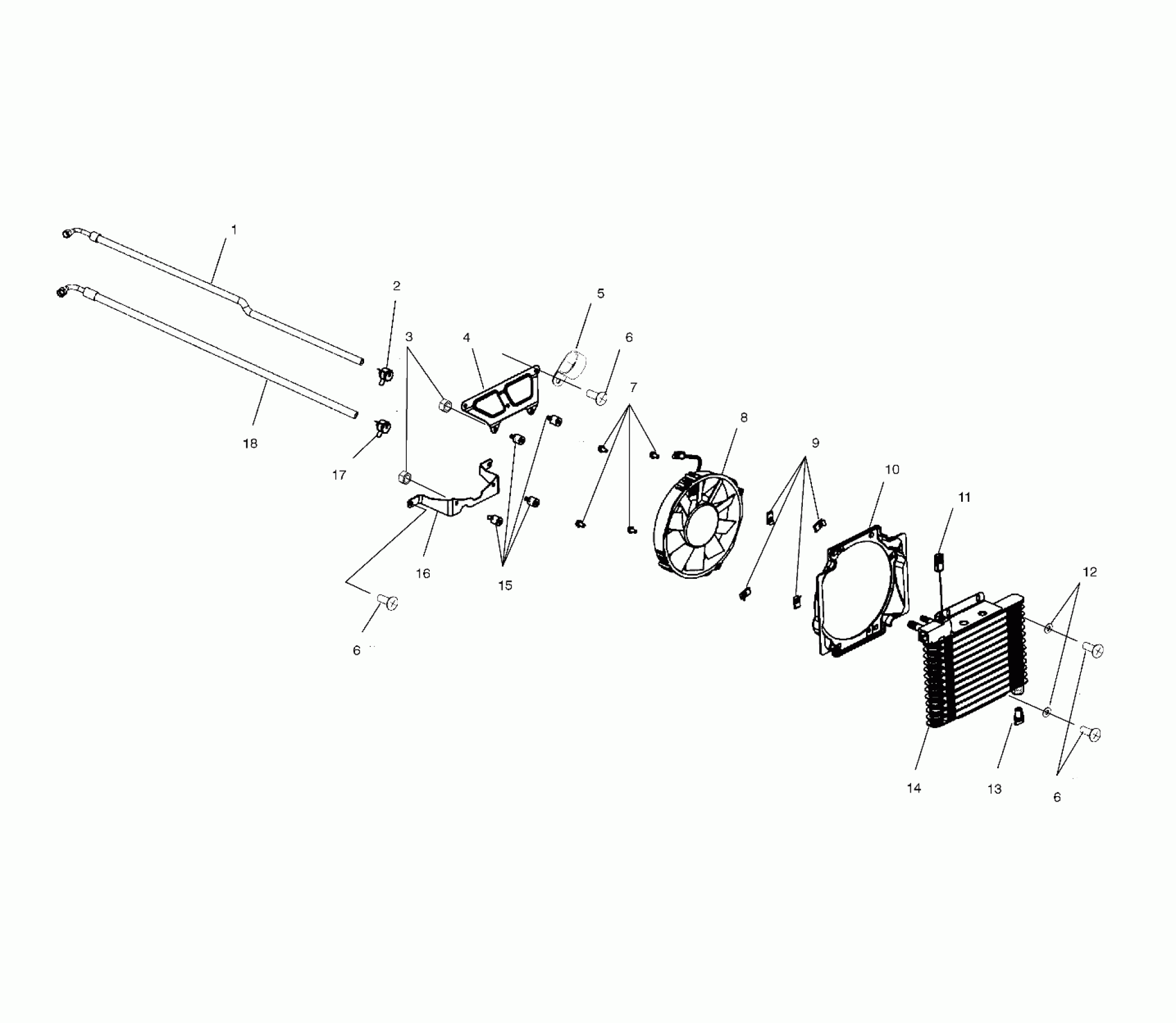

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB OIL COOLING - A01CD32AA (4964026402A009) Diagram

#

Description
Price

1

HOSE-COOLER 9/16" 90� SWIVEL (Use Qty. 2 if built after 1/01/01)

5412039

$63.99

2

CLAMP-HOSE MUBEA

7080862

Unavailable

3

NUT-LOCK(10)

7542122

$1.49

4

DESC NOT_AVAILABLE (If built after 10/10/00)(FB)

5245416-067

$56.99

4

BRKT,OIL COOLER,TOP,BLK (If built before 10/10/00)

5243783-067

$48.99

5

CLAMP-P,CUSHIONED,1.25" I.D.

7080869

$11.19

6

SCREW(10)

7512084

$1.49

6

SCREW(10)

7512084

$1.49

6

SCREW(10)

7512084

$1.49

7

Screw

7517659

$3.99

8

FAN,MOTOR

2410157

Unavailable

9

CLIP,U,ZY

7670111

Unavailable

10

SHROUD-FAN,ATV

5433353

$70.39

11

Thermister

4010274

$124.99

12

WASHER(10)

7558301

$1.49

13

VALVE-PLASTIC RAD/COOLER DRAIN

7052296

Unavailable

14

COOLER-OIL (If built after 1/01/01)

1240074

Unavailable

14

COOLER-OIL TO AIR (If built before 1/01/01)

1240064

Unavailable

15

MOUNT,RUBBER

5411548

$27.99

16

BRKT,LOWER,OIL COOLER ASM. (If built before 10/10/00)

1013302

$26.39

16

BRKT,ASM,LOWER OIL COOLER [Item NotAvailable] (If built after 10/10/00)(FB)

1013519

Unavailable

17

CLAMP-HOSE MUBEA 1/2"

7080866

$7.19

18

HOSE-COOLER 3/4" 90� SWIVEL (If built before 1/01/01)

5412038

Unavailable
