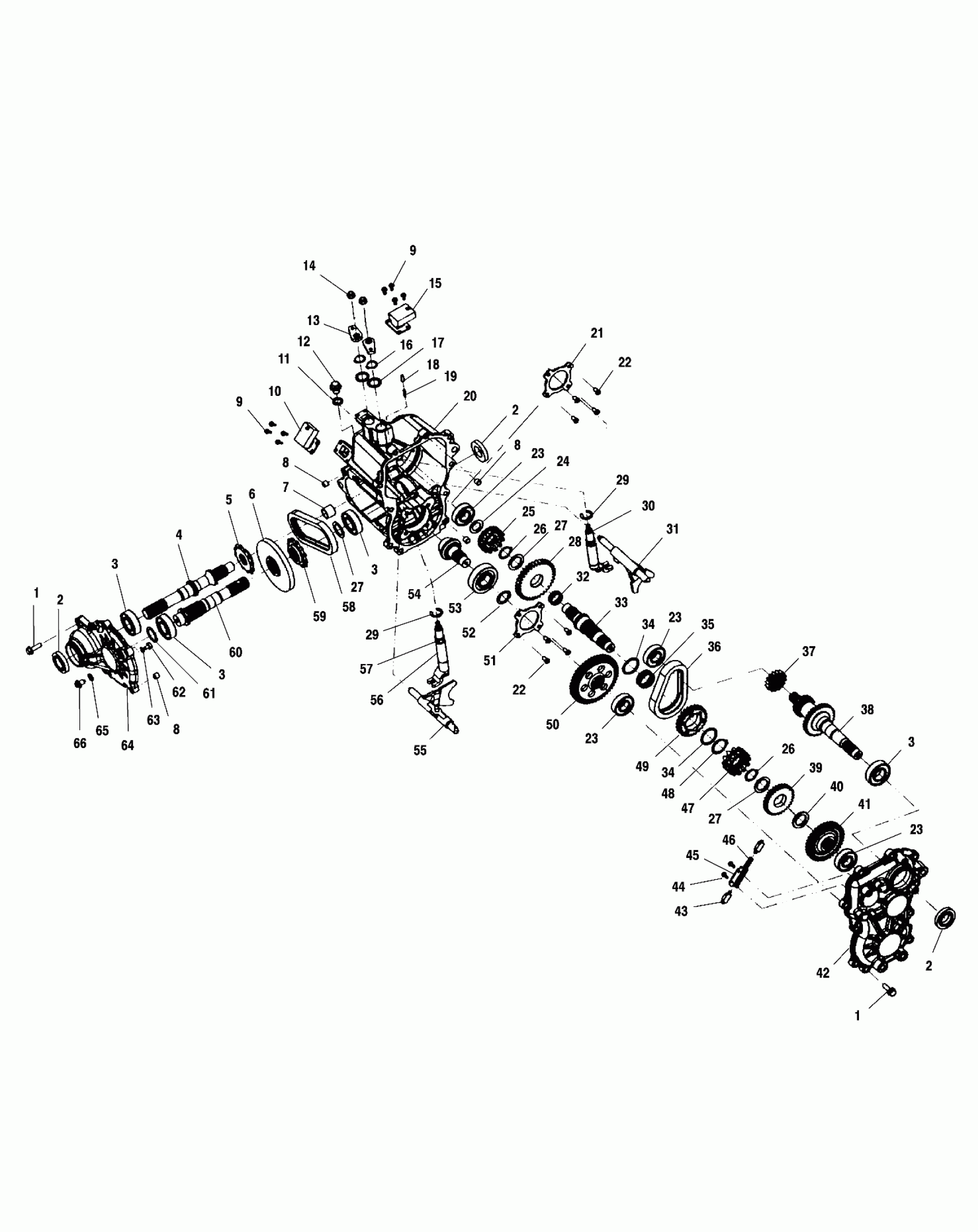

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB MAIN GEARCASE - A01CD32AA (4964026402C013) Diagram

#

Description
Price

-

Asm., Gearcase, Main (AA)(AB)

1341365

Unavailable

-

Asm., Gearcase (FB)

1341373

Unavailable

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

Seal

3233788

$31.99

2

Seal

3233788

$31.99

2

Seal

3233788

$31.99

3

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

3

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

3

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

3

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

4

SHAFT,FRONT OUTPUT

3233625

$139.99

5

SPROCKET-22T (FB)

3233844

$127.59

5

Sprocket, 12T (AA)(AB)

3233093

Unavailable

6

Subasm., Ground Spiral Bevel [Incl. 54]

3234912

$595.54

7

BUSHING-GARLOCK

3233552

$23.99

8

Pipe, Knock

3233529

$7.99

8

Pipe, Knock

3233529

$7.99

8

Pipe, Knock

3233529

$7.99

9

Screw Tapping

3233749

$5.59

9

Screw Tapping

3233749

$5.59

10

Switch, 2 Position (AA)(AB)

3233617

Unavailable

11

Washer

3233872

$9.59

12

Plug

3233711

Unavailable

13

Bellcrank, HLR

3233153

$27.99

14

Nut, Lock Hex Flange

3233961

$2.79

15

Switch, 3 Position (Qty. 2 for FB)

3233615

Unavailable

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

Washer

3233040

$9.59

18

Plug, Vent Cap (AA)(AB)

3233286

$2.63

19

Tube, Vent

3233037

Unavailable

20

Gearcase, RH (AA)(AB)

3233902

Unavailable

20

Gearcase, RH (FB)

3233765

$989.99

21

Plate (FB)

3233757

$51.59

22

Screw (Qty. 8 for FB)

3233608

$5.99

22

Screw (Qty. 8 for FB)

3233608

$5.99

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

24

Washer

3233628

Unavailable

25

Engagement Dog, Low (AA)(AB)

3233629

$169.98

25

Engagement Dog, Low/Park (FB)

3233758

$115.99

26

RING, RETAINING

3233306

$4.79

26

RING, RETAINING

3233306

$4.79

27

WASHER,THRUST

3233619

$21.99

27

WASHER,THRUST

3233619

$21.99

27

WASHER,THRUST

3233619

$21.99

28

Gear, 35T (AA)(AB)

3233631

$133.59

28

Gear, 36T (FB)

3233760

$146.39

29

Ring, Retaining

3233618

$1.75

29

Ring, Retaining

3233618

$1.75

30

Shift, Shaft, H/R

3233627

Unavailable

31

Fork, Shift, H/R

3233602

Unavailable

32

BEARING, NEEDLE

3233103

$31.99

33

Shaft, Reverse (AA)(AB)

3233598

Unavailable

33

Shaft, Reverse (FB)

3233761

Unavailable

34

Washer, Thrust

3233012

Unavailable

34

Washer, Thrust

3233012

Unavailable

35

BEARING, NEEDLE

3233014

$43.99

36

Chain, Silent

3233036

Unavailable

37

Gear, 16T, w19T Spline (AA)(AB)

3233770

$94.39

37

Gear, 14/19T (FB)

3233755

$135.71

38

Shaft, Input, 31T

3233756

Unavailable

39

Gear, 30T

3233600

$198.32

40

Spacer

3233613

$3.51

41

Gear, 36T (AA)(AB)

3233708

Unavailable

41

Gear 34T (FB)

3233762

Unavailable

42

Gearcase, LH (AA)(AB)

3233610

Unavailable

42

Cover, LH (FB)

3233763

Unavailable

43

Pin

3233308

Unavailable

44

Srew, Tapping

3233747

Unavailable

45

Bracket, Interlock

3233309

$20.63

46

Spring

3233032

$12.94

47

Engagement Dog, H/R, HLR

3233533

Unavailable

48

Ring, Retaining

3233029

$5.59

49

Sprocket, 24T

3233599

Unavailable

50

Gear, 50T (FB)

3233764

Unavailable

50

Gear, 48T (AA)(AB)

3233709

$178.57

51

Cover, Bearing

3233609

$19.99

52

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

53

Bearing, Ball

3233607

$36.41

54

Subasm., Ground Spiral Bevel [Incl. 6]

3234912

$595.54

55

Fork, Shift, Low (AA)(AB)

3233605

Unavailable

55

Fork, Shift Low/Park (FB)

3233759

$206.39

56

Shift, Shaft, Low

3233624

$58.73

57

O-Ring

3233548

$27.99

58

Chain, Roller (AA)(AB)

3233626

Unavailable

58

Chain (FB)

3233784

$87.99

59

Sprocket 22T/18T Spline (FB)

3233873

$99.99

59

Sprocket, 12T, w/18T Spline (AA)(AB)

3233620

Unavailable

60

Shaft, Rear Output

3233622

Unavailable

61

SHIM

3233611

Unavailable

62

THRUST BUTTON

3233582

$7.91

63

SHIM

3233583

$26.39

64

Cover, Output

3233781

$275.22

65

Washer

3233254

$7.99

66

Plug, Drain

3233777

$34.99
