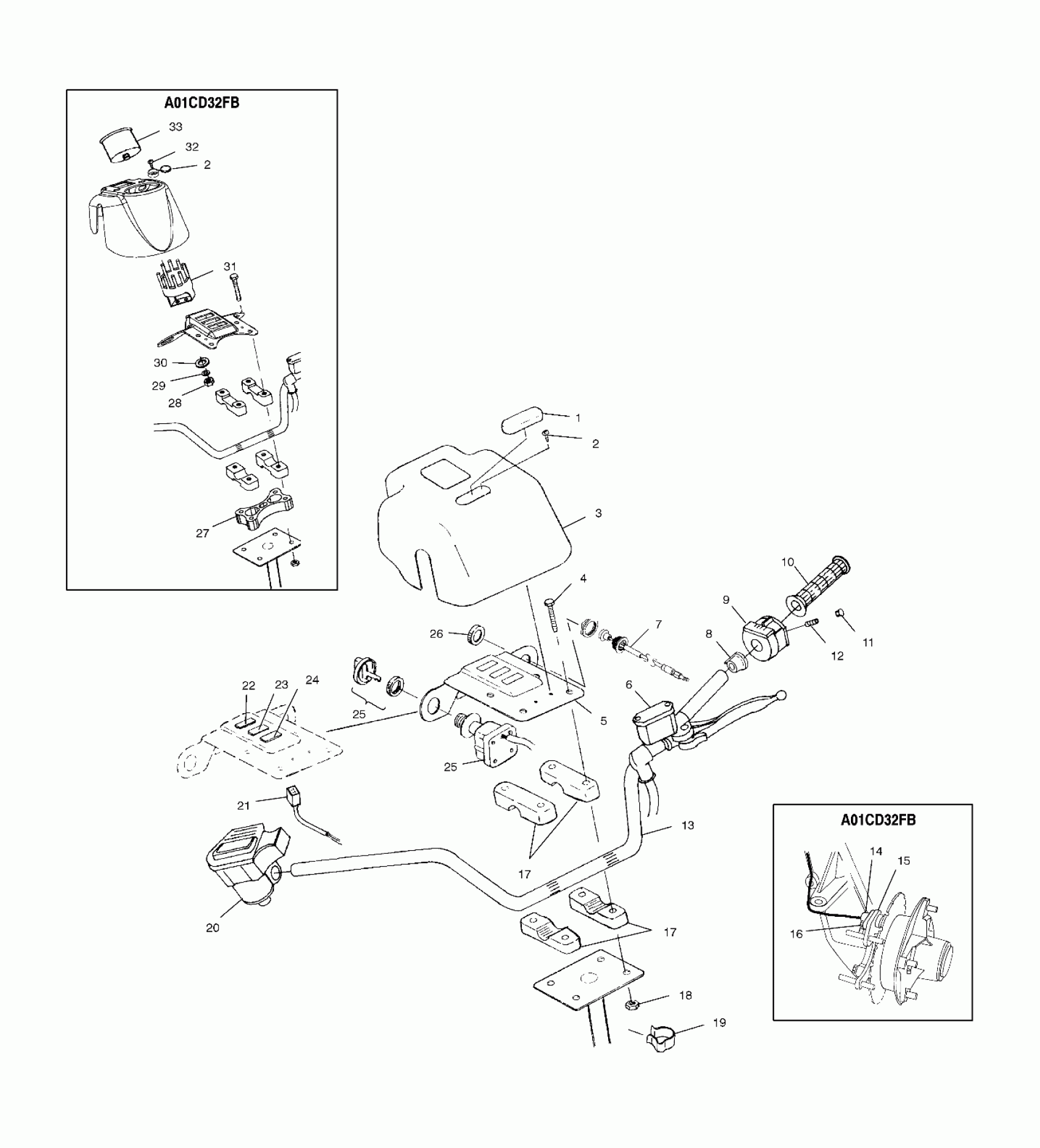

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB HANDLEBAR - A01CD32AA (4964026402C001) Diagram

#

Description
Price

1

COVER-LOGO, BLK

5432247-070

Unavailable

2

COVER,SCREW,HINGED,BLK

5432420

Unavailable

2

COVER,SCREW,HINGED,BLK

5432420

Unavailable

3

PANEL,INSTRUMENT,BLACK (FB)

5433843-070

$53.59

3

PANEL,INSTRUMENT,BLACK (AA)(AB)

5433842-070

Unavailable

4

SCREW (AA)(AB)

7517216

Unavailable

4

SCREW (FB)

7517224

Unavailable

5

BRKT,ACCESS.INST.PANEL,BLK (FB)

5241698-067

$6.63

5

BRKT-INSTRUMENT,PANEL,BLK (AA)(AB)

5244292-067

Unavailable

6

Asm., Master Cylinder (See Control - Master Cyl./Brake Line Pg. B13 for Details)

-------

Unavailable

7

CABLE-CHOKE,FRICTION,40"

7081008

$79.99

8

SPACER-SWITCH,LH,99

5433903

Unavailable

9

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

10

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$24.27

11

PLUG,HOLE(10)

5432952

$5.59

12

SCREW,SET (AA)(AB)

7517625

$4.79

12

DESC NOT_AVAILABLE (FB)

7517724

Unavailable

13

HANDLEBAR,TUBE,BLK (AA)(AB)

5224715-067

Unavailable

13

TUBE-HANDLEBAR,WIDE,BLK (FB)

5245182-067

$40.48

14

CAP-HALL SENSOR (FB)

5132382

$23.99

15

SENSOR,HALLEFFECT (FB)

4010298

$111.99

16

SCREW (FB)

7517658

$5.59

17

BLOCK,H'BAR,(300)

5630629

$11.59

17

BLOCK,H'BAR,(300)

5630629

$11.59

18

NUT-LOCK(10)

7542122

$1.49

19

CLIP,CABLE RETAIN,(10)

7080631

$6.29

20

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B12, Ref. 5)

-------

Unavailable

21

HARNESS-CONTROL PANEL,325 (AA)(AB)

2460715

Unavailable

21

HARNESS,CTRL.PNL,325,INTL (FB)

2460841

Unavailable

22

INDIC"NEUT./REV."

4040054

$31.99

23

INDIC"HOT TEMPERATURE"

4040053

$31.99

24

PLUG,INDIC.HOLE (AA)(AB)

5430967

$5.65

24

INDICATOR,"P",PARK (FB)

4010313

$15.08

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

25

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

25

SWITCH,IGNITION

4110264

$104.24

25

COVER, KEY Substituted by 5433534

5431964

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

25

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

25

SWITCH,IGNITION

4110264

$104.24

25

COVER, KEY Substituted by 5433534

5431964

Unavailable

26

NUT,CHOKE,M24X1.5 THD,M29 HEX

7080922

$3.19

27

BLOCK,RISER,300,GEN 4 (FB)

5630633

$19.03

28

NUT, BRASS(10) (FB)

7541933

$4.99

29

WASHER,13/64X1/2X18GA,FL-Y (FB)

7558212

$1.49

30

WASHER, LOCK,(S.S.)(10) (FB)

7555868

Unavailable

31

CABLE-SPEEDOMETER (FB)

3280201

Unavailable

32

SCREW,(10) (FB)

7512024

$4.79

33

SPEEDOMETER,MAG325,6PKM/H Substituted by 3280362 (FB)

3280345

Unavailable
