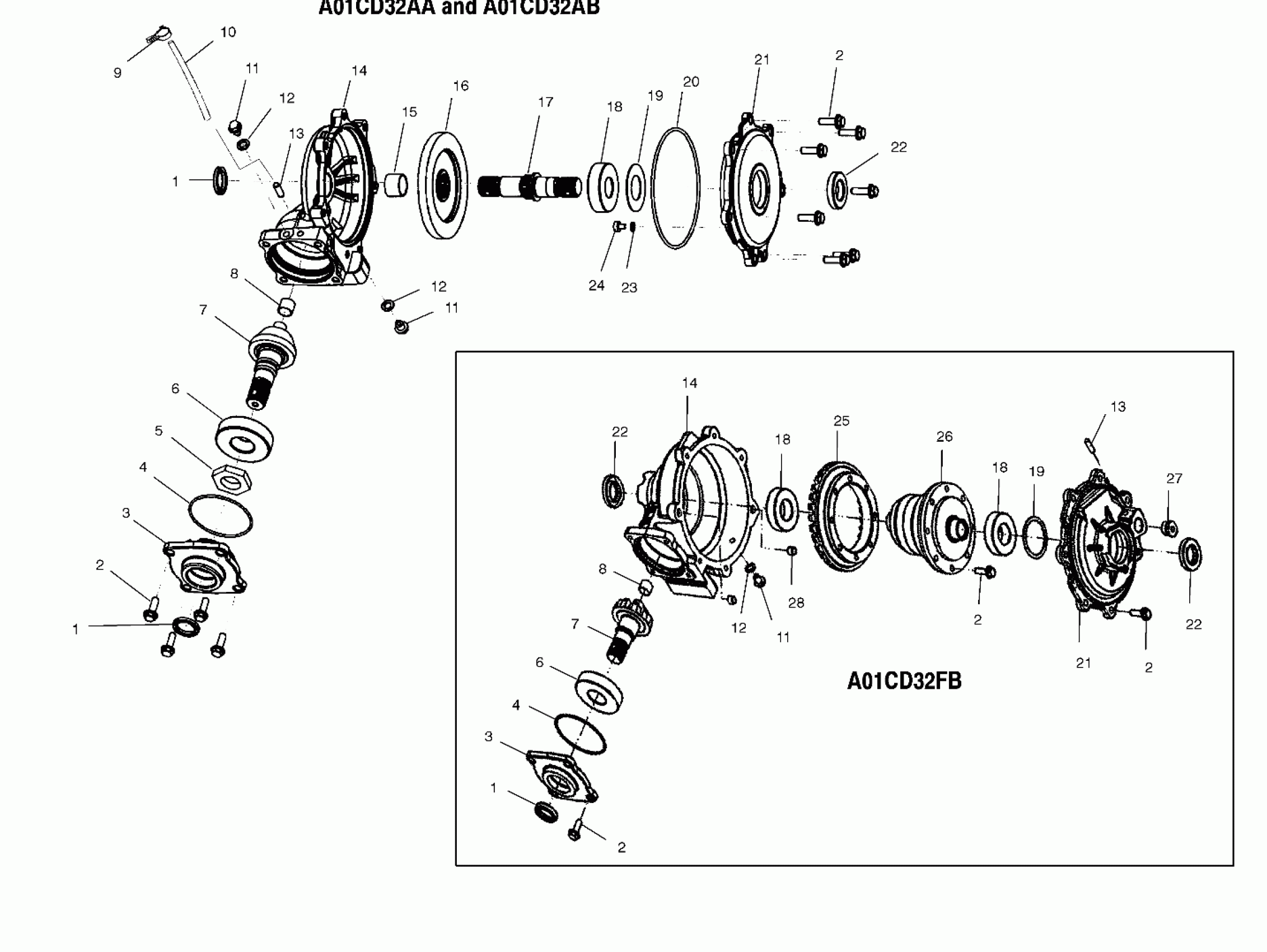

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB FRONT HOUSING - A01CD32AA (4964026402C012) Diagram

#

Description
Price

-

GEARCASE ASM,FRONT (Incl. 1-24)(AA)(AB)

1341253

Unavailable

-

GEARCASE,FRONT,VL,ASM. (FB)

1341351

Unavailable

1

SEAL (AA)(AB)

3233319

$27.99

1

SEAL-TRIPLE LIP (FB)

3233785

$19.99

1

SEAL (AA)(AB)

3233319

$27.99

1

SEAL-TRIPLE LIP (FB)

3233785

$19.99

1

SEAL (AA)(AB)

3233319

$27.99

1

SEAL-TRIPLE LIP (FB)

3233785

$19.99

2

SCREW (Qty. 19 for FB)

3233252

$5.27

2

SCREW (Qty. 19 for FB)

3233252

$5.27

2

SCREW (Qty. 19 for FB)

3233252

$5.27

2

SCREW (Qty. 19 for FB)

3233252

$5.27

2

SCREW (Qty. 19 for FB)

3233252

$5.27

3

GEARCASE,COVER (AA)(AB)

3233573

Unavailable

3

COVER-INPUT,FRONT HSG (FB)

3233786

Unavailable

3

GEARCASE,COVER (AA)(AB)

3233573

Unavailable

3

COVER-INPUT,FRONT HSG (FB)

3233786

Unavailable

4

O-RING 151

3233588

$10.55

4

O-RING 151

3233588

$10.55

5

NUT (AA)(AB)

3233574

Unavailable

6

BEARING,BALL

3233589

$59.99

6

BEARING,BALL

3233589

$59.99

7

SHAFT,HYPOID 10T 7DP F (AA)(AB)

3233590

Unavailable

7

PINION-10T (FB)

3233787

Unavailable

7

SHAFT,HYPOID 10T 7DP F (AA)(AB)

3233590

Unavailable

7

PINION-10T (FB)

3233787

Unavailable

8

Bushing

3233591

$6.63

8

Bushing

3233591

$6.63

9

CLIP,SNAP-IN

7080756

$4.79

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

PLUG, DRAIN Substituted by 3233777 (AA)(AB)

3233253

$34.99

11

PLUG-HEX FLANGE (FB)

3233777

$34.99

11

PLUG, DRAIN Substituted by 3233777 (AA)(AB)

3233253

$34.99

11

PLUG-HEX FLANGE (FB)

3233777

$34.99

11

PLUG, DRAIN Substituted by 3233777 (AA)(AB)

3233253

$34.99

11

PLUG-HEX FLANGE (FB)

3233777

$34.99

12

PLUG, WASHER (Qty. 1 for FB)

3233254

$7.99

12

PLUG, WASHER (Qty. 1 for FB)

3233254

$7.99

12

PLUG, WASHER (Qty. 1 for FB)

3233254

$7.99

13

TUBE,VENT

3233524

$7.19

13

TUBE,VENT

3233524

$7.19

14

GEARCASE,FRONT HOUSING (AA)(AB)

3233592

Unavailable

14

GEARCASE-FRONT HOUSING (FB)

3233789

$217.99

14

GEARCASE,FRONT HOUSING (AA)(AB)

3233592

Unavailable

14

GEARCASE-FRONT HOUSING (FB)

3233789

$217.99

15

BUSHING (AA)(AB)

3233593

Unavailable

16

GEAR,BEVEL 37T 7DP F (AA)(AB)

3233594

$237.59

17

SHAFT,OUTPUT,FRONT (AA)(AB)

3233595

$135.99

18

BEARING (AA)(AB)

3233020

$47.99

18

BEARING-BALL 6206 C3 30X62X16 (FB)

3233790

$27.99

18

BEARING (AA)(AB)

3233020

$47.99

18

BEARING-BALL 6206 C3 30X62X16 (FB)

3233790

$27.99

18

BEARING (AA)(AB)

3233020

$47.99

18

BEARING-BALL 6206 C3 30X62X16 (FB)

3233790

$27.99

19

SHIM

3233554

$30.79

19

SHIM

3233554

$30.79

20

O-RING 225 (AA)(AB)

3233596

Unavailable

21

GEARCASE,COVER OUTPUT (AA)(AB)

3233597

$85.71

21

COVER-OUTPUT,FRONT HSG (FB)

3233793

Unavailable

21

GEARCASE,COVER OUTPUT (AA)(AB)

3233597

$85.71

21

COVER-OUTPUT,FRONT HSG (FB)

3233793

Unavailable

22

SEAL (AA)(AB)

3233248

$30.88

22

SEAL-TRIPLE LIP (FB)

3233788

$31.99

22

SEAL (AA)(AB)

3233248

$30.88

22

SEAL-TRIPLE LIP (FB)

3233788

$31.99

22

SEAL (AA)(AB)

3233248

$30.88

22

SEAL-TRIPLE LIP (FB)

3233788

$31.99

23

SHIM .450 X .265 (AA)(AB)

3233583

$26.39

24

THRUST BUTTON (AA)(AB)

3233582

$7.91

25

GEAR-31T (FB)

3233791

Unavailable

26

DIFFERENTIAL-VISCO-LOK (FB)

3233792

Unavailable

27

PLUG-HEX,HOLLOW w/O-RING (FB)

3233794

$15.19

28

PIPE,KNOCK (FB)

3233529

$7.99
