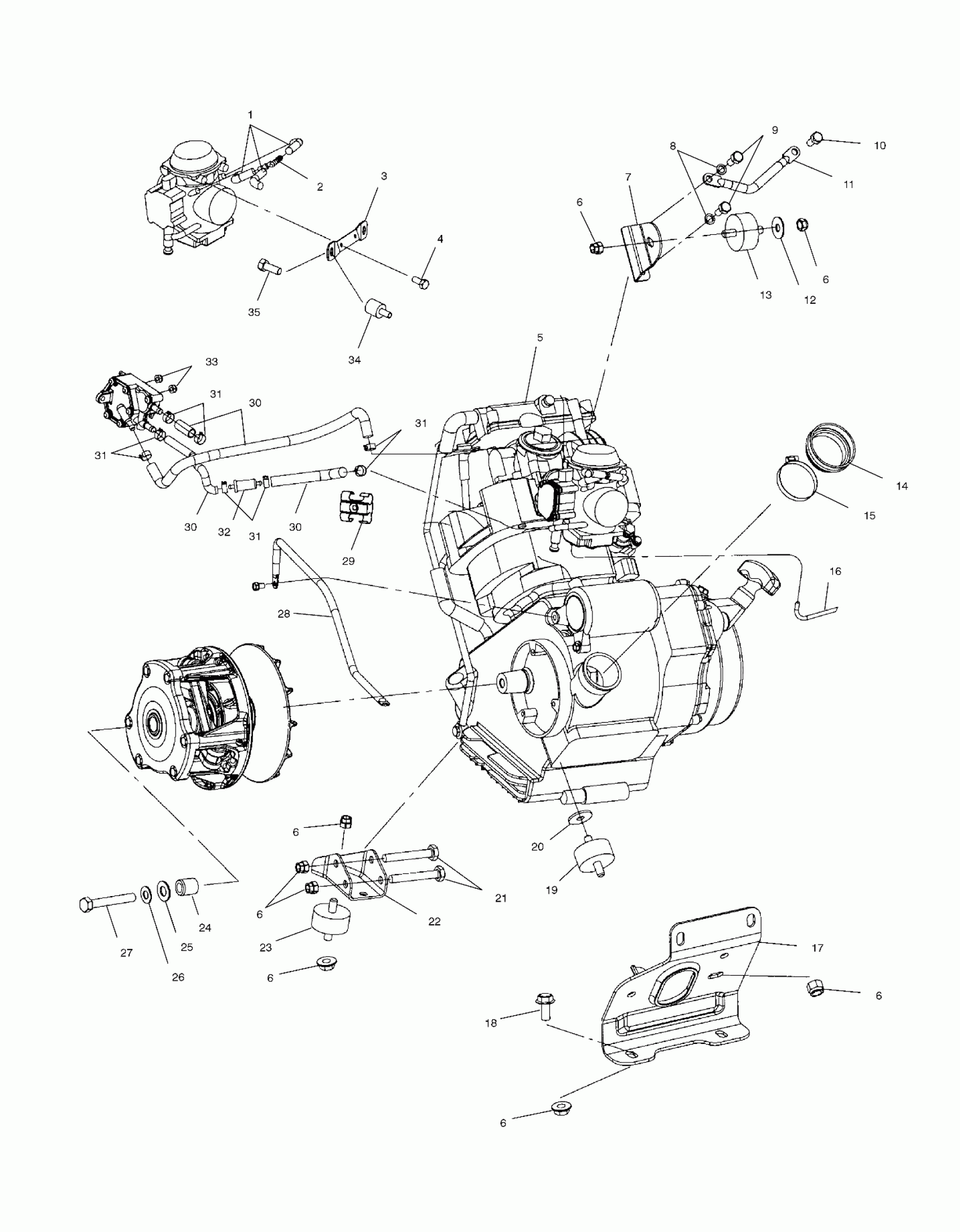

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB ENGINE MOUNTING - A01CD32AA (4964026402A013) Diagram

#

Description
Price

1

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

BRKT,CARB,325,BLK

5243720-067

Unavailable

4

SCREW & WASHER(10)

3084205

$3.99

5

ENG.ES32PFE06 Substituted by 1211728 The Short Block assembly contains a crankcase asm., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warr

3087021

Unavailable

5

ENGINE-ES32PFE07,SB Substituted by 1211713 The Short Block assembly contains a crankcase asm., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required fo

3087074

Unavailable

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

7

BRKT,MOTOR MOUNT,325,BLK

5243641-067

$5.71

8

LOCK WASHER(10)

7552901

$1.49

9

BOLT(10)

7512315

$4.79

10

BOLT(10)

7512232

$1.49

11

CABLE,GND-ENGINE

4010132

Unavailable

12

WASHER(10)

7555823

$3.99

13

MOUNT,R.RUBBER

3110068

$38.60

14

BOOT-CLUTCH INTAKE

5411721

Unavailable

15

CLAMP, NARROW BAND(10)

7080511

$4.79

16

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

17

MOUNT,ENGINE,REAR 325,BLK

1013133-067

$15.67

18

SCREW ,(10)

7517289

$4.79

19

MOUNT,RUBBER,REAR,60 DURO

3021119

Unavailable

20

WASHER, FLAT(10)

7555815

$3.99

21

BOLT(10)

7515417

$4.79

22

MOUNT-LOWER FRONT 325,BLK

5243288-067

Unavailable

23

MOUNT,RUBBER,ENGINE,45 DURO

3021181

Unavailable

24

BUSHING-.437 X.770 X.50

5430261

$7.19

25

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

26

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

27

BOLT(10)

7512566

$30.79

28

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

29

T-CLIP(10)

7080482

$6.39

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

31

HOSE CLAMP, RED

7080003

$1.49

31

HOSE CLAMP, RED

7080003

$1.49

31

HOSE CLAMP, RED

7080003

$1.49

31

HOSE CLAMP, RED

7080003

$1.49

32

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

33

NUT-M5X.8,HX NYL-Y

7546601

$1.49

34

MOUNT,RUBBER,CARB

3021086

$13.99

35

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19
