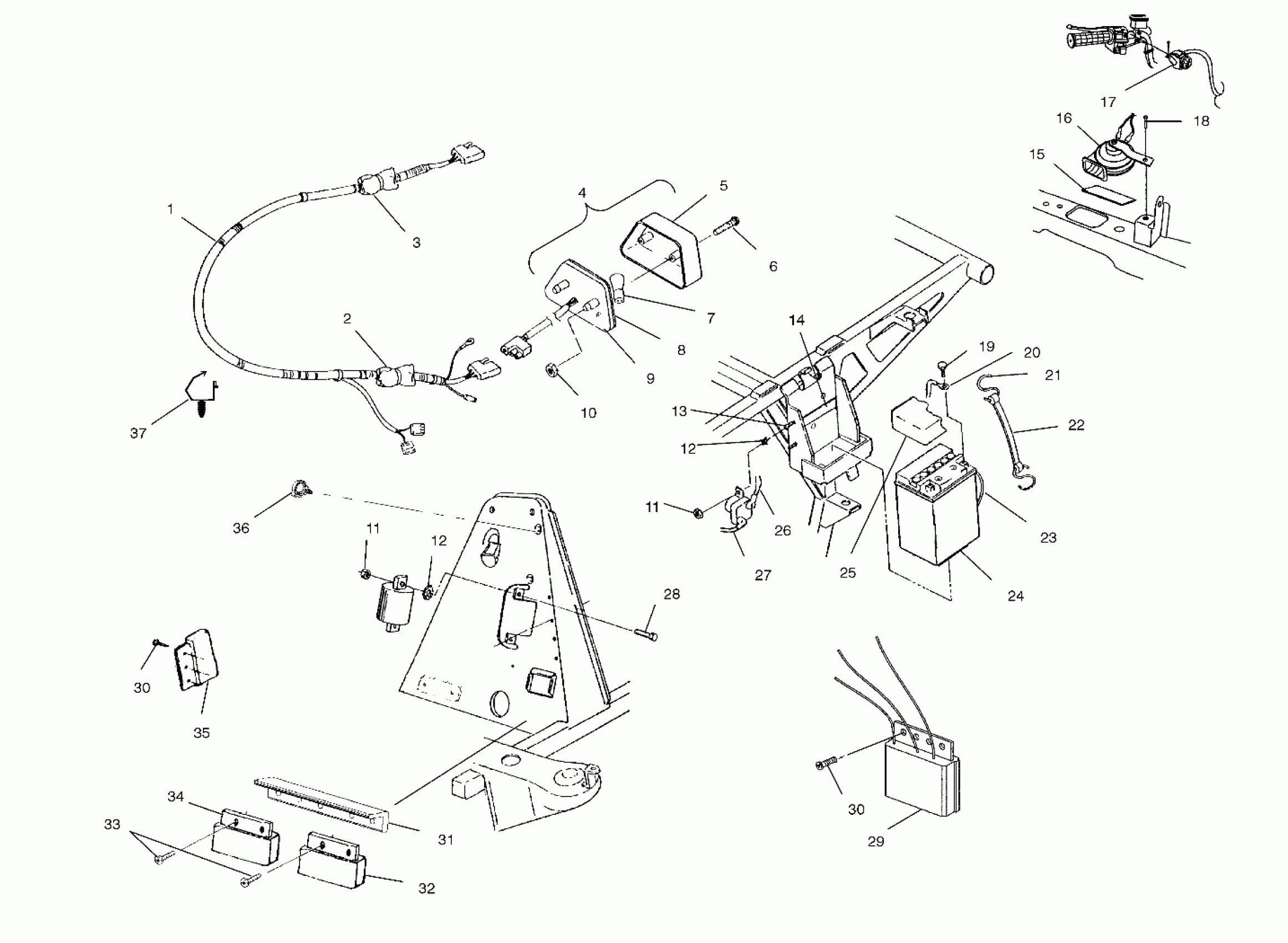

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB ELECTRICAL/TAILLIGHT - A01CD32AA (4964026402C008) Diagram

#

Description
Price

1

HARNESS-JUMPER THERMISTER (FB)

2460964

$18.89

1

HARNESS-WIRE,MAIN MAG 325 4X4 (AA)(AB)

2460962

$301.59

2

KIT,CKT.BRKR,20 AMP

2200593

$68.79

3

KIT-CIRCUT BREAKER,FAN

2201795

$72.84

4

TAIL LIGHT ASM. (Incl. 5-10)

2432034

$55.56

5

LENS,TAILLIGHT

4032046

$32.37

6

Screw, Taillight

4032029

$4.76

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,TAILLIGHT

4032045

$4.03

9

BACKING,TAILLIGHT

4032064

$83.33

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

11

NUT(10)

7541925

$0.79

11

NUT(10)

7541925

$0.79

12

WASHER(10)

7571602

$4.76

12

WASHER(10)

7571602

$4.76

13

SCREW(10)

7512027

$1.19

14

PAD-BATTERY

5810290

$7.27

15

PAD,FUELTANK BRKT. Substituted by 8360026 (FB)

5810317

Unavailable

16

HORN (FB)

4010310

Unavailable

17

SWITCH,HORN (FB)

4010311

$60.70

18

SCREW,(10) (FB)

7517386

$1.19

19

BOLT,BATT,KIT(SHORT)

2200361

Unavailable

20

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

21

HOOK-BATT.H/D(10)

7010032

$1.59

22

STRAP,BATTERY HOLDDOWN

5410424

$4.84

23

TUBE,BATTERY VENT

5432077

Unavailable

24

Battery

4140006

$99.99

25

COVER,BATTERY

5431769

$15.37

26

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

27

CABLE,SOL/STARTER

4010093

$48.56

28

SCREW(10)

7512007

$3.97

29

LIMITER,SPEED,63OHZ,CONN (FB)

4010354

$264.99

30

SCREW,(10)

7512024

$4.76

30

SCREW,(10)

7512024

$4.76

31

SINK,HEAT

5132214

$8.17

32

SWITCH-THERMISTER,LR-62

4010590

$399.99

33

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

34

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

35

LIMITER-RPM,HUB GROUND,LR83-3

4010195

Unavailable

36

CLIP,ROSEBUD

4020149

$6.35

37

CLIP-ROUTING

7670109

$2.38
