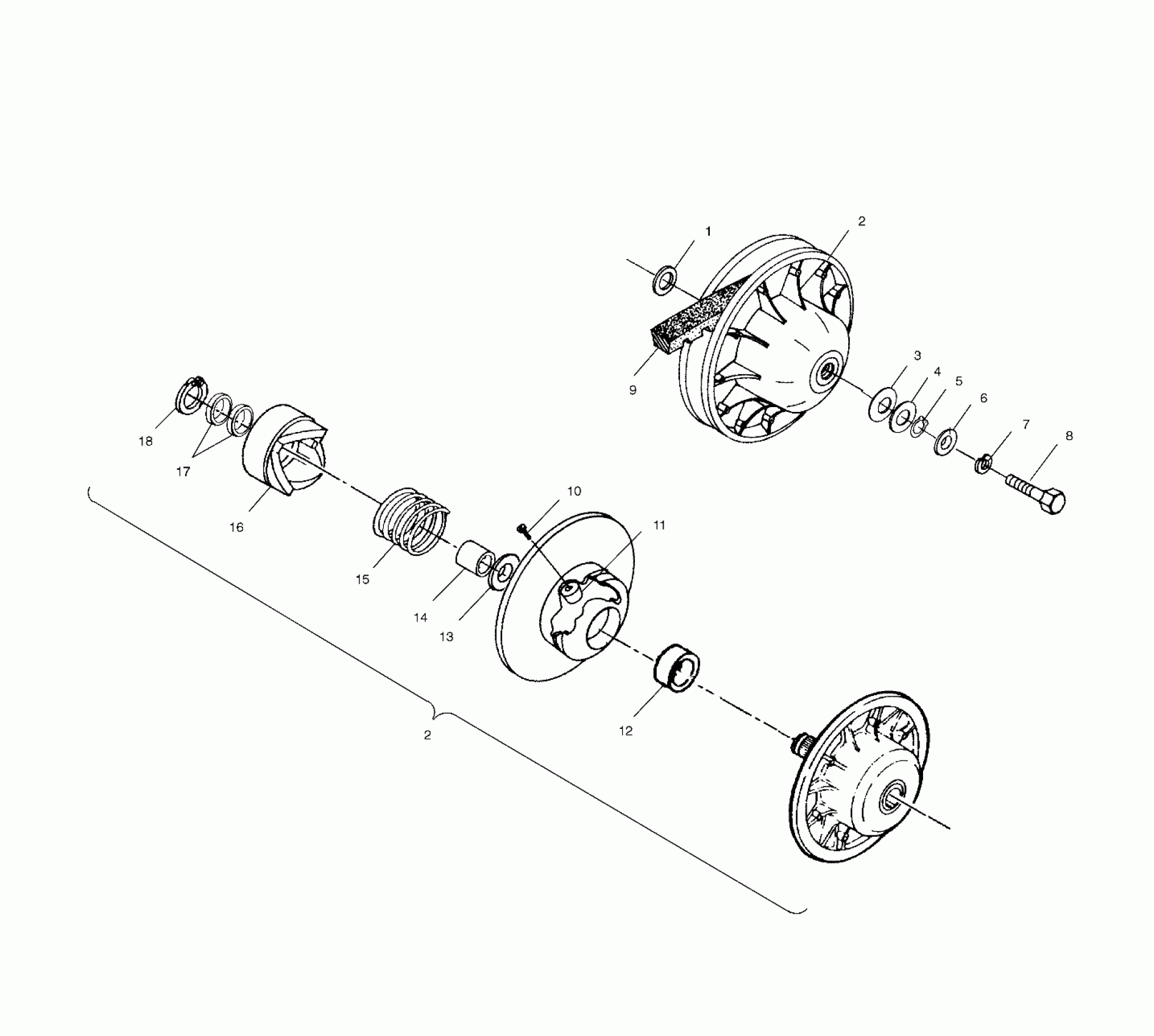

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB DRIVEN CLUTCH - A01CD32FB (4964026402C006) Diagram

#

Description
Price

1

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

Unavailable

2

CLUTCH,ASM.DRIVEN,EBS,31�,W/Y (Incl.10-14,17,18)

1321973

Unavailable

2

CLUTCH,ASM.DRIVEN,EBS,31�,W/Y (Incl.10-14,17,18)

1321973

Unavailable

3

Washer

7556013

Unavailable

4

Bushing

7556010

Unavailable

5

RING,RETAIN.HD.

7710461

Unavailable

6

WASHER, DOMED(10)

5220646

$2.39

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7515382

$2.39

9

BELT,DRIVE,ENG.BRK.(5)

3211069

$67.99

10

SCREW, SPECIAL

7517323

$13.59

11

ROLLER-TAPER,SP-21,MACH

1321977

$31.99

12

Bearing

3585710

$19.99

13

WASHER-2.06X2.62X.105-Y

5211115

$3.99

14

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

15

SPRING,DRVN,2-STK,WHT/YELLOW

7041635

$47.99

16

RAMP-STA,EBS,31�,MACH

5132751

Unavailable

17

SPACER(10)

5210753

$2.39

18

RING,RET.

7710448

$3.19
