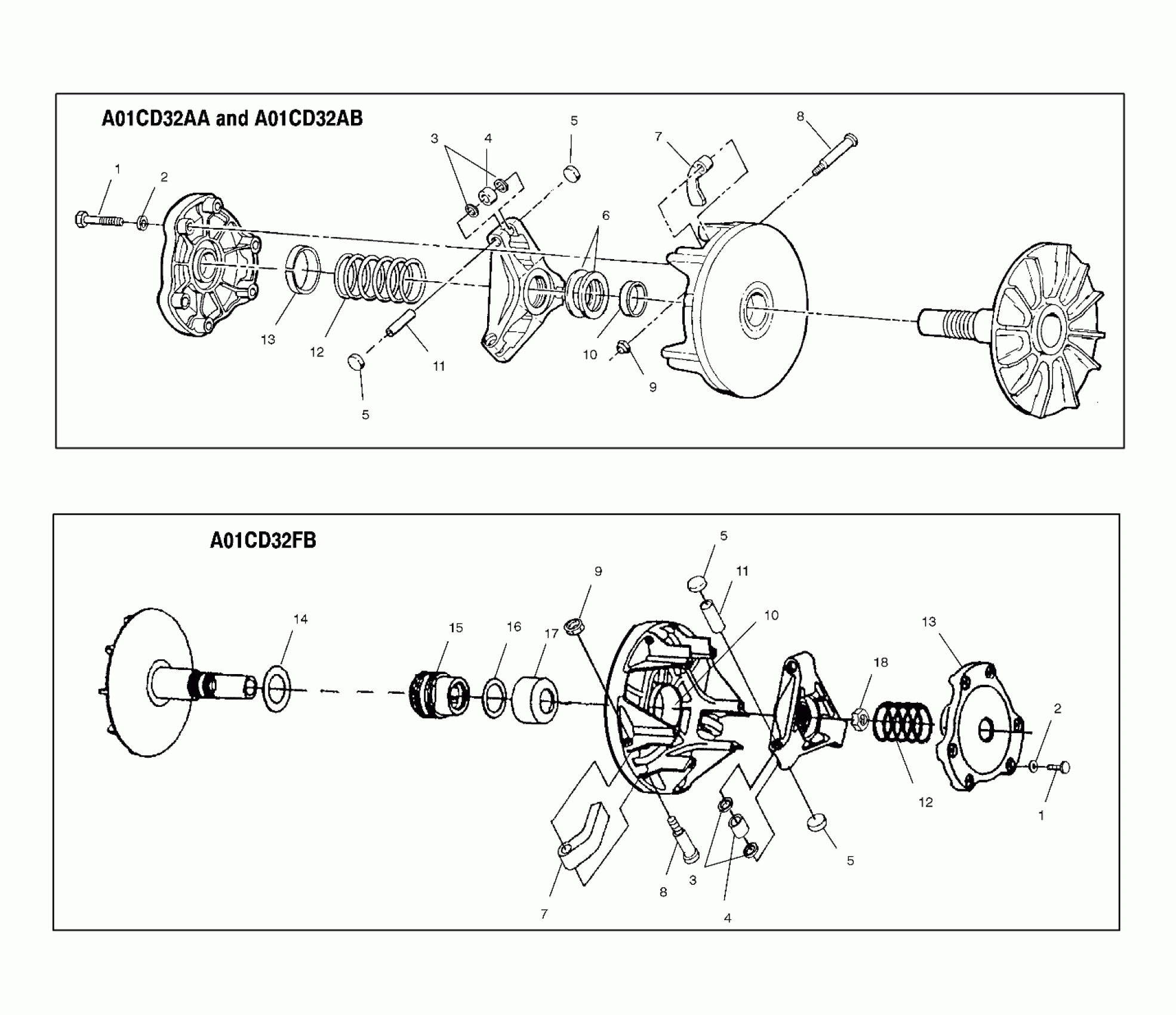

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB DRIVE CLUTCH - A00CD32AA (4964026402C004) Diagram

#

Description
Price

-

CLUTCH,DRIVE,BRAKING (Incl. All Less 7,12)(FB)

1321706

$562.31

-

CLUTCH,DRIVE(ATV-06) (Incl. All Less 7,12)(AA)(AB)

1321632

$697.13

1

BOLT(10) Substituted by 7512163

7512176

Unavailable

1

BOLT(10) Substituted by 7512163

7512176

Unavailable

2

LOCK WASHER(10)

7552801

$1.59

2

LOCK WASHER(10)

7552801

$1.59

3

WASHER,MULTILUBE

5430945

$1.59

3

WASHER,MULTILUBE

5430945

$1.59

4

ASM-ROLLER AND BUSHING

1321457

$40.46

4

ASM-ROLLER AND BUSHING

1321457

$40.46

5

BUTTON,CLUTCH

5431936

Unavailable

5

BUTTON,CLUTCH

5431936

Unavailable

5

BUTTON,CLUTCH

5431936

Unavailable

5

BUTTON,CLUTCH

5431936

Unavailable

6

SPACER(10) (.050)(AA)(AB)

5210754

Unavailable

6

SPACER(10) (.025)(AA)(AB)

5242981

Unavailable

6

SPACER(10) (.020)(AA)(AB)

5210752

Unavailable

6

SPACER(10) (.032)(AA)(AB)

5210753

Unavailable

7

WT,SHIFT, 10MH(6) (FB)

5630513

$30.88

7

WT.,CLUTCH,16(6) (AA)(AB)

5630279

$31.99

7

WT,SHIFT, 10MH(6) (FB)

5630513

$30.88

7

WT.,CLUTCH,16(6) (AA)(AB)

5630279

$31.99

8

BOLT,SPECIAL(10)

7512266

$3.19

8

BOLT,SPECIAL(10)

7512266

$3.19

9

NUT FLEX LOC(10)

7541906

$3.19

9

NUT FLEX LOC(10)

7541906

$3.19

10

BEARING (FB)

3585712

$31.99

10

BUSHING, DRIVEN (1/2I)(AA)(AB)

3576504

$23.99

10

BEARING (FB)

3585712

$31.99

10

BUSHING, DRIVEN (1/2I)(AA)(AB)

3576504

$23.99

11

PIN-ROLLER

5020422

$2.39

11

PIN-ROLLER

5020422

$2.39

12

SPRING,CLUTCH

7041157

$47.99

12

SPRING,CLUTCH

7041157

$47.99

13

BEARING, COVER,(10)

3576510

$9.59

13

BEARING, COVER,(10)

3576510

$9.59

14

WASHER Substituted by 7556204 (FB)

7556008

$10.80

15

CLUTCH,DRIVE,1-WAY,HLRD (FB)

1520231

$294.99

16

WASHER Substituted by 7556202 (FB)

7556009

$6.17

17

SPACER-1.25X2.25,PM (FB)

5631119

Unavailable

18

NUT,JAM Substituted by 2201615 (FB)

7547130

Unavailable
