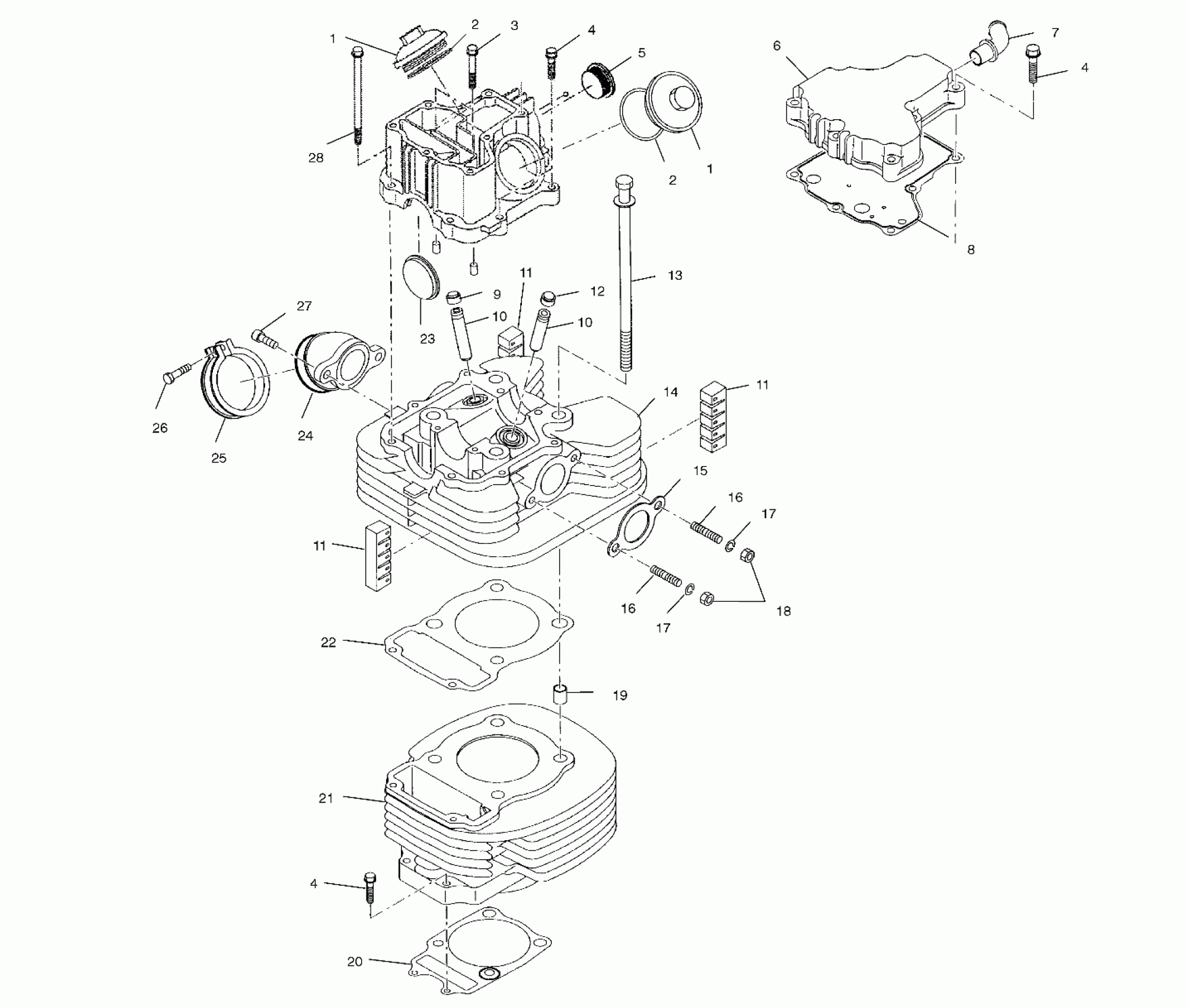

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB CYLINDER - A01CD32AA (4964026402D009) Diagram

#

Description
Price

1

COVER-VALVE

3086413

Unavailable

1

COVER-VALVE

3086413

Unavailable

2

O-Ring

3086414

Unavailable

2

O-Ring

3086414

Unavailable

3

BOLT,FLANGE

3086412

$3.97

4

BOLT, FLANGE

3084874

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

5

PLUG,CYLINDER BLOCK

3086417

Unavailable

6

COVER-BREATHER

3087033

Unavailable

7

Pipe

3085850

$52.60

8

GASKET-COVER

3087034

$28.32

9

SEAL,INTAKE VALVE

3084858

$13.75

10

GUIDE,VALVE

3084994

Unavailable

10

GUIDE,VALVE

3084994

Unavailable

11

Fin Damper A

3084798

$36.41

11

Fin Damper A

3084798

$36.41

11

Fin Damper A

3084798

$36.41

12

SEAL,EXHAUST VALVE

3084859

$24.27

13

Bolt and Washer

3086418

$12.99

14

DESC NOT_AVAILABLE (Incl. 3,4,10-12,14,16)

3087118

$704.99

15

GASKET-EXHAUST

3086421

Unavailable

16

STUD,(10)

3085326

Unavailable

16

STUD,(10)

3085326

Unavailable

17

WASHER LOCK ,(10)

3080530

$3.17

17

WASHER LOCK ,(10)

3080530

$3.17

18

NUT(10)

3080285

Unavailable

19

PIN,STRAIGHT

3084838

Unavailable

20

GASKET-CYLINDER

3086407

$32.37

21

CYLINDER,UNIT

3086883

Unavailable

22

GASKET-HEAD

3086415

Unavailable

23

GASKET-CAM

3086416

Unavailable

24

Adapter

3087050

$72.84

25

BAND ASM. (Incl. 26)

3083166

$19.84

26

SCREW,(10)

3081497

$2.38

27

BOLT (SOCKET HEAD) Substituted by 3081330

3086786

$3.97

28

BOLT,FLANGE

3086419

Unavailable
