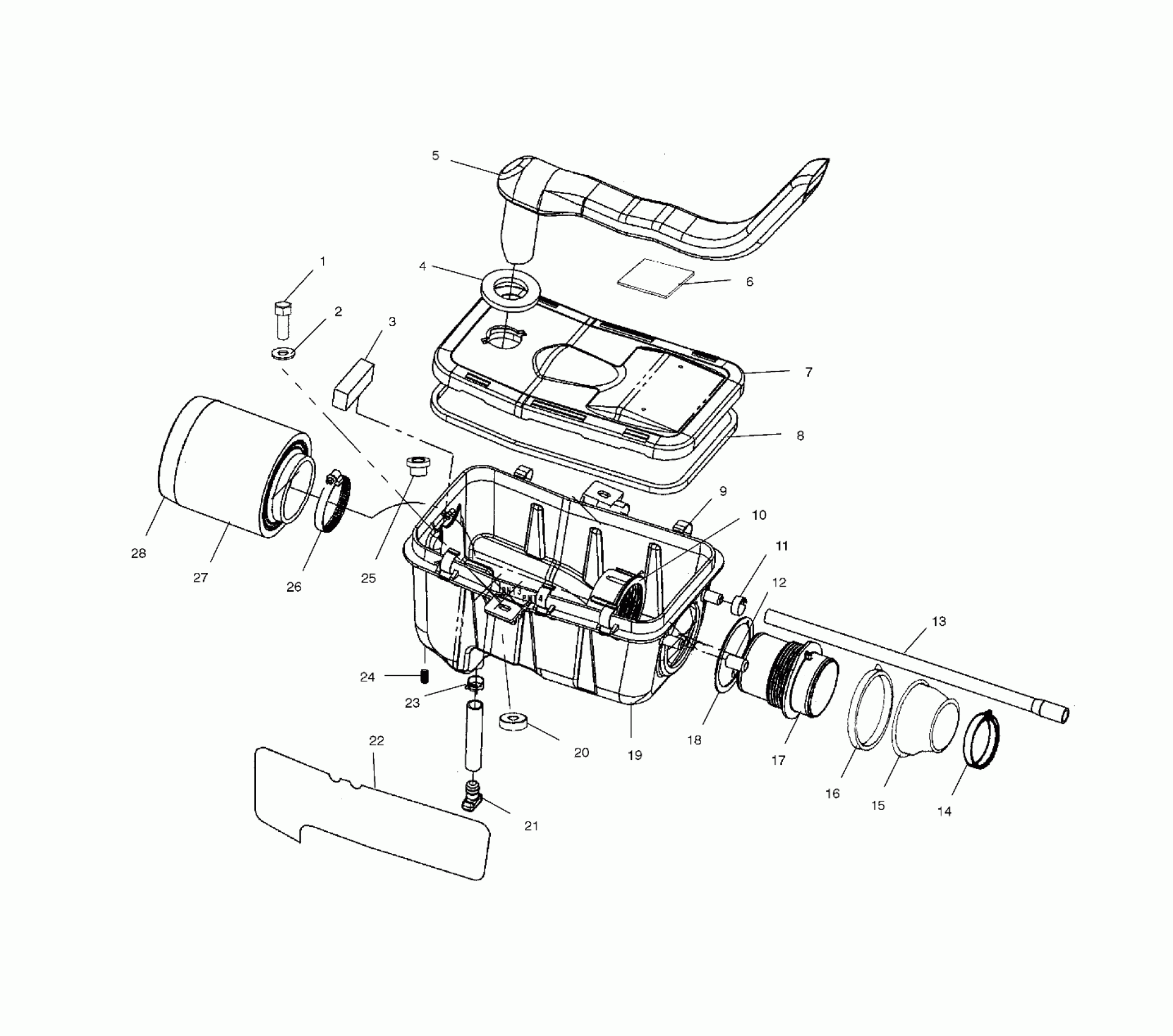

Polaris 325 MAGNUM 4X4 HDS - A01CD32FB AIR BOX (If built after 1/08/01) - A01CD32AA (4964026402A012) Diagram

#

Description
Price

1

Screw

7515180

Unavailable

2

Washer, Flat

7555859

$1.49

3

Filter, Air Box Vent

5812137

$1.49

4

Seal, Intake

5812023

$6.63

5

Duct, Inlet

5433920

Unavailable

6

Pad, Fuel Tank Bracket

5810317

Unavailable

7

Cover, Air Box

5433769

$89.99

8

Seal, Air Box Cover

5811482

Unavailable

9

CLIP-AIR BOX

5242044

$9.59

10

Collar, Carb Inlet

5432601

$12.79

11

Clamp, Hose

7080699

$1.59

12

CAP, RUBBER

5412101

$5.59

13

Hose, Breather

5411866

$11.59

14

Clamp, Narrow Band

7080511

$4.79

15

Boot, Carburetor

5411588

Unavailable

16

Clamp, Narrow Band

7080413

$3.19

17

Duct, Carb Inlet

5433180

$32.37

18

Gasket, Carb Inlet

5830128

Unavailable

19

Box, Air Intake, 4 Stroke

5433768

Unavailable

20

Washer, Nylon

7555932

$2.39

21

Plug, Trap

5432377

Unavailable

22

Foil, Air Box, RH

5812111

Unavailable

23

Clamp, Hose

7080650

$3.99

24

Cap, Rubber

5412099

$4.03

25

Cap, Rubber

5412099

$4.03

26

Clamp, Narrow Band

7080413

$3.19

27

Precleaner

5811660

$5.59

28

Asm., Filter (Incl. 27) (Incl. 27)

1253372

$27.99
