Description

Price

1

Pin

1930860

Unavailable

1

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer and Pin)

2201189

$31.75

1

SPACER,PAD

1910339

Unavailable

2

SCREW CAP(10)

7515406

$7.19

3

WASHER(10)

7555806

$1.49

4

Kit, Bleeder Replacement

2201428

$27.99

4

PISTON, CALIPER, DH2P, REAR

2201467

$89.03

4

CALIPER ASM,R.BRAKE,WW Substituted by 1910367 (If built before 2/09/99)

1910270

$250.96

4

Kit, Caliper Seal

2201385

$64.75

4

CALIPER ASM.BRAKE,DH2P (If built after 2/09/99)

1910367

$250.96

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

6

LINE-BRAKE,FRT HAND,MAST CYL

1910286

Unavailable

7

LINE-BRAKE,REAR FOOT,MAST CYL

1910288

Unavailable

7

LINE-BRAKE,REAR FOOT,MAST CYL

1910288

Unavailable

8

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

9

SCREW,(10)

7517386

$1.49

9

SCREW,(10)

7517386

$1.49

10

CLIP,BRAKELINE,(.250 ID)

7080762

Unavailable

11

RIVET(50)

7661048

Unavailable

12

CLIP-T,DUAL 3/16" LINE

7080816

$5.43

13

BOLT,BANJO,BRAKE

1930674

Unavailable

13

BOLT,BANJO,BRAKE

1930674

Unavailable

14

NUT LOCK(10)

7542403

$3.99

15

NUT(10)

7542153

$1.59

16

RESERVOIR ASM,R.BRAKE

1930854

$35.99

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

HOSE-RESERVOIR,HB

1910331

$4.95

18

HOSE-RESERVOIR,HB

1910331

$4.95

19

BOLT(10)

7512240

$3.99

19

BOLT(10)

7512240

$3.99

19

BOLT(10)

7512240

$3.99

20

MT,PIVOT,R.BRAKE,BLK.

1012753-067

Unavailable

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

22

WASHER(10)

7558301

$1.49

22

WASHER(10)

7558301

$1.49

23

BRAKE ROD,HB,PVT,BLK

1012752-067

Unavailable

24

WASHER(10)

7555919

$4.99

24

WASHER(10)

7555919

$4.99

25

COTTER PIN(10)

7661401

$1.49

26

WASHER,SPRING

7556090

$2.63

27

BUSHING-PEDAL PIVOT

5433189

$3.99

27

BUSHING-PEDAL PIVOT

5433189

$3.99

28

SCREW(10)

7515158

$4.79

29

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

30

SPRING-TORSION,BRAKE

7041750

$8.79

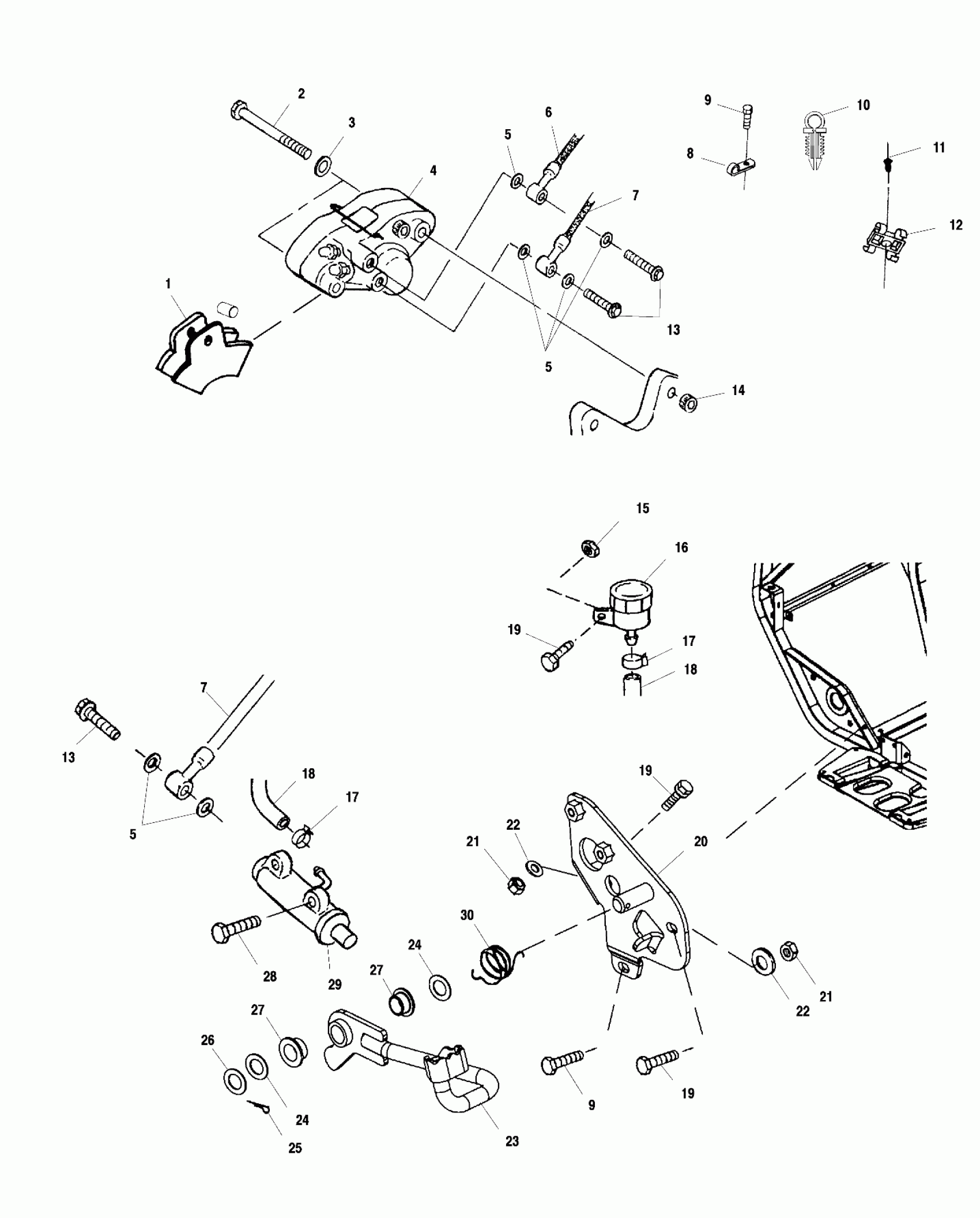

Polaris 325 MAGNUM 4X4 HDS - A00CD32FA REAR BRAKE - A00CD32AA (4949404940C005) Diagram

Pin

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer and Pin)

SPACER,PAD

SCREW CAP(10)

WASHER(10)

Kit, Bleeder Replacement

PISTON, CALIPER, DH2P, REAR

CALIPER ASM,R.BRAKE,WW Substituted by 1910367 (If built before 2/09/99)

Kit, Caliper Seal

CALIPER ASM.BRAKE,DH2P (If built after 2/09/99)

Seal

Seal

Seal

LINE-BRAKE,FRT HAND,MAST CYL

LINE-BRAKE,REAR FOOT,MAST CYL

LINE-BRAKE,REAR FOOT,MAST CYL

CLAMP,RUBBER-COATED,.562(10)

SCREW,(10)

SCREW,(10)

CLIP,BRAKELINE,(.250 ID)

RIVET(50)

CLIP-T,DUAL 3/16" LINE

BOLT,BANJO,BRAKE

BOLT,BANJO,BRAKE

NUT LOCK(10)

NUT(10)

RESERVOIR ASM,R.BRAKE

HOSE CLAMP, RED

HOSE CLAMP, RED

HOSE-RESERVOIR,HB

HOSE-RESERVOIR,HB

BOLT(10)

BOLT(10)

BOLT(10)

MT,PIVOT,R.BRAKE,BLK.

NUT-LOCK(10)

NUT-LOCK(10)

WASHER(10)

WASHER(10)

BRAKE ROD,HB,PVT,BLK

WASHER(10)

WASHER(10)

COTTER PIN(10)

WASHER,SPRING

BUSHING-PEDAL PIVOT

BUSHING-PEDAL PIVOT

SCREW(10)

BRAKE MSTR CYL,FOOT,BANJO

SPRING-TORSION,BRAKE
