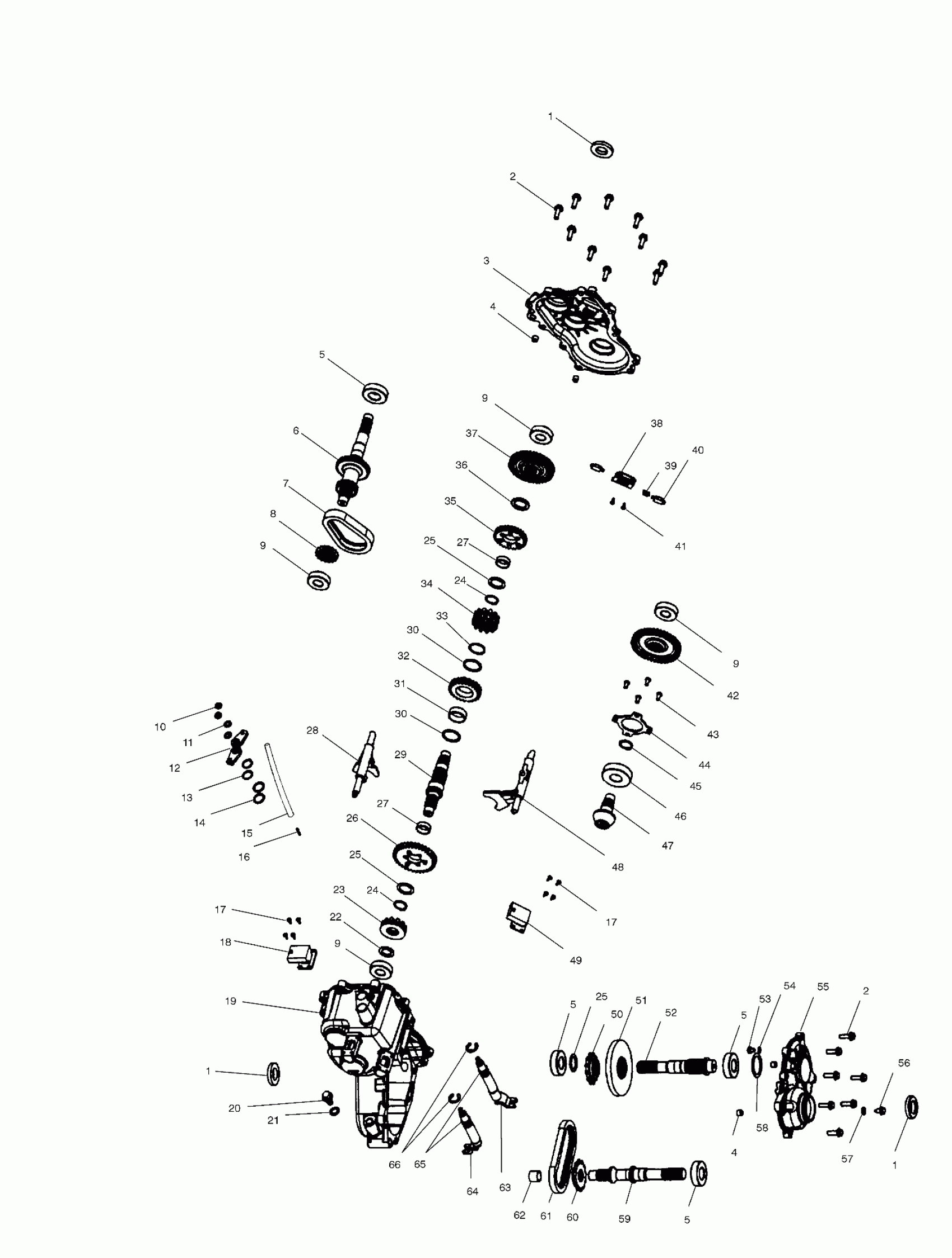

Polaris 325 MAGNUM 4X4 HDS - A00CD32FA MAIN GEARCASE - A00CD32AA (4949404940C009) Diagram

#

Description
Price

-

GEARCASE,SHAFT 4WD 325 (Incl. 1-less 11)(AA)(CA)(FB)

1341296

Unavailable

-

GEARCASE,SHFT 4WD PRD,INTL (Incl. 1-48,50-66)(FA)

1341336

Unavailable

1

SEAL (FA)

3233248

$30.88

1

Seal (AA)(CA)(FB)

3233788

$31.99

1

SEAL (FA)

3233248

$30.88

1

Seal (AA)(CA)(FB)

3233788

$31.99

1

SEAL (FA)

3233248

$30.88

1

Seal (AA)(CA)(FB)

3233788

$31.99

2

Screw

3233252

$5.27

2

Screw

3233252

$5.27

3

GEARCASE,LH (AA)(CA)(FB)

3233610

Unavailable

3

COVER-W/PARK LOCK,LH (FA)

3233763

Unavailable

4

PIPE,KNOCK

3233529

$7.99

4

PIPE,KNOCK

3233529

$7.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

6

SHAFT-INPUT (FA)

3233756

Unavailable

6

SHAFT,INPUT 31T (AA)(CA)(FB)

3233604

$188.40

7

CHAIN,SILENT,34P

3233036

Unavailable

8

GEAR,16T (AA)(CA)(FB)

3233603

$82.39

8

GEAR-14/19T (FA)

3233755

$135.71

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

10

Nut, Lock (AA)(CA)(FB)

3233961

$2.79

10

NUT, FLEXLOC (FA)

3233055

Unavailable

11

Washer

3233054

$6.46

12

Bellcrank

3233153

$27.99

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

14

Washer

3233040

$9.59

15

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

16

Vent

3233037

Unavailable

17

SCREW

3233749

$5.59

17

SCREW

3233749

$5.59

18

SWITCH, 3 Position (Qty. 2 for FA)

3234019

Unavailable

19

GEARCASE,Main (AA)(CA)(FB)

3233902

Unavailable

19

GEARCASE-MAIN (FA)

3233765

$989.99

20

PLUG,OIL FILL

3233711

Unavailable

21

Washer

3233872

$9.59

22

Washer

3233628

Unavailable

23

ENGAGEMENT DOG,LOW (AA)(CA)(FB)

3233732

$169.98

23

ENGAGEMENT-LOW/PARK (FA)

3233758

$115.99

24

RING,RETAINING

3233306

$4.79

24

RING,RETAINING

3233306

$4.79

25

WASHER,THRUST

3233619

$21.99

25

WASHER,THRUST

3233619

$21.99

25

WASHER,THRUST

3233619

$21.99

26

GEAR,35T (AA)(CA)(FB)

3233631

$133.59

26

GEAR-36T (FA)

3233760

$146.39

27

BEARING, NEEDLE

3233103

$31.99

27

BEARING, NEEDLE

3233103

$31.99

28

SHIFT FORK

3233602

Unavailable

29

SHAFT REVERSE (AA)(CA)(FB)

3233598

Unavailable

29

SHAFT-REVERSE (FA)

3233761

Unavailable

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

BEARING, NEEDLE

3233014

$43.99

32

SPROCKET,24T

3233599

Unavailable

33

RING,RETAINING

3233029

$5.59

34

DOG,ENGAGE,12PT,HI/REV

3234020

Unavailable

35

GEAR,30T

3233600

$198.32

36

Spacer

3233613

$3.51

37

GEAR,HELICAL,36T (AA)(CA)(FB)

3233708

Unavailable

37

GEAR-HELICAL.34T (FA)

3233762

Unavailable

38

BRACKET,INTERLOCK

3233309

$20.63

39

Spring

3233032

$12.94

40

PIN,INTERLOCK

3233308

Unavailable

41

SCREW-TAPPING,W/LOCK WASHER

3233747

Unavailable

42

GEAR-HELICAL,50T (FA)

3233764

Unavailable

42

GEAR,HELICAL,48T (AA)(CA)(FB)

3233709

$178.57

43

SCREW (Qty. 8 for FA)

3233608

$5.99

44

COVER,BEARING

3233609

$19.99

45

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

46

BEARING,BALL

3233607

$36.41

47

Subasm., Ground Spiral Bevel [Incl. 51]

3234912

$595.54

48

SHIFT,FORK,LOW (AA)(CA)(FB)

3233605

Unavailable

48

FORK-SHIFT,LOW/PARK (FA)

3233759

$206.39

49

SWITCH,ITW 2 POSITION (AA)(CA)(FB)

3234001

Unavailable

50

SPROCKET,12T

3233620

Unavailable

51

Subasm., Ground Spiral Bevel [Incl. 47]

3234912

$595.54

52

SHAFT,REAR OUTPUT

3233622

Unavailable

53

THRUST BUTTON

3233582

$7.91

54

SHIM .450 X .265

3233583

$26.39

55

Cover, Output (AA)(CA)(FB)

3233781

$275.22

55

COVER,OUTPUT (FA)

3233623

$275.22

56

PLUG, DRAIN Substituted by 3233777 (FA)

3233253

$34.99

56

Plug, Drain (AA)(CA)(FB)

3233777

$34.99

57

PLUG, WASHER

3233254

$7.99

58

SHIM

3233611

$26.39

59

SHAFT,FRONT OUTPUT

3233625

$139.99

60

SPROCKET (12T)

3233093

Unavailable

61

ROLLER CHAIN,24P

3233626

Unavailable

62

BUSHING-GARLOCK

3233552

$23.99

63

SHIFT SHAFT

3233624

$58.73

64

SHIFT SHAFT

3233627

Unavailable

65

O-Ring

3233548

$27.99

66

RING,RETAINING

3233618

$1.75
