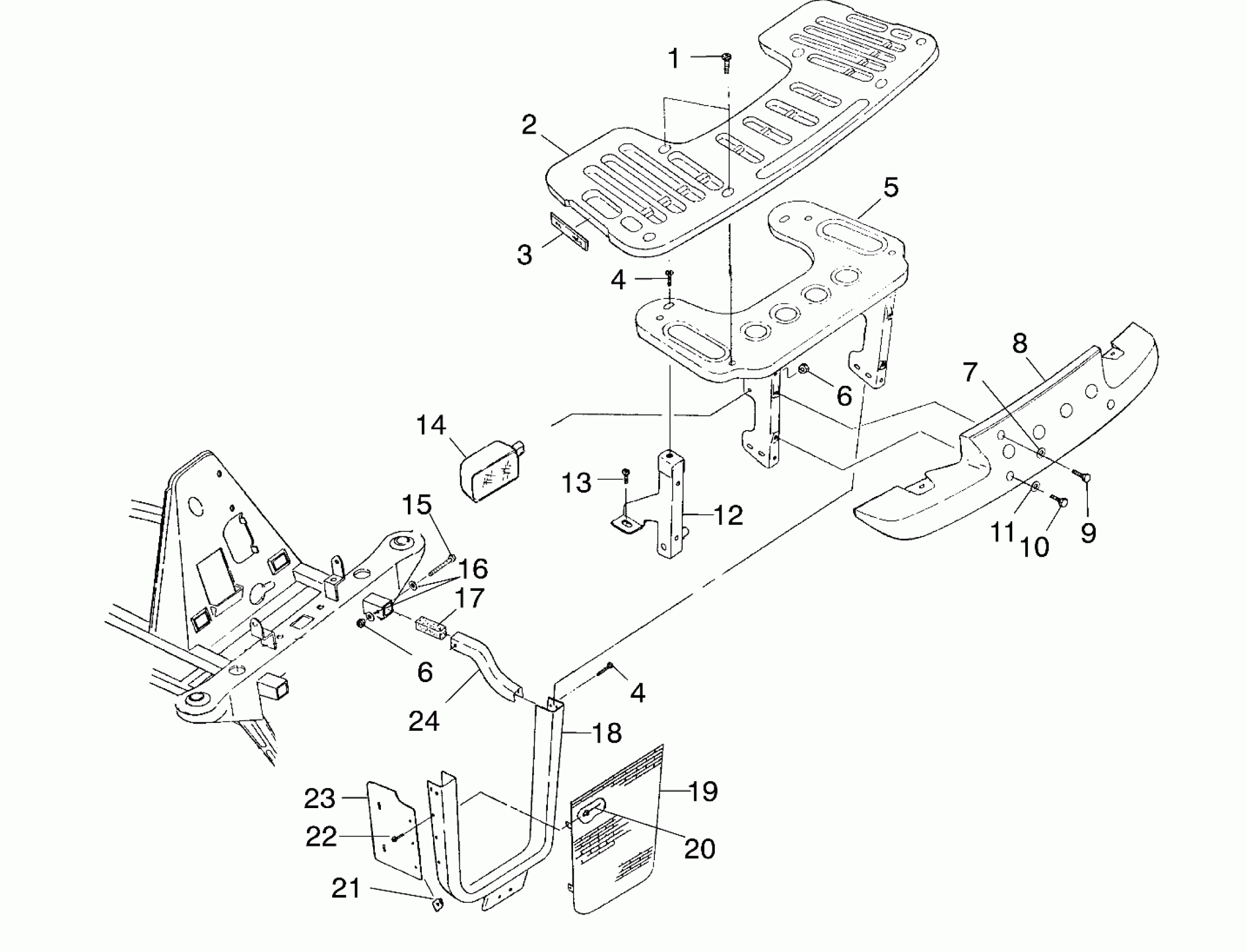

Polaris 325 MAGNUM 4X4 HDS - A00CD32FA FRONT RACK and BUMPER MOUNTING - A00CD32AA (4949404940A009) Diagram

#

Description
Price

1

SCREW(10)

7517685

$1.59

2

RACK ASM,FRONT Substituted by 2670180-070 (Incl. Ref. 3 and Warning Decal)

2670180

Unavailable

3

REFLECTOR AMBER

2670071

Unavailable

4

SCREW(10)

7515399

$1.49

4

SCREW(10)

7515399

$1.49

5

KIT,FRT.RACK MOUNT

2200775

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

WASHER WROUGHT(10)

7558403

$4.79

8

BUMPER,BLK.

5432155-070

$143.99

9

BOLT(10)

7515391

$4.79

10

BOLT(10)

7515390

Unavailable

11

WASHER(10)

7555954

$4.79

12

SUPPORT,LH,F.RACK Substituted by 1013210-067 (If built before 11/15/99)

1040554-067

$69.99

12

SUPPORT,RH,F.RACK Substituted by 1013211-067 (If built before 11/15/99)

1040555-067

Unavailable

12

SUPPORT,FRT.RACK,LH,BLK (If built after 11/15/99)

1013210-067

$69.99

12

SUPPORT,FRT. RACK,RH,BLK (If built after 11/15/99)

1013211-067

$64.99

13

SCREW,(10)

7517386

$1.49

14

BULB,H/L

4030061

Unavailable

14

H/L ASM,LH,30/30W (LH)

2431011

Unavailable

14

H/L ASM,RH,30/30W (RH)

2431012

Unavailable

15

BOLT(10)

7515382

$2.39

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

PLUG, FRAME

5810467

Unavailable

18

GUARD,BRUSH,BLK

5241583-067

Unavailable

19

GRILL,BRUSHGUARD,BLK.

5240591-067

$62.99

20

RIVET, POP(50)

7621330

$1.49

21

NUT(10)

7670094

$5.59

22

SCREW(10)

7512097

$3.99

23

SHIELD,LH RADIATOR

5431814

Unavailable

23

SHIELD,RH RADIATOR

5431815

Unavailable

24

EXTENSION,LH.FRAME,BLK. (If built before 12/01/99)

5241398-067

$91.27

24

EXTENSION,RH.FRAME,BLK. (If built before 12/01/99)

5241399-067

Unavailable

24

EXTENSION,FRAME,LH,BLK (If built after 12/01/99)

5244623-067

Unavailable

24

EXTENSION,FRAME,RH,BLK (If built after 12/01/99)

5244624-067

Unavailable
