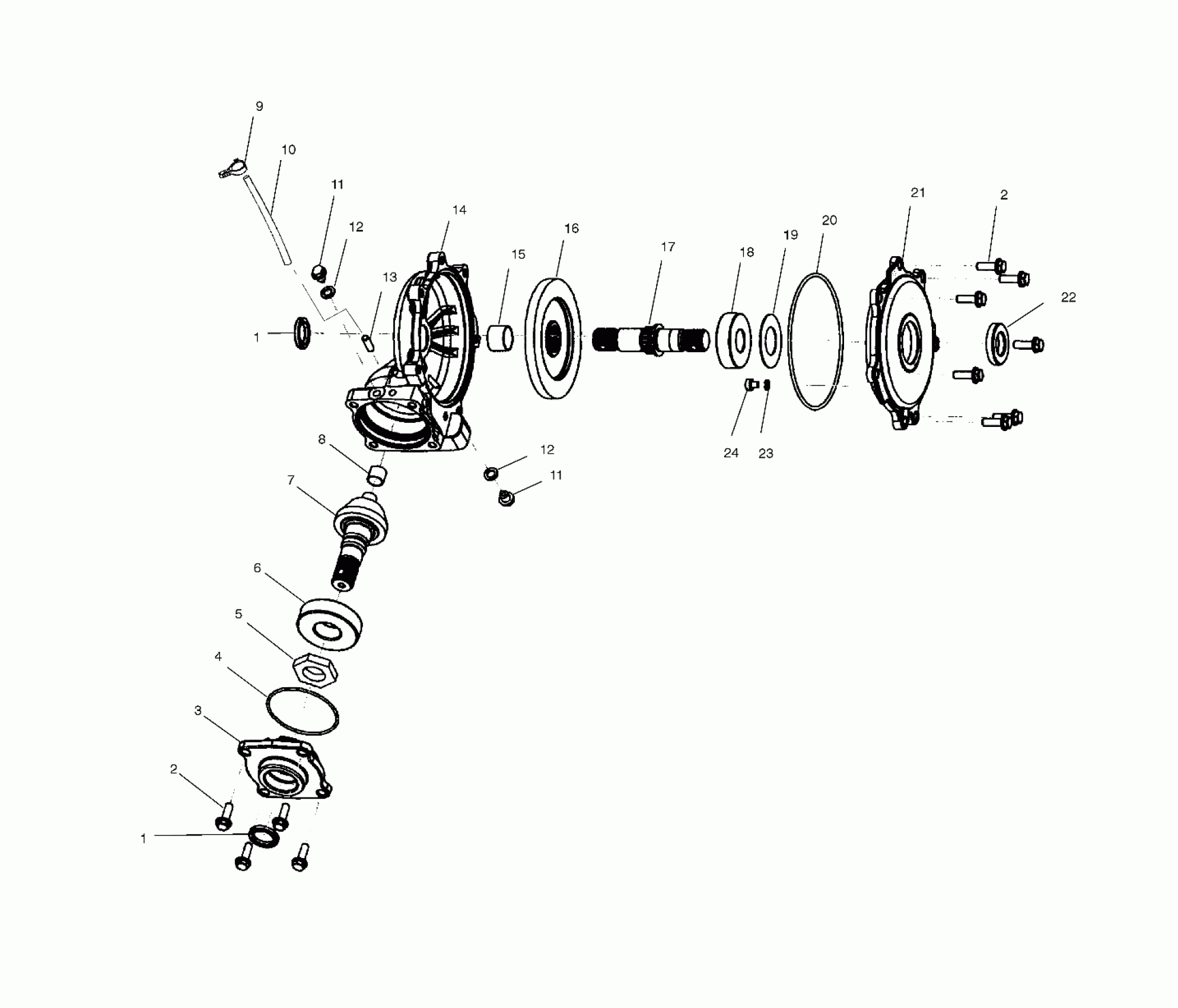

Polaris 325 MAGNUM 4X4 HDS - A00CD32FA FRONT HOUSING - A00CD32AA (4949404940C008) Diagram

#

Description
Price

-

GEARCASE ASM,FRONT (Incl. 1-24)

1341253

Unavailable

1

Seal

3233319

$27.99

1

Seal

3233319

$27.99

2

Screw

3233252

$5.27

2

Screw

3233252

$5.27

3

GEARCASE,COVER

3233573

Unavailable

4

O-RING 151

3233588

$10.55

5

NUT

3233574

Unavailable

6

BEARING,BALL

3233589

$59.99

7

SHAFT,HYPOID 10T 7DP F

3233590

Unavailable

8

Bushing

3233591

$6.63

9

CLIP,SNAP-IN

7080756

$4.79

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

11

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

12

PLUG, WASHER

3233254

$7.99

12

PLUG, WASHER

3233254

$7.99

13

TUBE,VENT

3233524

$7.19

14

GEARCASE,FRONT HOUSING

3233592

Unavailable

15

Bushing

3233593

Unavailable

16

GEAR,BEVEL 37T 7DP F

3233594

$237.59

17

SHAFT,OUTPUT,FRONT

3233595

$135.99

18

BEARING

3233020

$47.99

19

SHIM

3233554

$30.79

20

O-RING 225

3233596

Unavailable

21

GEARCASE,COVER OUTPUT

3233597

$85.71

22

Seal

3233248

$30.88

23

SHIM .450 X .265

3233583

$26.39

24

THRUST BUTTON

3233582

$7.91
