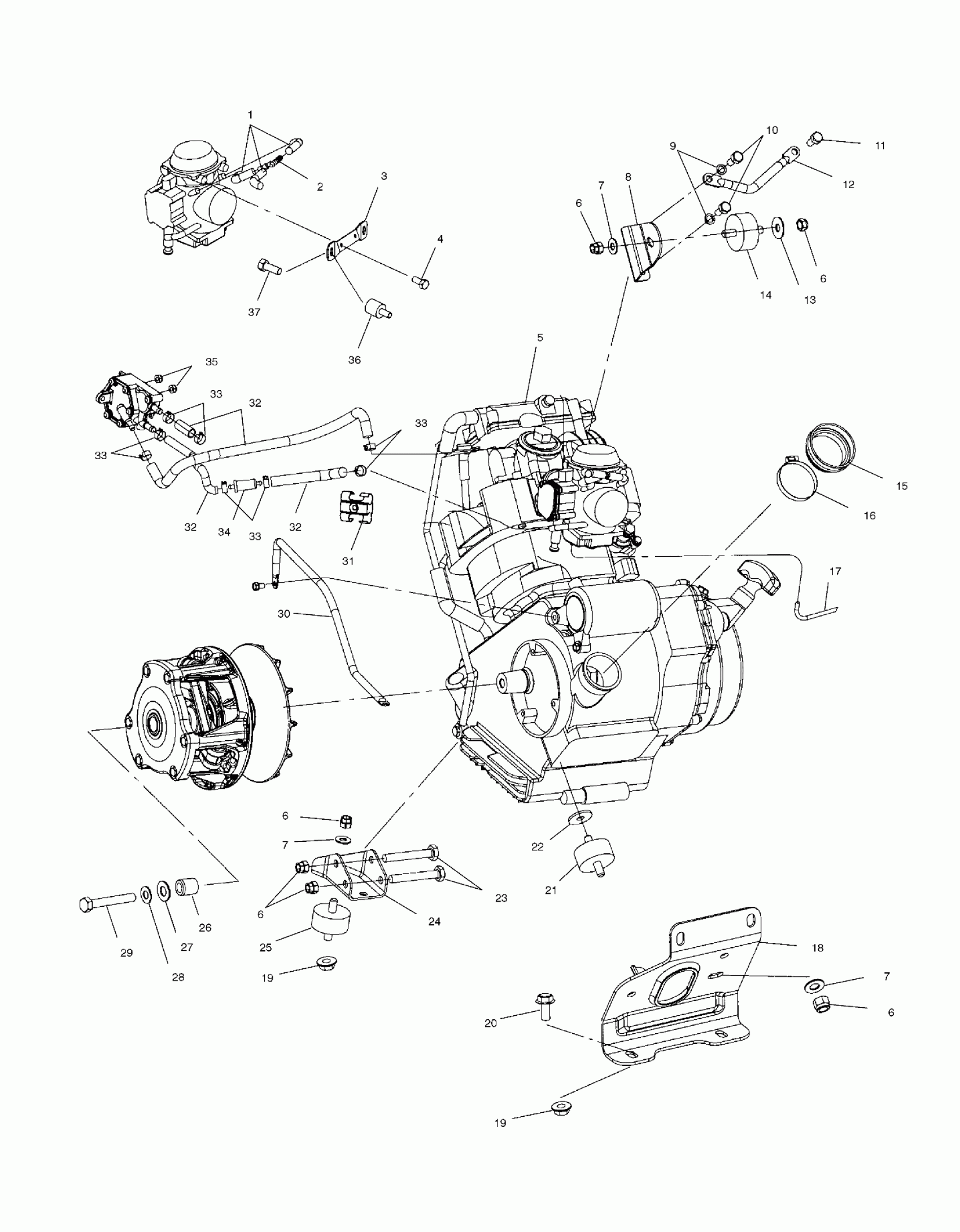

Polaris 325 MAGNUM 4X4 HDS - A00CD32FA ENGINE MOUNTING - A00CD32AA (4949404940B001) Diagram

#

Description
Price

1

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.52

3

BRKT,CARB,325,BLK

5243720-067

Unavailable

4

SCREW & WASHER(10)

3084205

$3.97

5

ENG.ES32PFE Substituted by 3087021 The Short Block assembly contains a crankcase assembly., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for w

3085823

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

7

WASHER(10)

7555806

$0.79

7

WASHER(10)

7555806

$0.79

7

WASHER(10)

7555806

$0.79

8

BRKT,MOTOR MOUNT,325,BLK

5243641-067

$5.71

9

LOCK WASHER(10)

7552901

$1.19

10

BOLT(10)

7512315

$4.76

11

BOLT(10)

7512232

$1.19

12

CABLE,GND-ENGINE

4010132

Unavailable

13

WASHER(10)

7555823

$3.97

14

MOUNT,R.RUBBER

3110068

$44.51

15

BOOT-CLUTCH INTAKE

5411721

Unavailable

16

CLAMP, NARROW BAND(10)

7080511

$4.76

17

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

18

MOUNT,ENGINE,REAR 325,BLK (If built before 12/01/99)

1012960-067

$14.14

18

MOUNT,ENGINE,REAR 325,BLK (If built after 12/01/99)

1013133-067

$15.56

19

NUT

7547108

$4.76

19

NUT

7547108

$4.76

20

SCREW ,(10)

7517289

$3.29

21

MOUNT,RUBBER,REAR,60 DURO

3021119

Unavailable

22

WASHER, FLAT(10)

7555815

$3.97

23

BOLT(10)

7515417

$4.76

24

MOUNT-LOWER FRONT 325,BLK

5243288-067

Unavailable

25

MOUNT,RUBBER,ENGINE,45 DURO

3021181

$44.51

26

BUSHING-.437 X.770 X.50

5430261

$7.14

27

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

29

BOLT(10)

7512566

$33.24

30

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

31

T-CLIP(10)

7080482

$6.35

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

33

HOSE CLAMP, RED

7080003

$1.19

33

HOSE CLAMP, RED

7080003

$1.19

33

HOSE CLAMP, RED

7080003

$1.19

33

HOSE CLAMP, RED

7080003

$1.19

34

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

35

NUT-M5X.8,HX NYL-Y

7546601

$1.19

36

MOUNT,CARB,RUBBER Substituted by 3021186

3110079

$11.99

37

SCREW(10)

7517615

Unavailable
