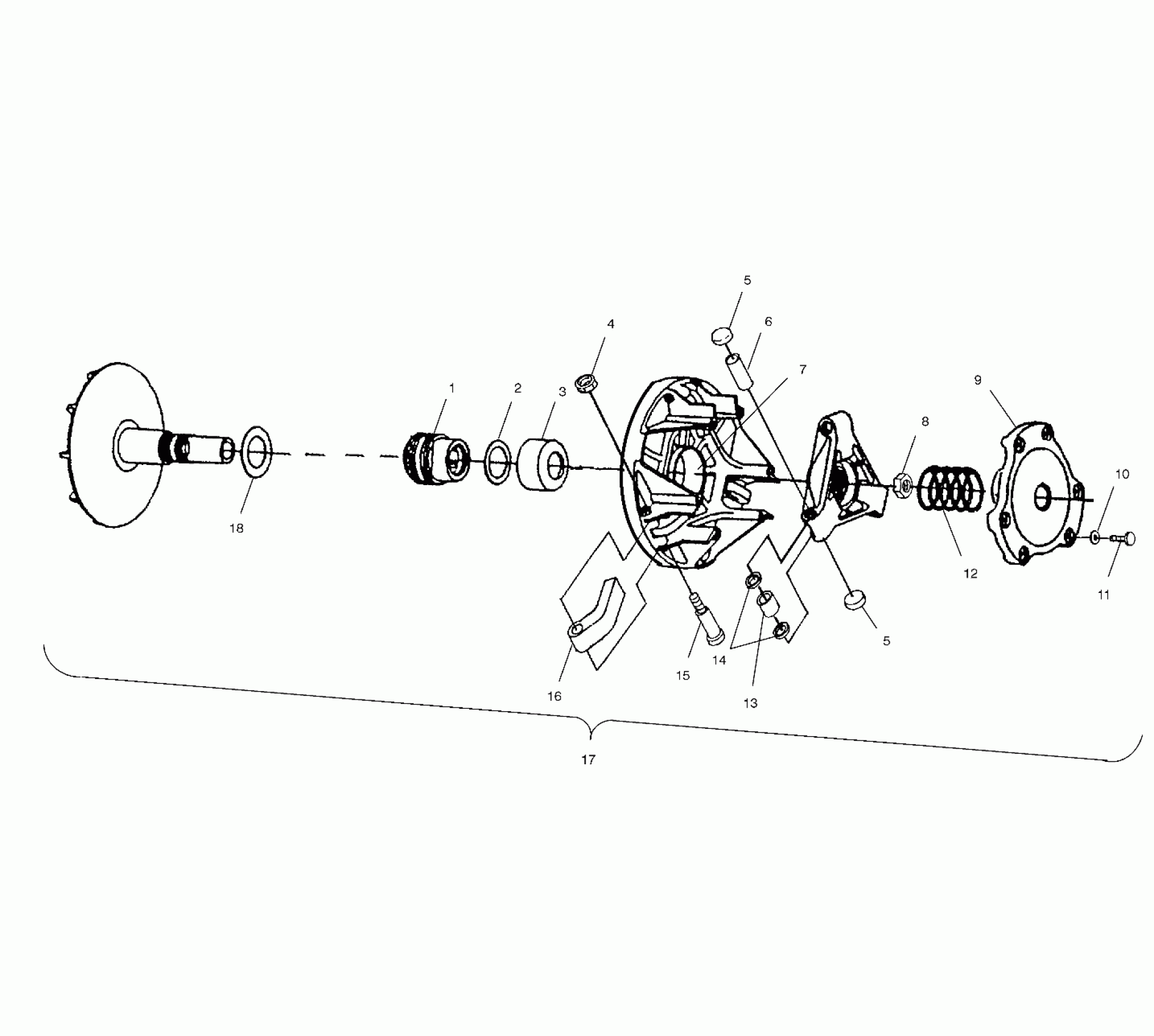

Polaris 325 MAGNUM 4X4 HDS - A00CD32FA DRIVE CLUTCH - A00CD32FA (4949404940C001) Diagram

#

Description
Price

1

CLUTCH,DRIVE,1-WAY,HLRD

1520231

$309.99

2

WASHER Substituted by 7556202

7556009

$6.46

3

SPACER Substituted by 5631119

5131646

Unavailable

4

NUT FLEX LOC(10)

7541906

$3.17

5

BUTTON,CLUTCH

5431936

$8.08

5

BUTTON,CLUTCH

5431936

$8.08

6

PIN-ROLLER

5020422

$2.38

7

Bearing

3585712

$31.75

8

NUT,JAM Substituted by 2201615

7547130

Unavailable

9

BEARING, COVER,(10)

3576510

$9.52

10

LOCK WASHER(10)

7552801

Unavailable

11

BOLT(10) Substituted by 7512163

7512176

$3.97

12

SPRING,CLUTCH

7041157

$48.56

13

ASM-ROLLER AND BUSHING

1321457

$40.46

14

WASHER,MULTILUBE

5430945

$1.59

15

BOLT,SPECIAL(10)

7512266

$3.17

16

WT.,CLUTCH,16(6)

5630279

$32.37

17

CLUTCH,DRIVE,BRAKING (Incl. All Less 12,7)

1321706

$683.99

18

WASHER Substituted by 7556204

7556008

$11.11
