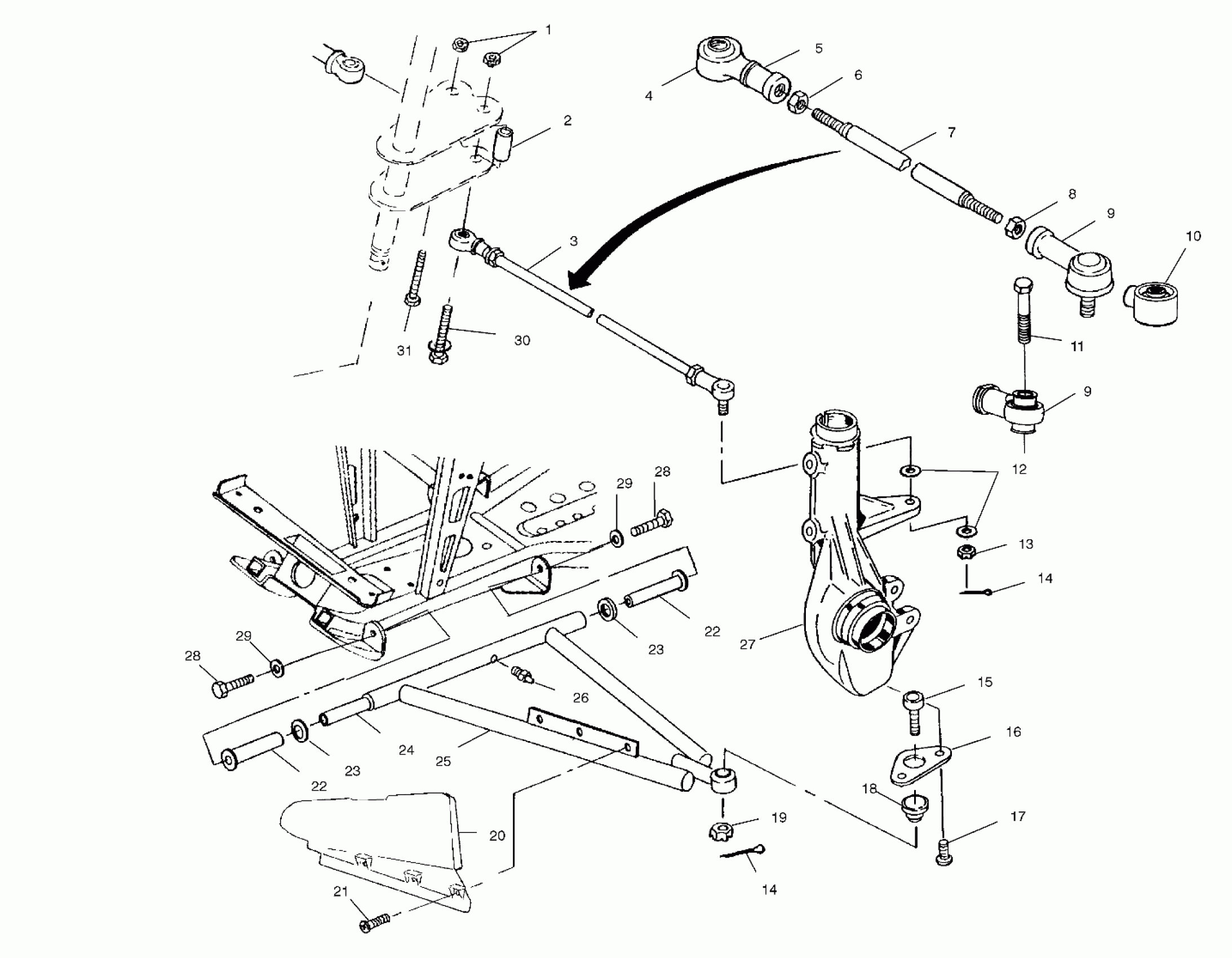

Polaris 325 MAGNUM 4X4 HDS - A00CD32FA A-ARM/STRUT MOUNTING - A00CD32AA (4949404940B013) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

BUSHING

5333367

$6.59

3

TIEROD ASM,1/2-20X13.40 Substituted by 2201741 (Incl. 4-9)(If Built before 8/16/99)

1820567

$165.94

3

TIE,ROD,1/2-20X13.4,ASM. (Incl. 4-9)(If Built after 8/16/99)

1820805

$133.56

4

SEAL,BOOT,ROD END,1/2 IN

5411291

$11.32

5

ROD END,RH

7061034

$60.70

6

NUT-JAM(10)

7542711

$2.38

7

ROD,TIE

5020926

$44.51

8

NUT,LH,JAM(10)

7547028

$2.38

9

ROD,END,10MM,1/2-20LH,42 DEG (If built after 8/16/99)

7061054

$56.65

9

ROD END,LH Substituted by 2201743 (If built before 8/16/99)

7061033

$60.70

9

ROD,END,10MM,1/2-20LH,42 DEG (If built after 8/16/99)

7061054

$56.65

9

ROD END,LH Substituted by 2201743 (If built before 8/16/99)

7061033

$60.70

10

BOOT,SEAL,ROD END,10MM

5411920

$11.32

11

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909 (If built after 8/16/99)

7517674

$5.56

12

WASHER(10) (If built before 8/16/99)

7555806

$0.79

12

WASHER (If built after 8/16/99)

7556099

$1.59

13

NUT, CASTLE(10)

7546904

$4.76

14

PIN COTTER(10)

7661203

$1.19

14

PIN COTTER(10)

7661203

$1.19

15

BALL-JOINT,52 DEG,ATV

7080927

$28.32

16

BRACKET-BALL JOINT

5211121

$32.37

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

18

Boot, Rubber

5410548

$4.84

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

20

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

$24.27

21

SCREW,10-24X5/8

7517756

$1.19

22

BUSHING,A ARM,LONG

5433066

$5.56

22

BUSHING,A ARM,LONG

5433066

$5.56

23

BUSHING,A-ARM SPACER(10)

5020677

$10.32

23

BUSHING,A-ARM SPACER(10)

5020677

$10.32

24

Shaft, A-Arm

5020681

$33.24

25

A-FRAME,KIT,LH (1541444)

2201609

$161.49

25

A-FRAME,KIT,RH (1541445)

2201610

Unavailable

26

ZERK,FITTING,THREADED(10)

7080433

$1.19

27

Asm., Heavy Hubstrut (See Front Strut Pg. B6, Ref. 15)

----

Unavailable

28

SCREW(10)

7512492

$1.19

28

SCREW(10)

7512492

$1.19

29

WASHER(10)

7552603

$0.79

29

WASHER(10)

7552603

$0.79

30

BOLT (10)

7517527

Unavailable

31

BOLT(10)

7515415

$1.19
