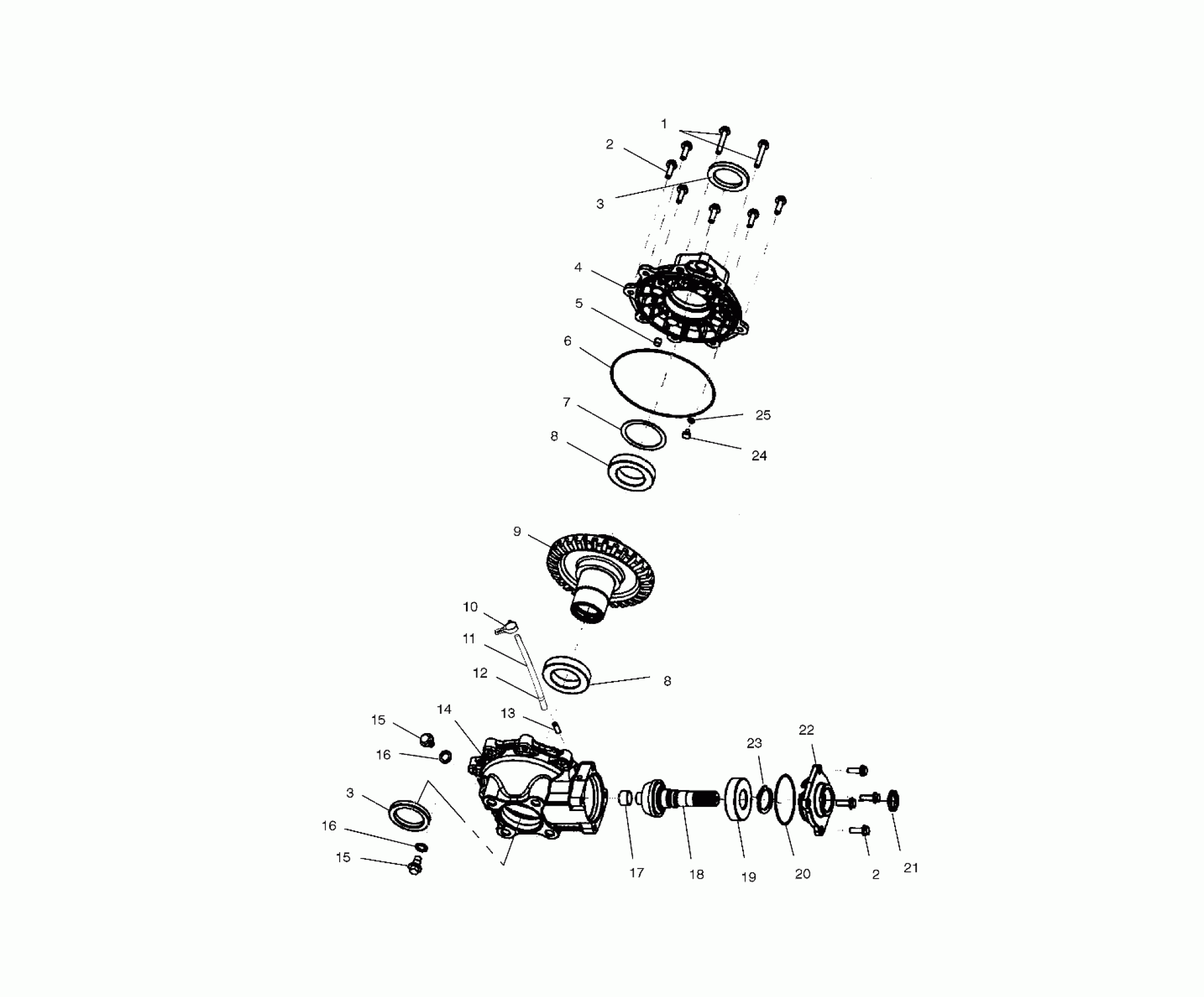

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC REAR HOUSING - A02CB32AA/AB/FC (4970107010C07) Diagram

#

Description
Price

-

Asm., Gearcase, Rear (Incl. 1-9, 13-25) (Incl. 1-9, 13-25)

1341342

Unavailable

1

Screw

3233585

Unavailable

2

Screw

3233252

$5.69

2

Screw

3233252

$5.69

3

Seal

3233256

$32.37

3

Seal

3233256

$32.37

4

Cover, Gearcase, Output

3233753

$229.37

5

Pipe, Knock

3233529

$10.99

6

O-Ring

3233587

$32.37

7

SHIM

3233581

Unavailable

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

9

Gear, Bevel, 31T, Rear

3233740

Unavailable

10

Clip

7670102

$2.38

11

Line, Vent

8450003-1525

Unavailable

12

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

13

TUBE, VENT

3233524

$9.99

14

Gearcase, Rear Housing

3233739

Unavailable

15

Plug

3233711

Unavailable

15

Plug

3233711

Unavailable

16

Washer

3233324

$8.54

16

Washer

3233324

$8.54

17

Bushing

3233577

$19.84

18

Shaft, Pinion, 10T, Bevel, Rear

3233768

Unavailable

19

BEARING, BALL

3233714

$31.75

20

O-Ring

3233588

$11.39

21

Seal, Oil

3233319

$28.32

22

Gearcase, Cover, Input

3233573

Unavailable

23

RING, RETAINING

3233699

$7.27

24

THRUST BUTTON

3233582

$8.99

25

SHIM

3233583

Unavailable
