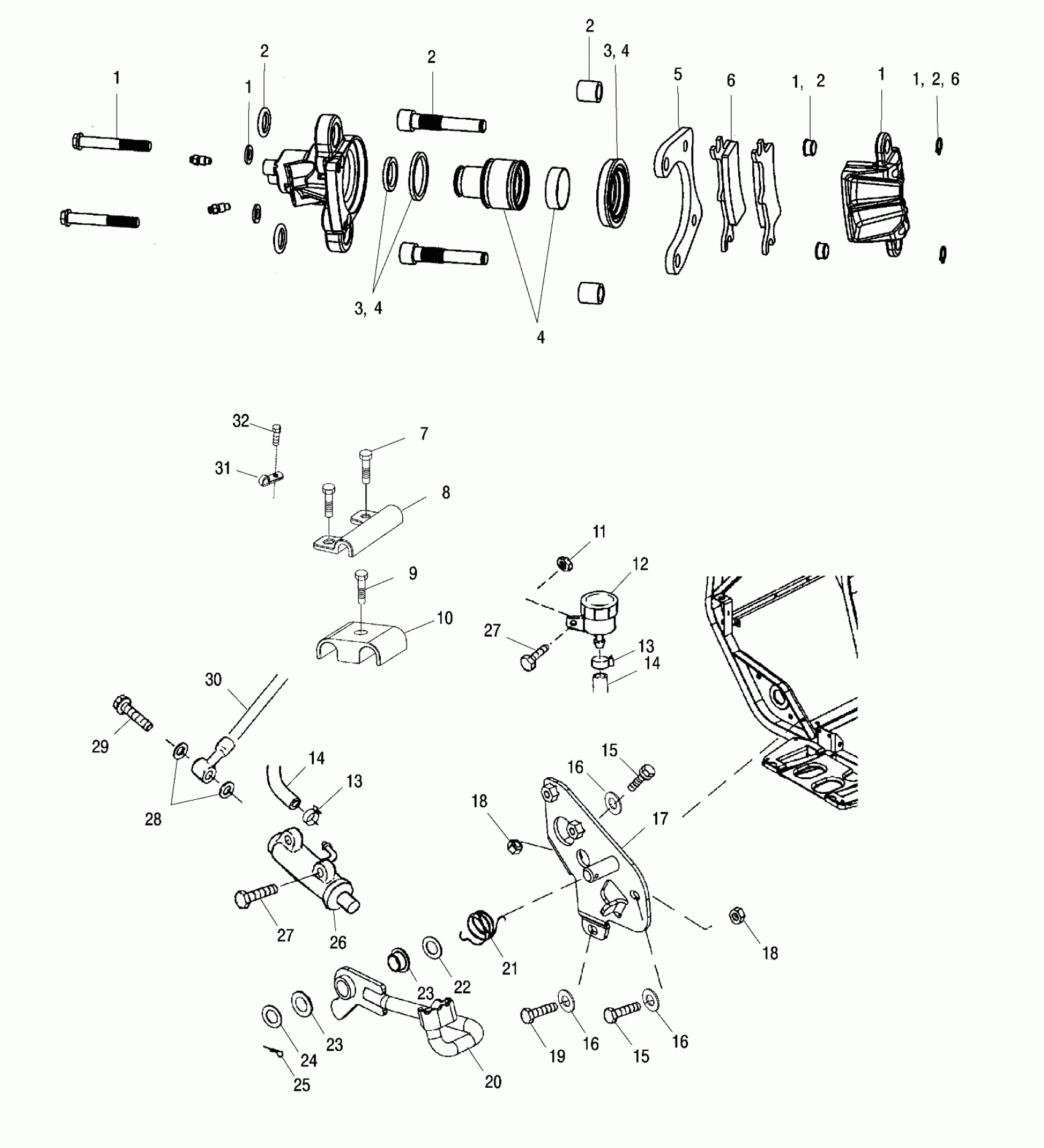

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC REAR BRAKE - A02CB32AA/AB/FC (4970107010B03) Diagram

#

Description
Price

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

3

Kit -Seal

2201872

$63.99

3

Kit -Seal

2201872

$63.99

4

Kit, Piston and Seal

2201869

$119.99

4

Kit, Piston and Seal

2201869

$119.99

4

Kit, Piston and Seal

2201869

$119.99

5

Asm., Rear Caliper

1910425

Unavailable

6

Kit, Brake Pad

2201871

$27.99

6

Kit, Brake Pad

2201871

$27.99

7

Screw

7512084

$1.49

8

Clamp, Brake Line

5434041

Unavailable

9

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

10

Clip

7670126

$4.79

11

NUT, FLANGED

7542153

$1.59

12

Reservoir, Brake, Rear

1930854

$35.99

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

Hose, Reservoir

1910331

$4.95

14

Hose, Reservoir

1910331

$4.95

15

BOLT

7512240

$3.99

15

BOLT

7512240

$3.99

16

WASHER

7558301

$1.49

16

WASHER

7558301

$1.49

16

WASHER

7558301

$1.49

17

Pivot, Mount, Brake, Rear

1012753-067

Unavailable

18

Nut, Nylok

7542122

$1.49

18

Nut, Nylok

7542122

$1.49

19

SCREW

7517386

$1.49

20

Rod, Brake

1012752-067

Unavailable

21

SPRING-TORSION,BRAKE

7041750

$8.79

22

WASHER

7555919

$4.99

23

BUSHING, PEDAL PIVOT

5433189

$3.99

23

BUSHING, PEDAL PIVOT

5433189

$3.99

24

Washer, Spring

7556090

$2.63

25

PIN, COTTER

7661401

$1.49

26

Master Cylinder, Foot

1910311

$166.01

27

Screw

7515158

$4.79

27

Screw

7515158

$4.79

28

Seal

5410988

$4.84

29

BOLT, BANJO

1910499

$5.59

30

Line, Foot Brake, Rear, Master Cylinder

1910516

Unavailable

31

Clamp, Rubber Coated

7080573

$7.19

32

SCREW

7517386

$1.49
