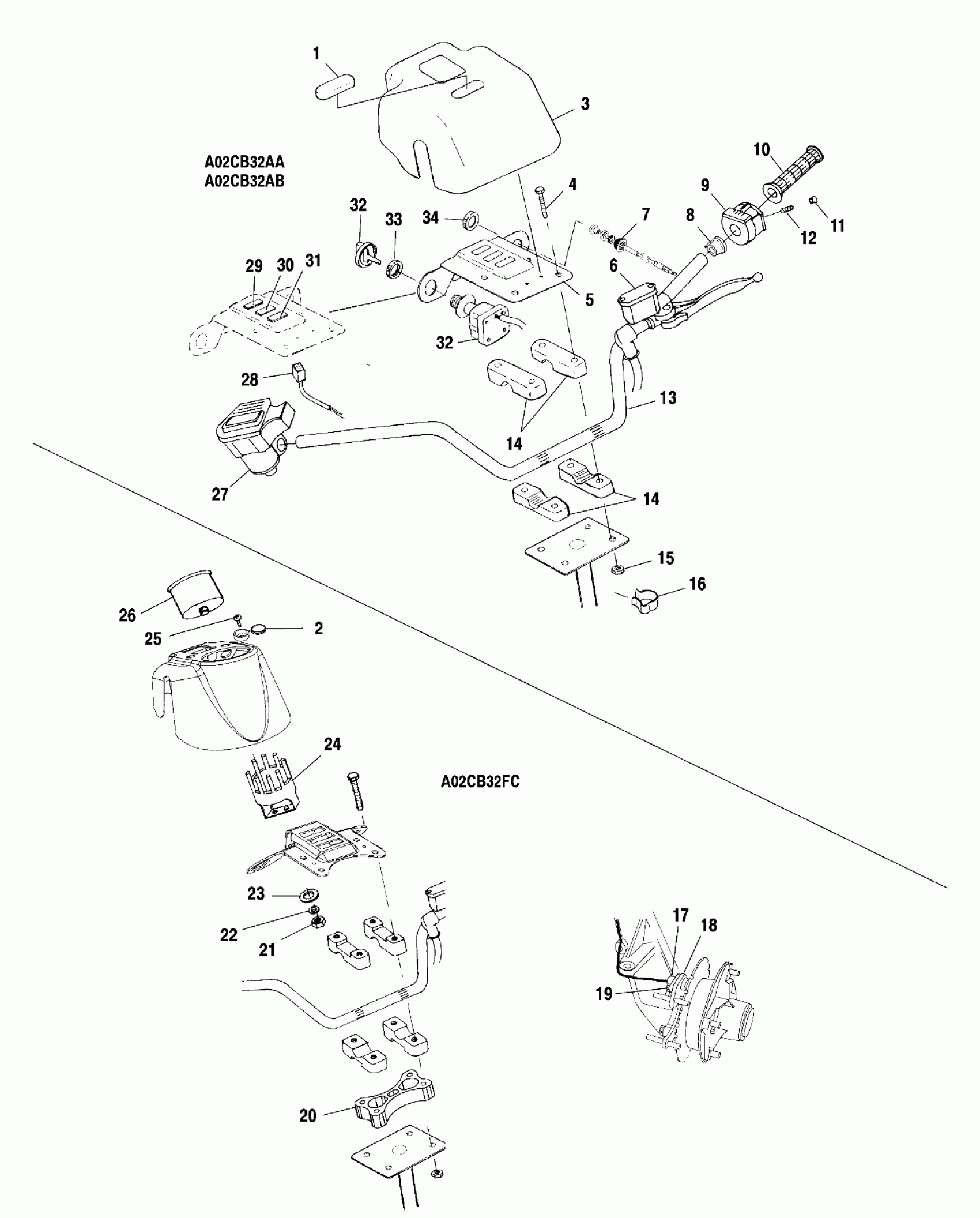

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC HANDLEBAR - A02CB32AA/AB/FC (4970107010C01) Diagram

#

Description
Price

1

Cover, Logo (AA) (AA)(AB)

5432247-070

Unavailable

2

Cover, Screw [FC)

5432420

Unavailable

3

Panel, Instrument (FC) (FC)

5433843-070

$53.59

3

Panel, Instrument (AA) (AA)(AB)

5433842-070

Unavailable

4

Screw (AA) (AA)(AB)

7517216

Unavailable

4

Screw (FC) (FC)

7517224

Unavailable

5

Bracket, Instrument Panel (FC) (FC)

5244341-067

$5.75

5

Bracket, Instrument Panel (AA) (AA)(AB)

5244292-067

Unavailable

6

ASM., MASTER CYLINDER (See Control - Master Cyl./Brake Line Pg. B2 for Details)

-------

Unavailable

7

Cable, Choke

7081008

$79.99

8

Spacer, Switch, LH

5433903

Unavailable

9

Switch, Handlebar, H/L/O R/OR

4010422

$123.54

10

Grip, Handlebar

5433834-070

$24.27

11

PLUG, HOLE

5432952

$5.59

12

Screw

7517625

$4.79

13

Tube, Handlebar

5224715-067

Unavailable

14

Block, Handlebar

5630629

$11.59

14

Block, Handlebar

5630629

$11.59

15

Nut, Nylok

7542122

$1.49

16

Clip, Cable Retaining

7080631

$6.29

17

Cap, Hall Sensor (FC) (FC)

5132382

$23.99

18

Sensor, Hall Effect (FC) (FC)

4010298

$111.99

19

Screw (FC) (FC)

7517658

$5.59

20

Block, Riser (FC) (FC)

5630633

$19.03

21

Nut (FC) (FC)

7541933

$4.99

22

Washer, Flat (FC) (FC)

7558212

$1.49

23

Washer, Lock (FC) (FC)

7555868

Unavailable

24

Clamp (FC) (FC)

3280201

Unavailable

25

SCREW

7512024

$4.79

26

Speedometer (FC) (FC)

3280362

Unavailable

27

ASM., THROTTLE CONTROL (See Controls - Throttle Asm./Cable Pg. B7, Ref. 5)

-------

Unavailable

28

Harness, Control Panel

2460715

Unavailable

29

Indicator, Neutral/Reverse

4040054

$31.99

30

Indicator, "Hot Temperature"

4040053

$31.99

31

Plug, Indicator Hole

5430967

$5.65

32

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

32

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

32

Switch, Ignition

4010390

Unavailable

32

Cover, Key

5431964

Unavailable

32

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

32

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

32

Switch, Ignition

4010390

Unavailable

32

Cover, Key

5431964

Unavailable

33

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

34

Nut, Choke Slide

7080922

$3.19
