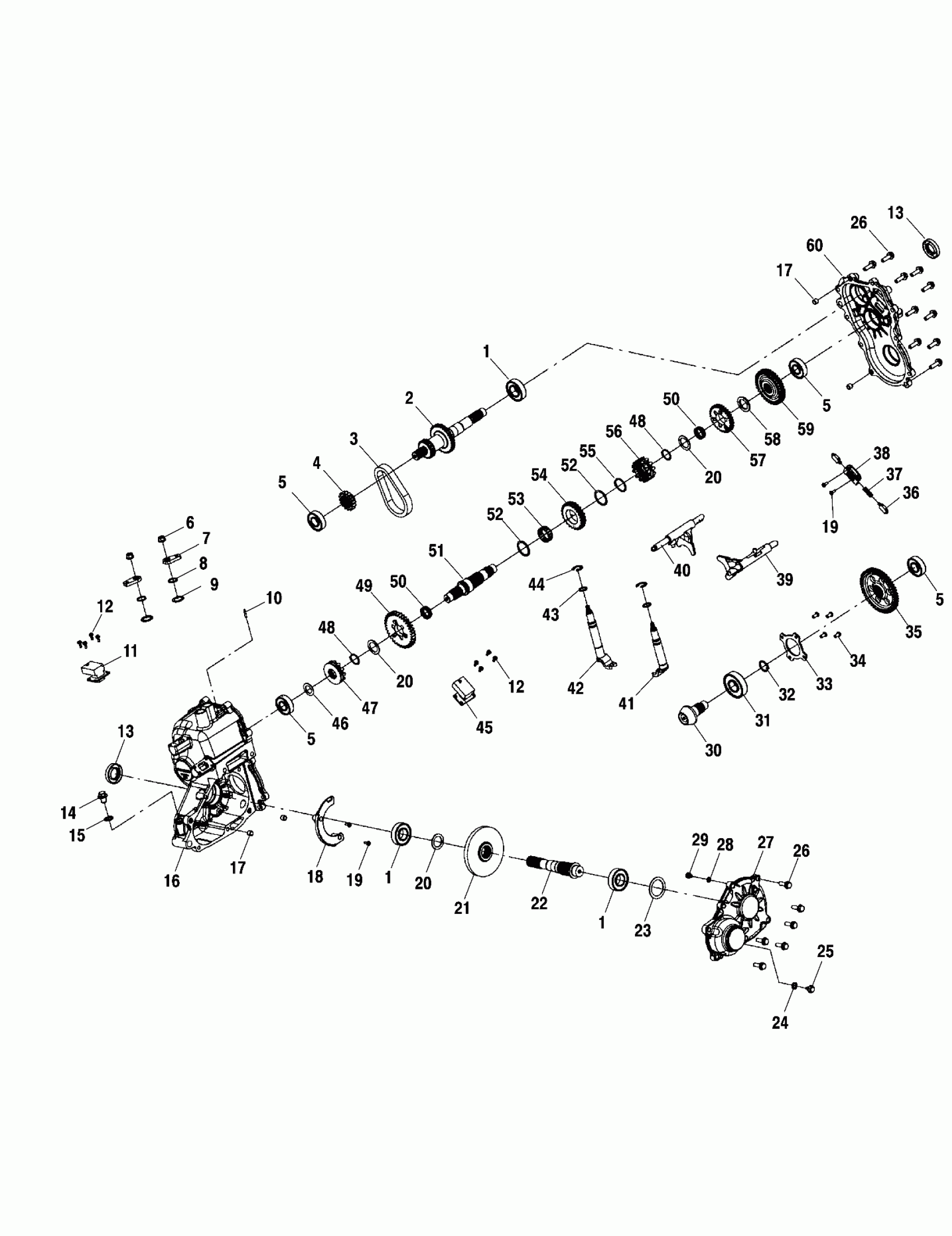

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC GEARCASE - A02CB32AA/AB/FC (4970107010C05) Diagram

#

Description
Price

-

Asm., Gearcase, Main (Incl. All) (INCL. ALL)

1341364

Unavailable

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

2

Shaft, Input, 31T

3233756

Unavailable

3

Chain, Silent

3233036

Unavailable

4

Gear, 16T w/22T Spline

3233770

$94.39

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

6

NUT, LOCK

3233961

$2.79

7

Bellcrank

3233153

$27.99

8

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

9

Washer

3233040

$9.59

10

Tube, Vent

3233037

Unavailable

11

Switch, 3 Position

3234019

Unavailable

12

SCREW

3233749

$5.59

12

SCREW

3233749

$5.59

13

Seal, Triple Lip

3233788

$31.99

13

Seal, Triple Lip

3233788

$31.99

14

Plug

3233711

Unavailable

15

Washer

3233872

$9.59

16

Gearcase, Main

3233902

Unavailable

17

Pipe, Knock

3233529

$7.99

17

Pipe, Knock

3233529

$7.99

18

Deflector, Oil

3233712

Unavailable

19

Screw

3233747

Unavailable

19

Screw

3233747

Unavailable

20

WASHER,THRUST

3233619

$21.99

20

WASHER,THRUST

3233619

$21.99

20

WASHER,THRUST

3233619

$21.99

21

Subasm., Ground Spiral Bevel [Incl. 30]

3234912

$595.54

22

Shaft, Rear Output

3233622

Unavailable

23

SHIM

3233611

$26.39

24

Washer

3233254

$7.99

25

Plug, Flange, Hex

3233777

$34.99

26

Screw

3233252

$5.27

26

Screw

3233252

$5.27

27

Cover, Front, Gearcase

3233713

$72.79

28

SHIM

3233583

$26.39

29

THRUST BUTTON

3233582

$7.91

30

Subasm., Ground Spiral Bevel [Incl. 21]

3234912

$595.54

31

Bearing, Ball

3233607

$36.41

32

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

33

Cover, Bearing, Center

3233609

$19.99

34

Screw

3233608

$5.99

35

Gear, 48T

3233709

$178.57

36

Pin, Interlock

3233308

Unavailable

37

Spring, Shifting, Interlock

3233032

$12.94

38

Bracket, Interlock

3233309

$20.63

39

Fork, Shift, Low

3233605

Unavailable

40

Fork, Shift, H/R

3233602

Unavailable

41

Shaft, Shift, Low

3233624

$58.73

42

Shaft, Shift, H/R

3233627

Unavailable

43

O-Ring

3233548

$27.99

44

Ring, Retaining

3233618

$1.75

45

Switch, 2 Position

3234001

Unavailable

46

Washer

3233628

Unavailable

47

Engagement Dog, Low

3233732

$169.98

48

RING, RETAINING

3233306

$4.79

48

RING, RETAINING

3233306

$4.79

49

Gear

3233631

$133.59

50

BEARING, NEEDLE

3233103

$31.99

50

BEARING, NEEDLE

3233103

$31.99

51

Shaft, Reverse

3233598

Unavailable

52

Washer, Thrust

3233012

Unavailable

52

Washer, Thrust

3233012

Unavailable

53

BEARING, NEEDLE

3233014

$43.99

54

Sprocket, 24T

3233599

Unavailable

55

Ring, Retaining

3233029

$5.59

56

Engagement Dog, H/R

3234020

Unavailable

57

Gear, 30T

3233600

$198.32

58

Spacer

3233613

$3.51

59

Gear, 36T

3233708

Unavailable

60

Gearcase, LH

3233610

Unavailable
