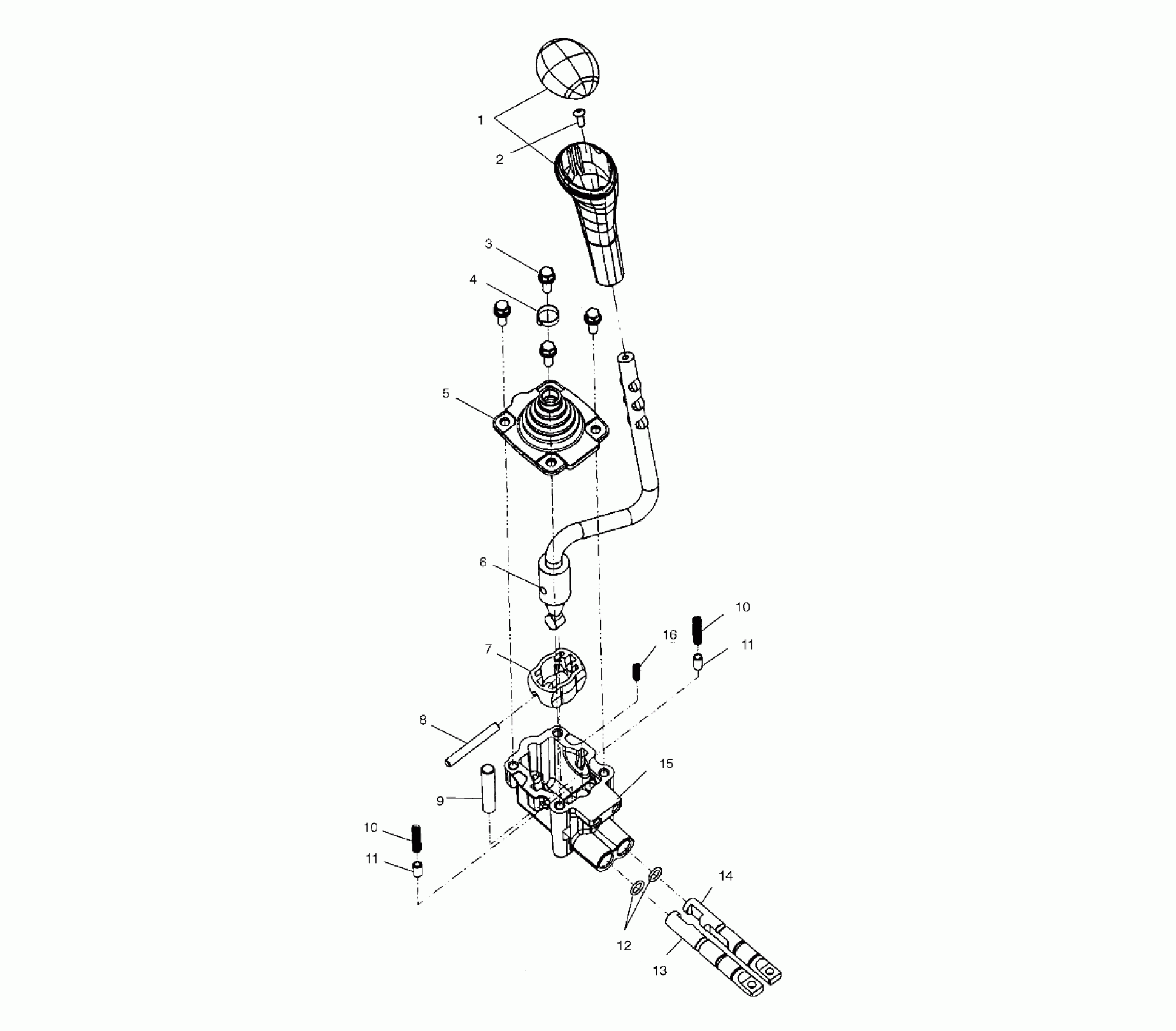

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC GEAR SELECTOR - A02CB32AA/AB/FC (4970107010C04) Diagram

#

Description
Price

-

Asm., Gear Selector (Incl. 1-16) (Incl. 1-16)

1341271

Unavailable

1

Asm., Knob

3233195

$49.99

2

SCREW

7512024

$4.79

3

Screw

3233649

Unavailable

4

Strap, Wire

3233131

$9.70

5

Cover, Gear Selector Boot

3233648

$31.99

6

Handle, Gear Selector

3233658

Unavailable

7

Sphere, Plastic

3233646

$14.07

8

Pin, Groove

3233754

$9.99

9

Pin, Dowel

3233644

$7.99

10

Spring, Detent

3233642

$16.99

10

Spring, Detent

3233642

$16.99

11

Bullet, Detent

3233060

$64.99

11

Bullet, Detent

3233060

$64.99

12

O-RING

3233076

$6.39

13

Slide, Low

3233639

Unavailable

14

Slide, High/Reverse

3233640

Unavailable

15

Body, Gear Selector

3233641

$99.99

16

Spring, Centering

3233643

$52.79
