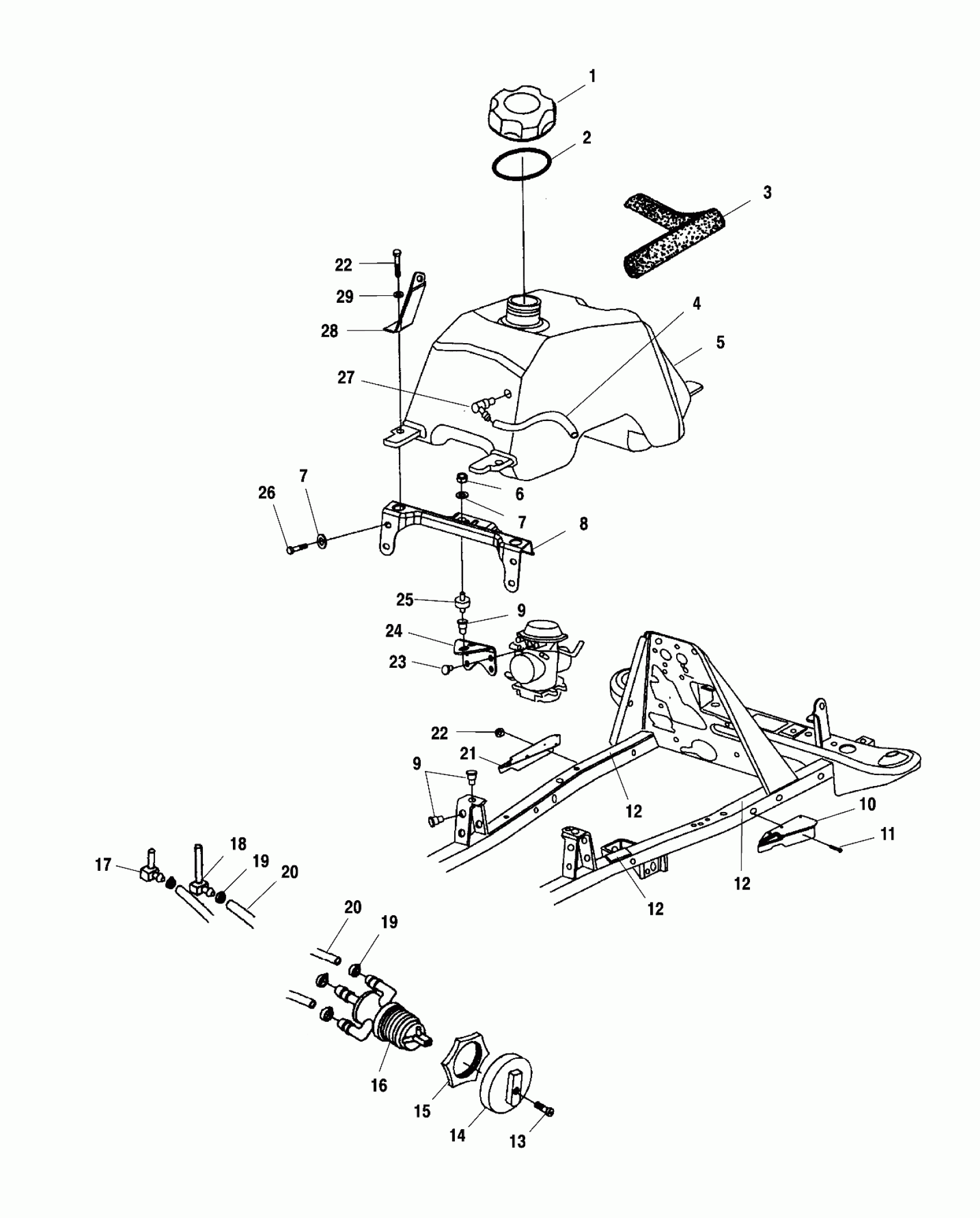

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC FUEL TANK AND CARBURETOR MOUNTING - A02CB32AA/AB/FC (4970107010A13) Diagram

#

Description
Price

1

Cap, Gas Tank (Includes Gasket) (INCLUDES GASKET

5433687

$20.22

2

GASKET

5812123

$5.65

3

Seal, Foam

5811942

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Asm., Fuel Tank (Incl. 19,20,29) (INCL. 19,20,29)

2520183

Unavailable

6

Nut, Hex

7542105

$3.99

6

Washer, Split Lock

7552605

$5.27

7

Washer, Flat

7555859

$1.49

7

Washer, Flat

7555859

$1.49

8

Bracket, Carburetor Support

5245671-067

Unavailable

9

Nutsert

7547069

$3.99

9

Nutsert

7547069

$3.99

10

Shield, Splash, RH

5245533-067

$15.67

11

SCREW

7517386

$1.49

12

Pad, Fuel Tank Bracket

5810317

Unavailable

12

Pad, Fuel Tank Bracket

5810317

Unavailable

12

Pad, Fuel Tank Bracket

5810317

Unavailable

13

Screw

7517505

$1.59

14

Knob, Fuel Valve

5432559

$10.39

15

Nut, Fuel Valve

5432733

Unavailable

16

Valve, 3-Way

7052161

$39.99

17

Fitting, Fuel Outlet, Main

7052146

$27.99

18

Fitting, Fuel Outlet, Reserve

7052149

$23.99

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

Line, Fuel

8450040-600

Unavailable

20

Line, Fuel

8450040-600

Unavailable

21

Shield, Splash, LH

5245394-067

$15.67

22

Screw

7512277

$4.79

22

Screw

7512277

$4.79

23

Screw and Washer

3084205

$3.99

24

Bracket, Carburetor

5245674-067

Unavailable

25

MOUNT, CARBURETOR

3110050

$12.99

26

Screw

7512276

$4.79

27

Vent, Tank

5431053

$19.99

28

Bracket, Fuel Cover Mount, Rear, LH

5222154-067

Unavailable

28

Bracket, Fuel Cover Mount, Rear, RH

5222155-067

Unavailable

29

WASHER

7558301

$1.49
