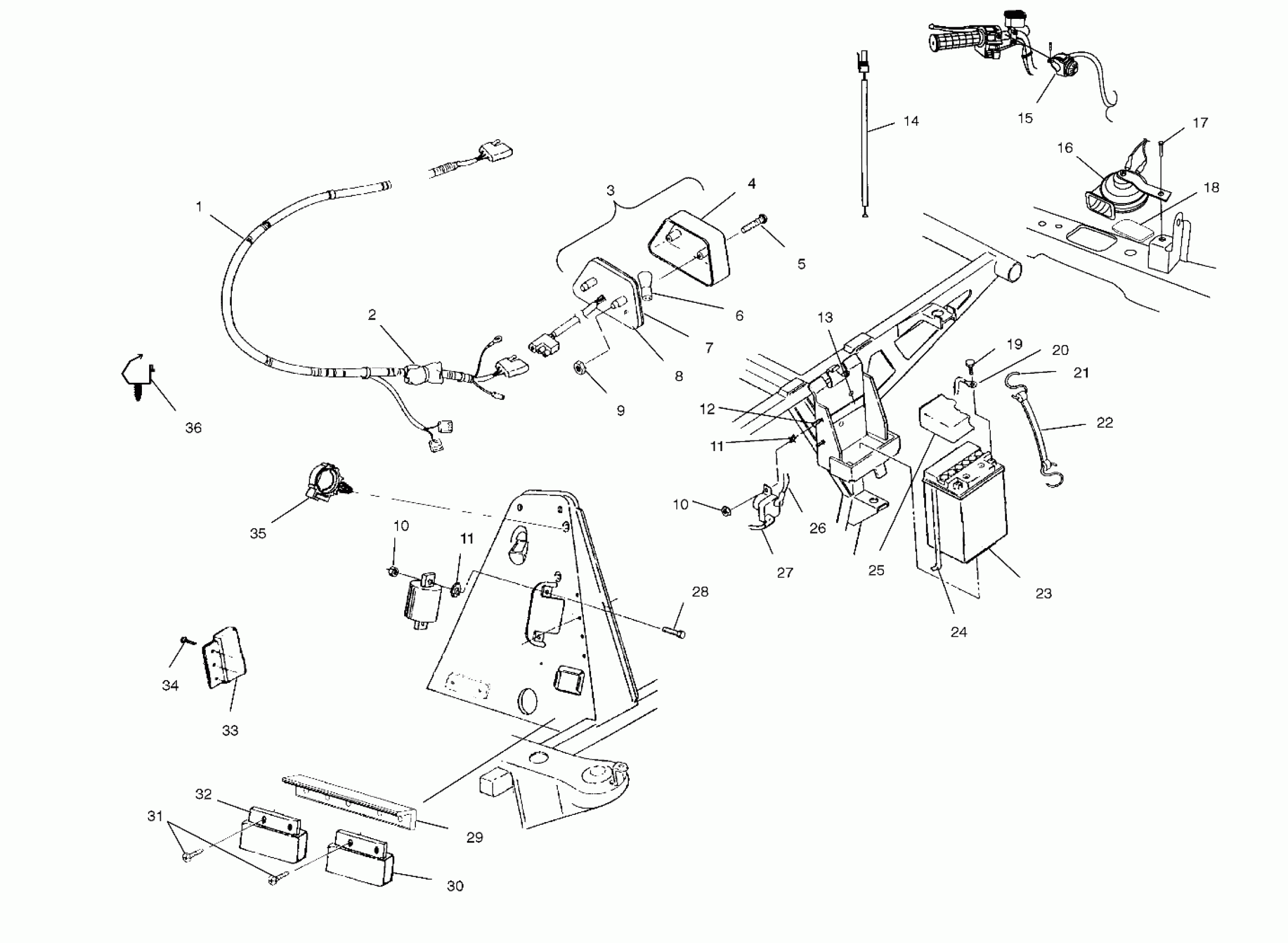

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC ELECTRICAL/TAILLIGHT - A02CB32AA/AB/FC (4970107010C03) Diagram

#

Description
Price

1

Harness, Main Wire (AA) (AA)(AB)

2460949

$305.56

1

Harness, Jumper (FC) (FC)

2460961

Unavailable

2

Kit, Circuit Breaker, 20 AMP

2200593

$68.79

3

Asm., Taillight w/Brake Light (Incl. 4-9) (Incl. 4-9)(If built before 2/01/02)

2432034

$55.56

3

Asm., Taillight, 12V (Incl. 4-9)(If built after 2/01/02)

2410320

$63.49

4

Lens, Taillight

4032046

$32.37

5

Screw, Taillight

4032029

$4.76

6

Bulb, Taillight

4030043

$6.46

7

Gasket, Taillight

4032045

$4.03

8

Backing, Taillight/Brake Light

4032064

$83.33

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

10

Nut, Nylok

7541925

$0.79

10

Nut, Nylok

7541925

$0.79

11

Washer

7571602

$4.76

11

Washer

7571602

$4.76

12

Screw

7512027

$1.19

13

PAD-BATTERY

5810290

$7.27

14

Harness, Horn (FC) (FC)

2460837

Unavailable

15

Switch, Horn (FC) (FC)

4010311

$60.70

16

Horn (FC) (FC)

4010310

Unavailable

17

Screw (FC) (FC)

7517386

$1.19

18

Pad (FC) (FC)

5810317

Unavailable

19

Kit, Battery Bolt, Short

2200361

Unavailable

20

Cable, Battery/Engine

4010095

Unavailable

21

Hook, Battery Strap

7010032

$1.59

22

Strap, Battery Holddown

5410424

$4.84

23

Battery

4140006

$99.99

24

Tube, Battery Vent

5432077

Unavailable

25

Cover, Battery

5431769

$15.37

26

Cable, Battery/Solenoid

4010094

Unavailable

27

Cable, Solenoid/Starter

4010093

$48.56

28

BOLT

7512007

$3.97

29

Sink, Heat

5132214

$8.17

30

Switch, Thermister LR-62

4010590

$399.99

31

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

32

Rectifier, Regulator, LR 35

4060191

Unavailable

33

Limiter, RPM LR 44-3 (AA) (AA)(AB)

4010137

Unavailable

34

Screw

7512017

$4.76

35

Clip, Rosebud

4020149

$6.35

36

CLIP, ROUTING

7670109

$2.38
