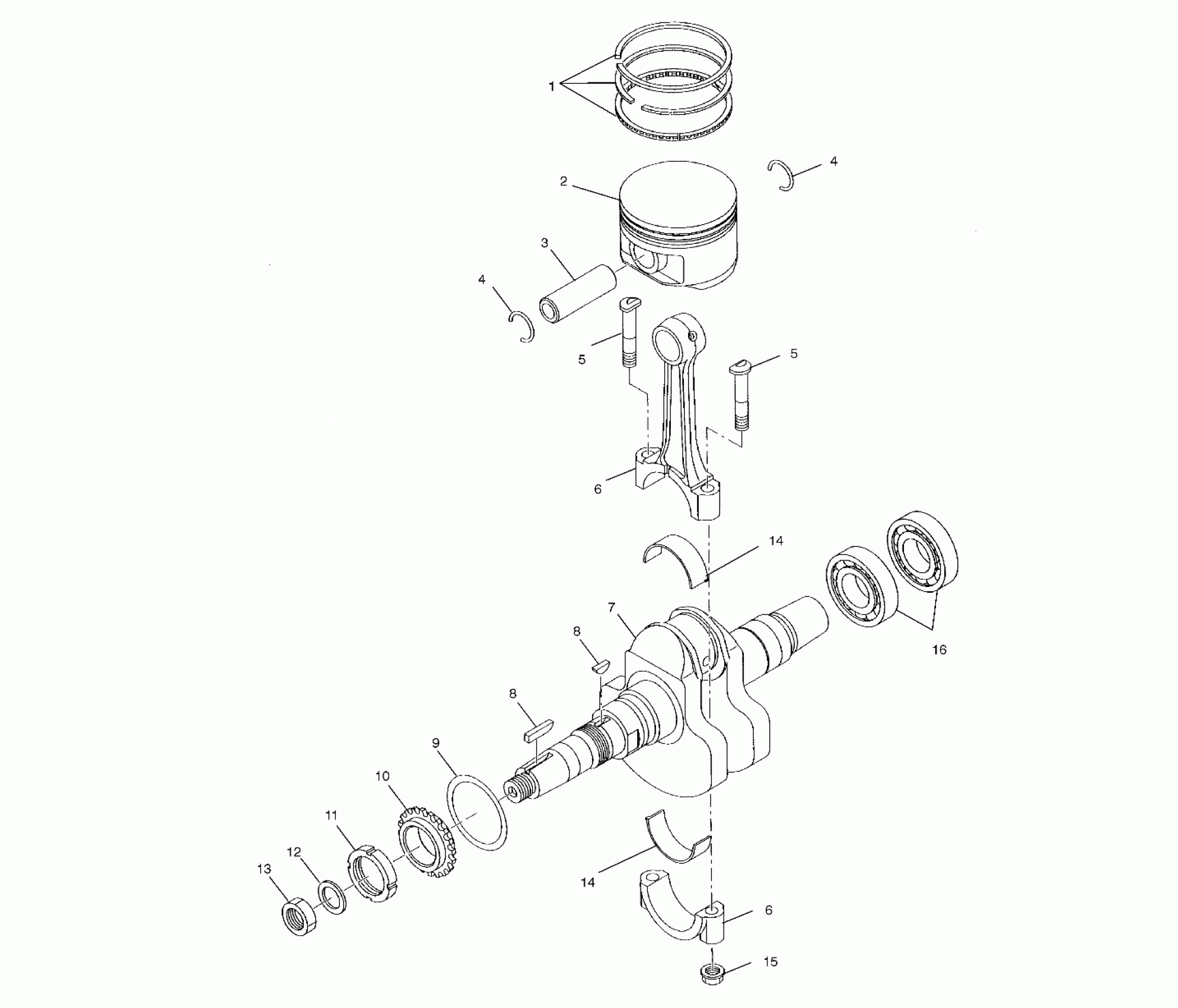

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC CRANKSHAFT AND PISTON - A02CB32AA/AB/FC (4970107010C14) Diagram

#

Description
Price

1

Piston Ring Set (STD) (STD)

3085774

Unavailable

1

Piston Ring Set (0.25 O/S)

3085775

Unavailable

1

Piston Ring Set (0.50 O/S)

3085776

Unavailable

2

Piston Set (STD)(Incl. 4)

3086800

Unavailable

2

Piston Set (0.25 O/S)(Incl. 4)

3086801

$100.79

2

Piston Set (0.50 O/S)(Incl. 4)

3086802

$120.94

3

Pin, Piston

3086846

Unavailable

4

Clip

3084167

$6.39

4

Clip

3084167

$6.39

5

Bolt

3086425

Unavailable

5

Bolt

3086425

Unavailable

6

Asm., Connecting Rod (Incl. 5,15) (Incl. 5,15)

3086424

Unavailable

6

Asm., Connecting Rod (Incl. 5,15) (Incl. 5,15)

3086424

Unavailable

7

Crankshaft, Complete (Incl. 16) (Incl. 16)

3087119

Unavailable

8

KEY, WOODRUFF

3240168

$19.99

9

Spacer

3086434

Unavailable

9

Spacer

3086437

Unavailable

9

Spacer

3086436

$8.79

9

Spacer

3086435

Unavailable

9

Spacer

3086434

Unavailable

9

Spacer

3086437

Unavailable

9

Spacer

3086436

$8.79

9

Spacer

3086435

Unavailable

10

Sprocket 1

3086492

$27.99

11

Nut

3085528

$35.99

12

WASHER

3086767

Unavailable

13

NUT, LOCK

3083905

Unavailable

14

Bearing (STD) (STD)

3086427

Unavailable

14

Bearing (0.05 U/S)(If built after 3/1/99) (0.05 U/S)(If built after 3/1/99)

3086798

Unavailable

14

Bearing (0.25 U/S)(If built after 3/1/99) (0.25 U/S)(If built after 3/1/99)

3086799

$15.99

14

Bearing (STD) (STD)

3086427

Unavailable

14

Bearing (0.05 U/S)(If built after 3/1/99) (0.05 U/S)(If built after 3/1/99)

3086798

Unavailable

14

Bearing (0.25 U/S)(If built after 3/1/99) (0.25 U/S)(If built after 3/1/99)

3086799

$15.99

15

Nut

3086426

$4.79

16

BEARING, BALL

3085815

$43.99
