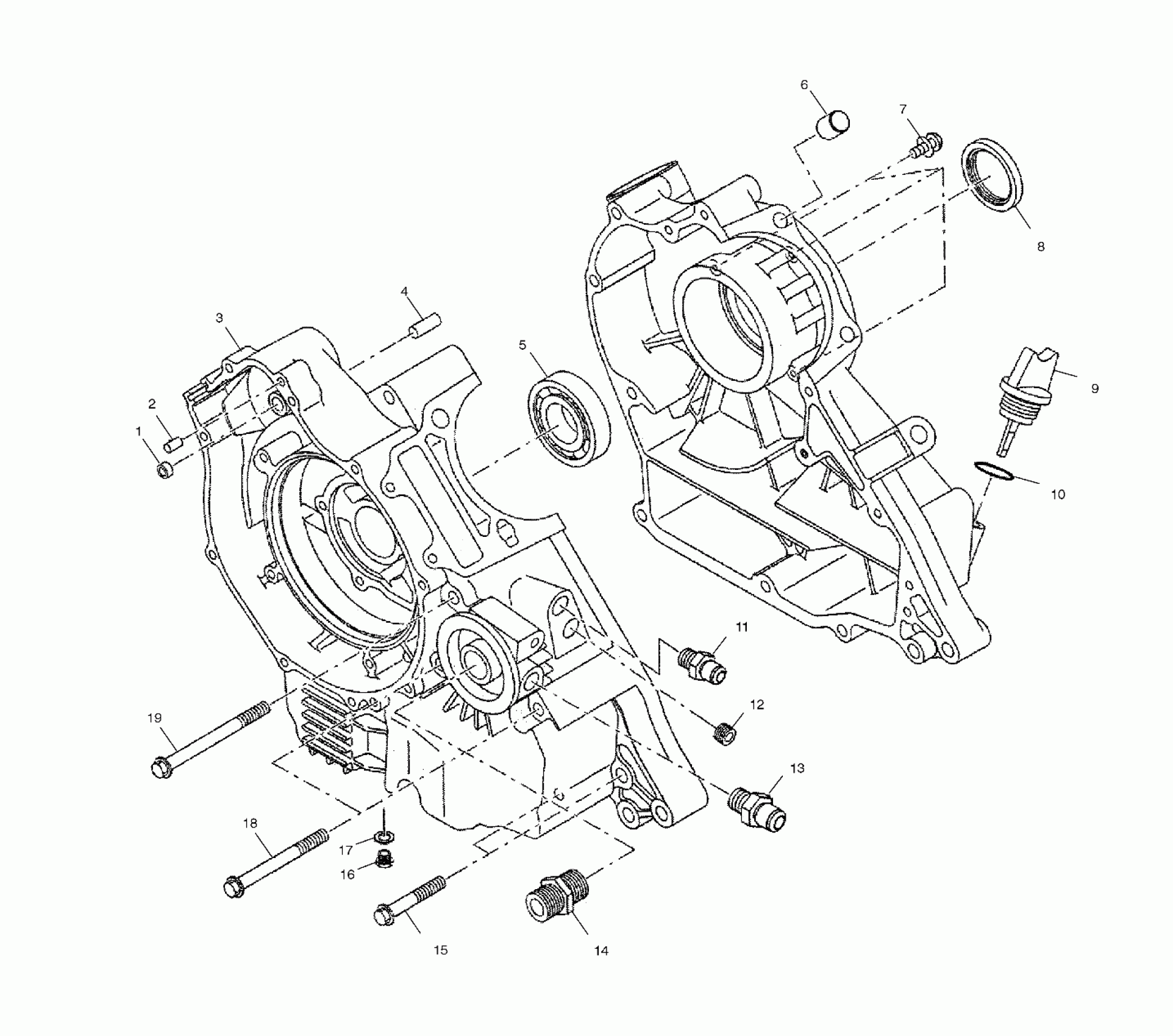

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC CRANKCASE - A02CB32AA/AB/FC (4970107010C12) Diagram

#

Description
Price

1

BUSHING, STARTER

3083669

Unavailable

2

Pin, Dowel

3086741

Unavailable

3

Asm., Crankcase (Incl. 1-4,8,12,15,18,19) (Incl. 1-4,8,12,15,18,19)

3087115

Unavailable

4

Pin, Dowel

3087116

$1.49

5

Bearing, Ball

3086395

Unavailable

6

Pin, Straight

3084838

Unavailable

7

Screw and Washer

3084205

$3.99

8

SEAL, OIL

3084839

$27.99

9

Gauge, Oil

3087064

Unavailable

10

O-Ring

3087065

$6.39

11

Union

3087066

$39.99

12

Plug

3086397

Unavailable

13

Union

3087067

$22.23

14

Union, Oil Pump

3084849

Unavailable

15

Bolt, Flange

3086398

Unavailable

16

PLUG

3086749

Unavailable

17

GASKET

3082956

$4.84

18

Bolt, Flange

3087117

Unavailable

19

Bolt, Flange

3086399

$9.59
