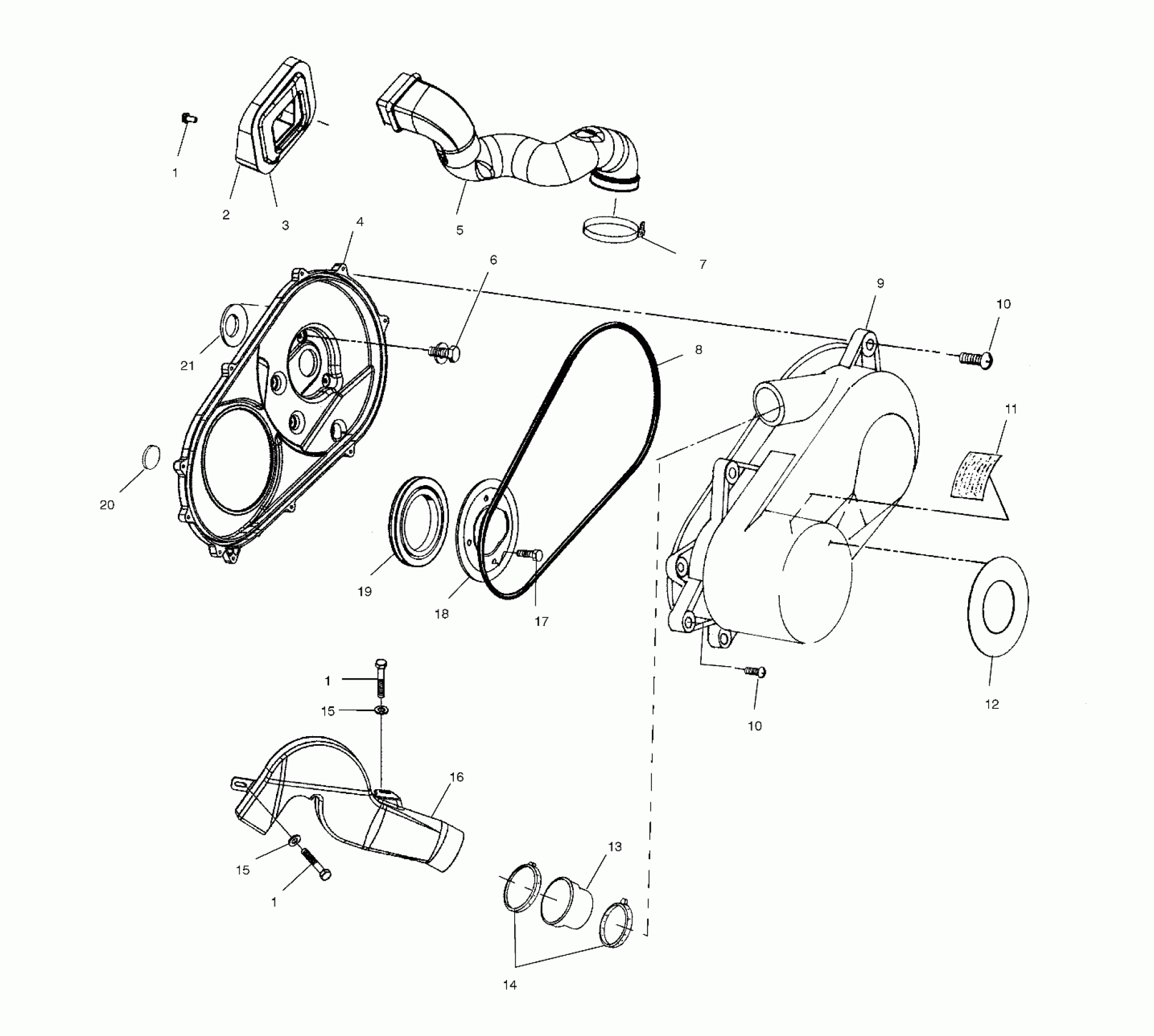

Polaris 325 MAGNUM 2X4 HDS - A02CB32FC CLUTCH COVER - A02CB32AA/AB/FC (4970107010B13) Diagram

#

Description
Price

1

SCREW

7517386

$1.49

1

SCREW

7517386

$1.49

1

SCREW

7517386

$1.49

2

Foam, Clutch Air Inlet

2632116

$54.99

3

Plate, Backing

5433453

Unavailable

4

Kit, Clutch Cover, Inner

2201956

Unavailable

5

Duct, Inlet

5433363

Unavailable

6

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

7

CLAMP, NARROW BAND

7080909

$7.99

8

Seal, Clutch Cover, Outer

5521578

Unavailable

9

Cover, Clutch, Outer

5433451-328

$178.08

10

SCREW

7512094

$1.59

10

SCREW

7512094

$1.59

11

Decal, Warning, Clutch Cover

7078689

Unavailable

12

Decal, "Automatic Transmission"

7074782

Unavailable

13

Boot, Duct

5411489

Unavailable

14

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

15

Washer, Flat

7558301

$1.49

15

Washer, Flat

7558301

$1.49

16

Duct, Air Outlet

5434213

Unavailable

17

SCREW AND WASHER (SEE CRANKCASE PG. C12, REF. 7)

-------

Unavailable

18

Bracket, Clutch Seal

5242046-067

$34.74

19

Seal, Cover Case

5410575

Unavailable

20

Stopper, Inner Clutch Cover

5411795

Unavailable

21

Seal, Clutch Cover

5411901

Unavailable
