- 325 MAGNUM 2X4 HDS - A01CB32FC
SWING ARM/REAR GEARCASE MOUNTING - A01CB32AA (4963966396C009)

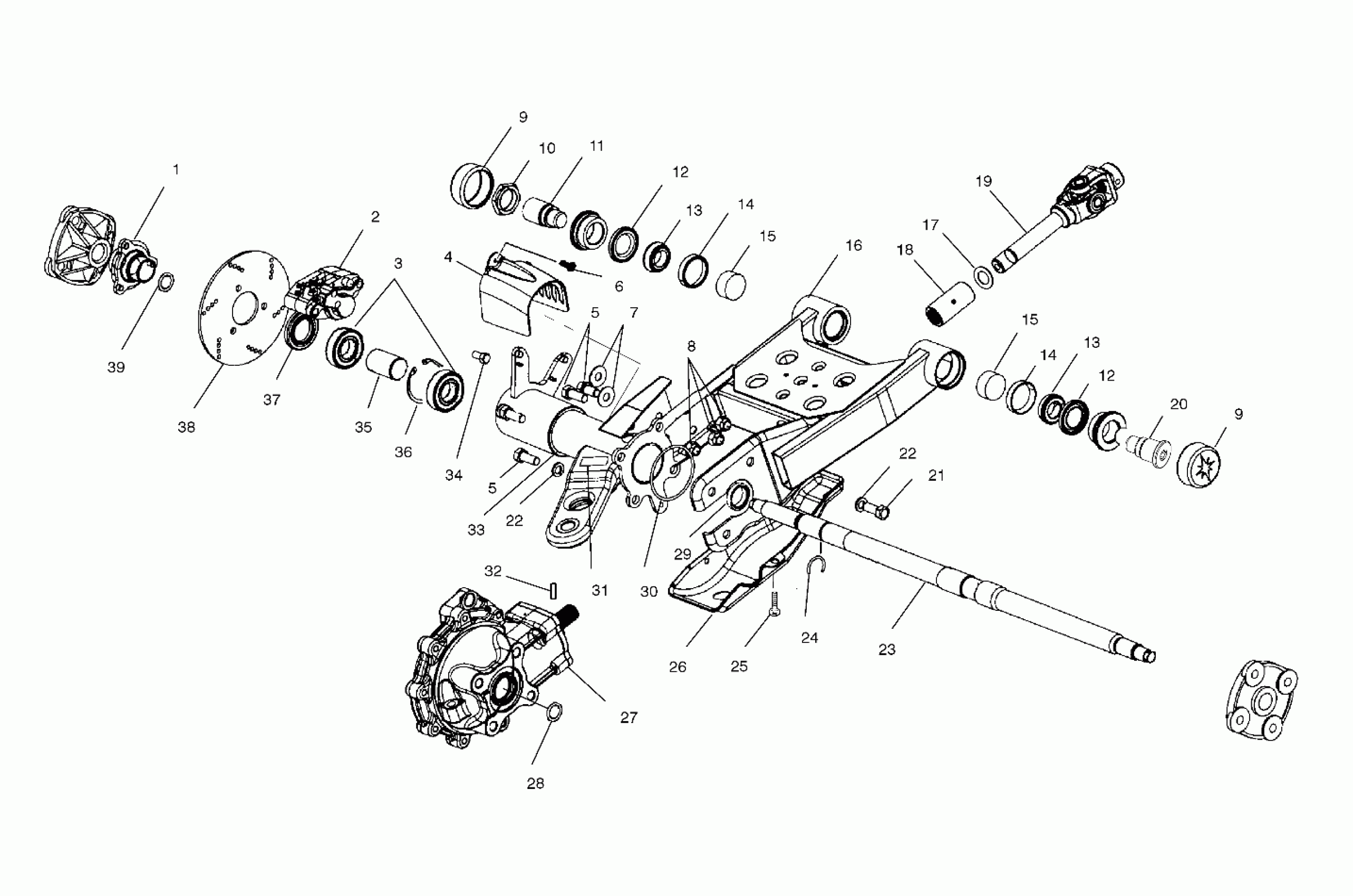

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC SWING ARM/REAR GEARCASE MOUNTING - A01CB32AA (4963966396C009) Diagram
#
1
HUB,BRAKE DISC,MACH
5132152
Unavailable
2
Asm., Rear Brake Caliper (See Rear Brake Pg B14, Ref. 4)
-------
Unavailable
3
BEARING,BALL,DBL.SEAL
3513523
$31.99
4
SHIELD-BRAKE LINE,REAR
5411653
$7.43
5
Bolt
7517604
Unavailable
5
Bolt
7517604
Unavailable
6
SCREW(10)
7512084
$1.49
7
WASHER(10)
7555721
$1.49
8
NUT FLEX,(10)
7542703
Unavailable
9
CAP,SWINGARM PIVOT
5411532
Unavailable
9
CAP,SWINGARM PIVOT
5411532
Unavailable
10
NUT,JAM,SWINGARMPIVOT
5131863
Unavailable
11
PIVOT,SWINGARM,THREADED
5131864
Unavailable
12
SEAL,SWINGARM PIVOT
3610072
Unavailable
12
SEAL,SWINGARM PIVOT
3610072
Unavailable
13
BRG,TAPER.ROLL.CONE
3554506
$31.99
13
BRG,TAPER.ROLL.CONE
3554506
$31.99
14
BRG,TAPER,ROLL CUP
3554507
$31.99
14
BRG,TAPER,ROLL CUP
3554507
$31.99
15
SEAL-SWINGARM PIVOT
5411602
Unavailable
15
SEAL-SWINGARM PIVOT
5411602
Unavailable
16
SWINGARM,ASM. (Incl. 14,15)
1541577
$243.16
17
O-RING
5411092
$1.60
18
ZERK,FITTING,THREADED(10)
7080433
$1.49
18
COUPLING-PROP SHAFT,GREASED
5132201
$59.99
19
PROPSHAFT ASM,REAR
1380137
$204.99
20
PIVOT-SWINGARM,RH
5132683
Unavailable
21
BOLT-1/2-13X1 1/4 HXHD GR5-Z
7517585
$4.79
22
LOCK WASHER(10)
7553201
$3.99
22
LOCK WASHER(10)
7553201
$3.99
23
AXLE,REAR
5131862
$259.59
24
RING,RETAINING
7710482
Unavailable
25
Screw
7517612
Unavailable
26
SKID PLATE,REAR
1012881
$58.39
26
PLATE-SKID,REAR HOUSING,BLK
5242851-067
$19.83
26
PAD-RUBBER
5811716
Unavailable
27
ASM., GEARCASE, REAR (See Rear Housing Pg. C7 for Details)
-------
Unavailable
28
O-Ring
5411531
Unavailable
29
COLLAR,R.AXLE LOCK
5131930
Unavailable
30
O-Ring
5411707
Unavailable
31
DECAL, HITCH Substituted by 7078261
7072533
Unavailable
32
PIN-SPRING,5/16 X 1 5/8-Y
7661913
$3.99
33
AXLE TUBE,WELD,LH,BLK
1013193-067
Unavailable
34
BOLT(10)
7515481
$2.63
35
SPACER-BEARING
5132075
Unavailable
36
RING,RETAINER,INT.
7710471
$13.59
37
SEAL,REAR AXLE
3610071
$15.99
38
DISC,BRK,7.00 OD,.188 THK
5243678
Unavailable
39
O-RING
5411092
$1.60
