Description

Price

1

Pin

1930860

Unavailable

1

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer and Pin)

2201189

$31.75

1

SPACER,PAD

1910339

Unavailable

2

SCREW CAP(10)

7515406

$7.19

3

WASHER(10)

7555806

$1.49

4

BLEEDER REPLACEMENT,KIT

2201428

$27.99

4

PISTON-RR CALIPER,DH2P

2201467

$89.03

4

Kit, Caliper Seal

2201385

$64.75

4

CALIPER,WW,DH2P,AFT,ASM.

1910449

$250.96

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

6

Line, Hand Brake, Front (See Controls-Master Cylinder/Brake Line Pg. B7, Ref 8)

-------

Unavailable

7

LINE-BRAKE,FT M/C TO RR,SRS

1910477

Unavailable

7

LINE-BRAKE,FT M/C TO RR,SRS

1910477

Unavailable

8

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

9

SCREW,(10)

7517386

$1.49

9

SCREW,(10)

7517386

$1.49

10

SCREW(10)

7512084

$1.49

11

CLAMP-BRAKE LINE

5434041

Unavailable

12

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

13

CLIP-RETAINING,DUAL .250" LINE

7670126

$4.79

14

BOLT-BANJO,10MMX1.00

1910499

$5.59

14

BOLT-BANJO,10MMX1.00

1910499

$5.59

15

NUT LOCK(10)

7542403

$3.99

16

NUT(10)

7542153

$1.59

17

RESERVOIR ASM,R.BRAKE

1930854

$35.99

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

HOSE-RESERVOIR,HB

1910331

$4.95

19

HOSE-RESERVOIR,HB

1910331

$4.95

20

BOLT(10)

7512240

$3.99

20

BOLT(10)

7512240

$3.99

20

BOLT(10)

7512240

$3.99

21

MT,PIVOT,R.BRAKE,BLK.

1012753-067

Unavailable

22

NUT-LOCK(10)

7542122

$1.49

22

NUT-LOCK(10)

7542122

$1.49

23

WASHER(10)

7558301

$1.49

23

WASHER(10)

7558301

$1.49

24

BRAKE ROD,HB,PVT,BLK

1012752-067

Unavailable

25

WASHER(10)

7555919

$4.99

25

WASHER(10)

7555919

$4.99

26

COTTER PIN(10)

7661401

$1.49

27

WASHER,SPRING

7556090

$2.63

28

BUSHING-PEDAL PIVOT

5433189

$3.99

28

BUSHING-PEDAL PIVOT

5433189

$3.99

29

SCREW(10)

7515158

$4.79

30

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

31

SPRING-TORSION,BRAKE

7041750

$8.79

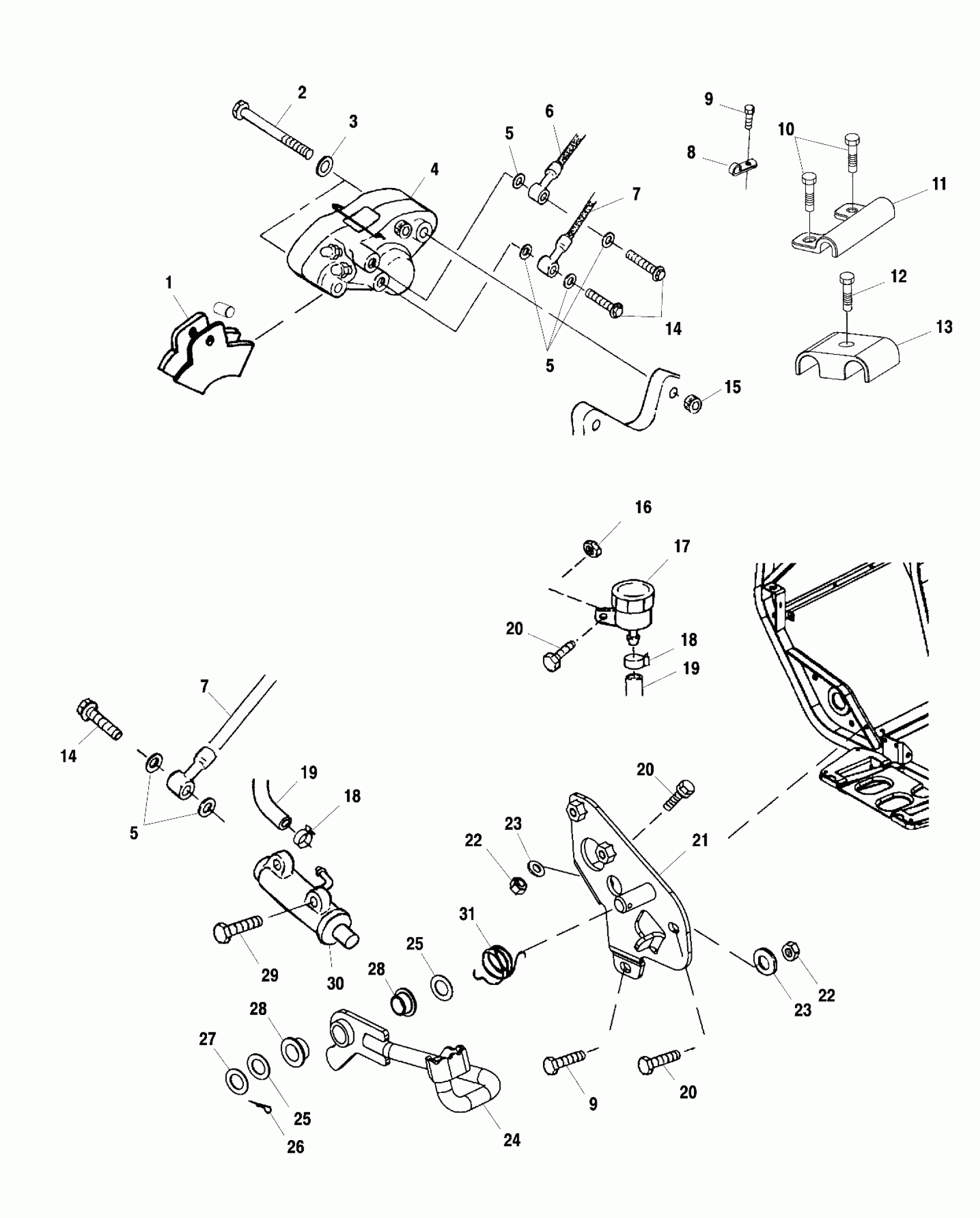

Polaris 325 MAGNUM 2X4 HDS - A01CB32FC REAR BRAKE - A01CB32AA (4963966396B013) Diagram

Pin

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer and Pin)

SPACER,PAD

SCREW CAP(10)

WASHER(10)

BLEEDER REPLACEMENT,KIT

PISTON-RR CALIPER,DH2P

Kit, Caliper Seal

CALIPER,WW,DH2P,AFT,ASM.

Seal

Seal

Seal

Line, Hand Brake, Front (See Controls-Master Cylinder/Brake Line Pg. B7, Ref 8)

LINE-BRAKE,FT M/C TO RR,SRS

LINE-BRAKE,FT M/C TO RR,SRS

CLAMP,RUBBER-COATED,.562(10)

SCREW,(10)

SCREW,(10)

SCREW(10)

CLAMP-BRAKE LINE

SCR-#10-24X3/4,PN/TR RD-TORX-Y

CLIP-RETAINING,DUAL .250" LINE

BOLT-BANJO,10MMX1.00

BOLT-BANJO,10MMX1.00

NUT LOCK(10)

NUT(10)

RESERVOIR ASM,R.BRAKE

HOSE CLAMP, RED

HOSE CLAMP, RED

HOSE-RESERVOIR,HB

HOSE-RESERVOIR,HB

BOLT(10)

BOLT(10)

BOLT(10)

MT,PIVOT,R.BRAKE,BLK.

NUT-LOCK(10)

NUT-LOCK(10)

WASHER(10)

WASHER(10)

BRAKE ROD,HB,PVT,BLK

WASHER(10)

WASHER(10)

COTTER PIN(10)

WASHER,SPRING

BUSHING-PEDAL PIVOT

BUSHING-PEDAL PIVOT

SCREW(10)

BRAKE MSTR CYL,FOOT,BANJO

SPRING-TORSION,BRAKE
